HYDROSTATIC DRIVE SYSTEM
5-13
Toro TITAN 2009-2013 Service Manual
5

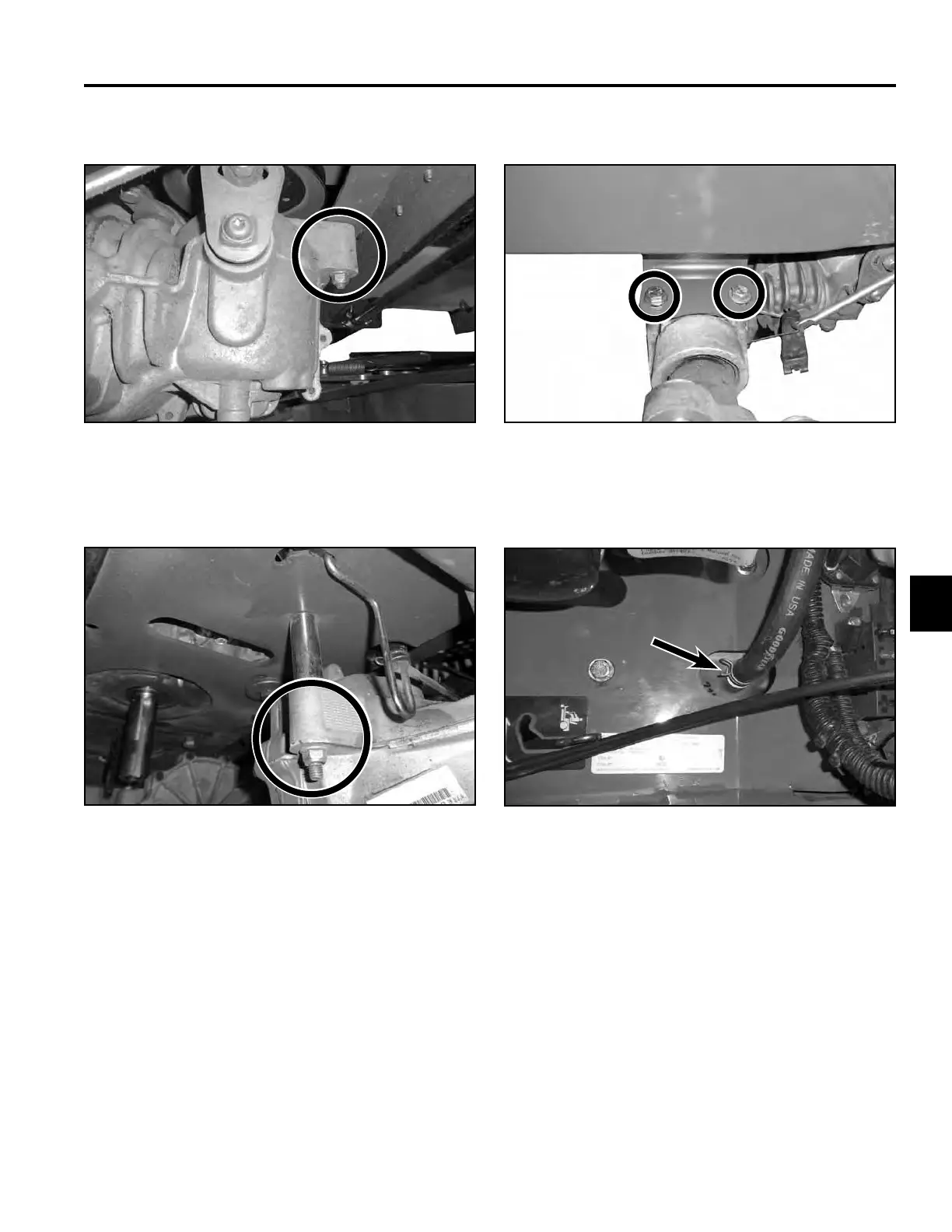

2nd - Torque the (1) front hydro mount fastener to
specication – 17 ft-lbs. (23 Nm) (Fig. 085).
4th – Torque the (2) outside hydro mount fasteners
to specication – 17 ft-lbs. (23 Nm) (Fig. 087).
Fig. 085 PICT-2050
3rd – Torque the (1) rear hydro mount fastener to
specication – 17 ft-lbs. (23 Nm) (Fig. 086).
Fig. 086 PICT-2051
Fig. 087 PICT-2049
5. Connect the hydro reservoir hoses at the hydro
tting (Fig. 088).
Fig. 088 PICT-2047
