22
Introduction
TV back panel connections
TV back panel connections
For explanations of cable types and connections, see page 102.

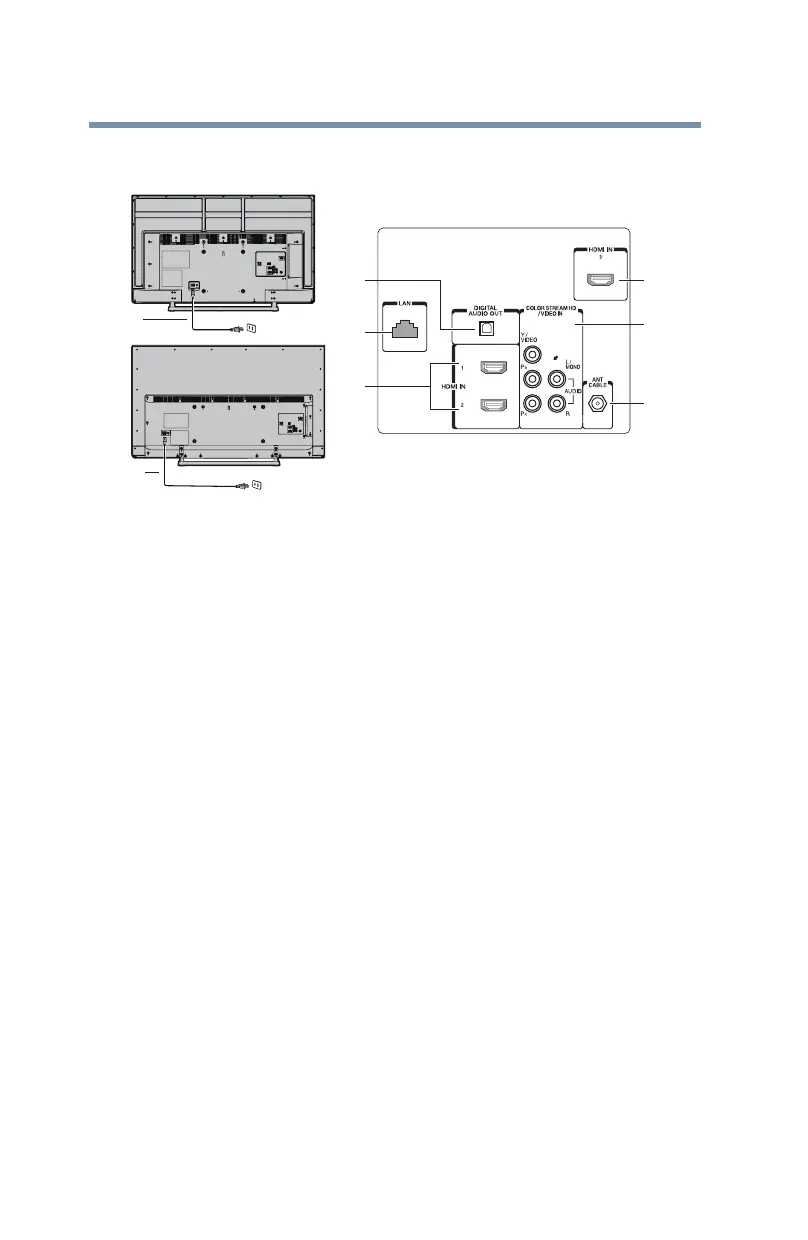

(Sample Illustration) 40/50L3400U - Back panel connections
1 ANT/CABLE—Antenna input that supports analog (NTSC)
and digital (ATSC) off-air antenna signals and analog and
digital cable TV (QAM) signals.
2 ColorStream
TM
HD/ Video IN—High-resolution component
video input and shared composite video input, see
“DynaLight
TM
” on page 102.
3 HDMI
®
IN—High-DenitionMultimediaInterfaceinput
receives digital audio and uncompressed digital video from an
HDMI
®
device or uncompressed digital video from a DVI
device. HDMI
®
connection is necessary to receive 1080p
signals.
4 Digital Audio out— Optical audio output in Dolby
®
Digital or
PCM (pulse-code modulation) format for connecting an
external Dolby
®
Digitaldecoder,amplier,orhometheater
system with optical audio input.
5 LAN IN—Connects the TV to your home network.
6 Two HDMI
®
IN—High-DenitionMultimediaInterfaceinput
receives digital audio and uncompressed digital video from an
HDMI
®
device or uncompressed digital video from a DVI
device. HDMI
®
connection is necessary to receive 1080p
signals.
7 Power Cord— Plug one end of the power cord into the jack on
the back of the unit, and the other end into a live electrical
outlet.
1
2
3
6
5
4
Power Cord
Power Cord
7
7
