58

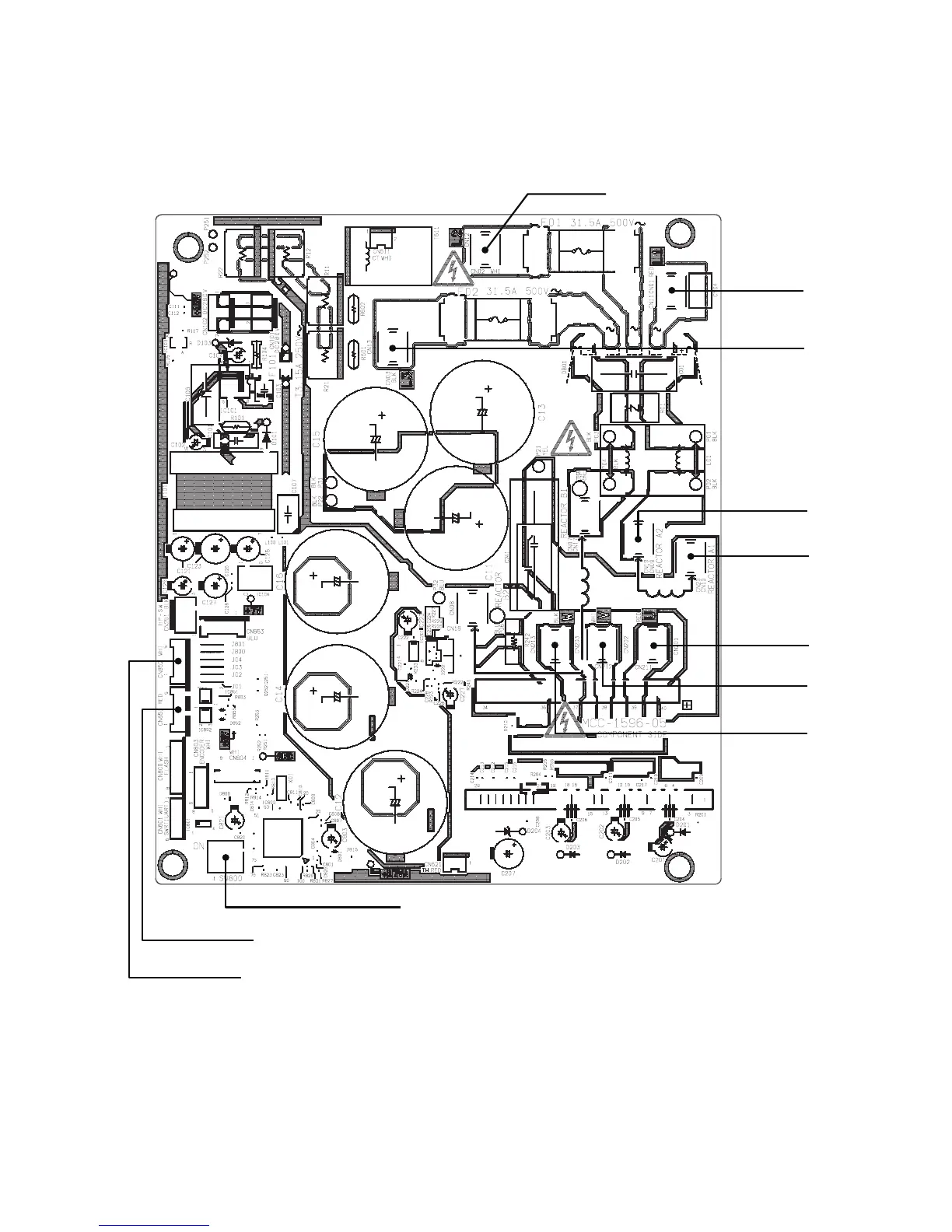

2-8-2. Inverter P.C. board for compressor (MCC-1596) A3-IPDU
SW800 For inverter address setting
CN851
UART communication
CN852
UART communication
CN02
CN01
CN03
CN211
CN212
CN213
Power supply
input L2
Power supply
input L1
Power supply
input L3
Compressor
output U-phase
CN10
Compressor
output V-phase
CN09
Reactor connecting
terminal
Reactor connecting
terminal
Compressor
output W-phase
