Indoor Unit
CAUTION
MMU-AP007YH, AP012YH type air conditioners have no TC2 sensor.

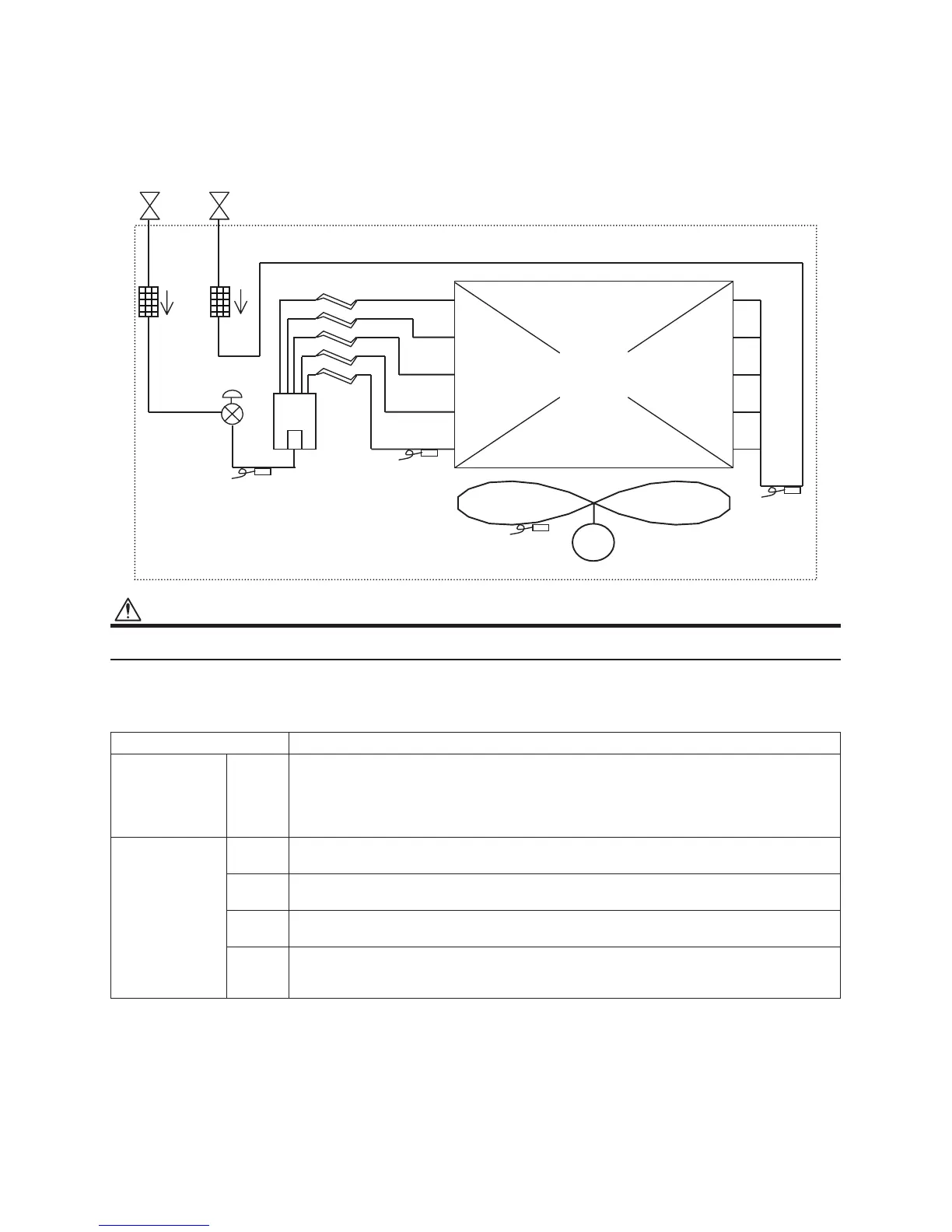

Explanation of functional parts in indoor unit
Functional part name Functional outline
Pulse Motor Valve
PMV
(Connector CN082 (6P): Blue)
1) Controls super heat in cooling operation
2) Controls under cool in heating operation
3) Recovers refrigerant oil in cooling operation
4) Recovers refrigerant oil in heating operation
Temp. Sensor
1.TA
(Connector CN104 (2P): Yellow)
1) Detects indoor suction temperature
2.TC1
(Connector CN100 (3P): Brown)
1) Controls PMV super heat in cooling operation
3.TC2
(Connector CN101 (2P): Black)
1) Controls PMV under cool in heating operation
4.TCJ
(Connector CN102 (2P): Red)
1) Controls PMV super heat in cooling operation
2) [MMU-AP007YH to AP012YH only] Controls PMV under cool in heating operation
Sensor
(TC2)
M
Fan
Fan motor
Sensor
(TCJ)
Sensor
(TC1)
Strainer
Liquid
side
Gas side
Capillary tube
Sensor
(TA)
Pulse Motor
Valve
(PMV)
Heat exchanger
at indoor side
