Toshiba Tecra M10 User Manual

2 Troubleshooting Procedures 2.16 Bridge media Slot Troubleshooting
2.16 Bridge media Slot Troubleshooting
This section describes how to determine if the computer's Bridge media functions are
functioning properly. Perform the steps below starting with Procedure 1 and continuing with
the other procedures as required.
Procedure 1: Check on Windows OS
Procedure 2: Connector Check and Replacement Check
Procedure 1 Check on Windows OS
Insert a Bridge media (SD memory card/SDIO card/Memory stick/Memory stick Pro/
xD Picture card/Multimedia card) into the slot. Check if the installed Windows recognizes
automatically the Bridge media and the data in the Bridge media can be read.
If the card is not recognized or data are not red, go to Procedure 2.
Procedure 2 Connector Check and Replacement Check

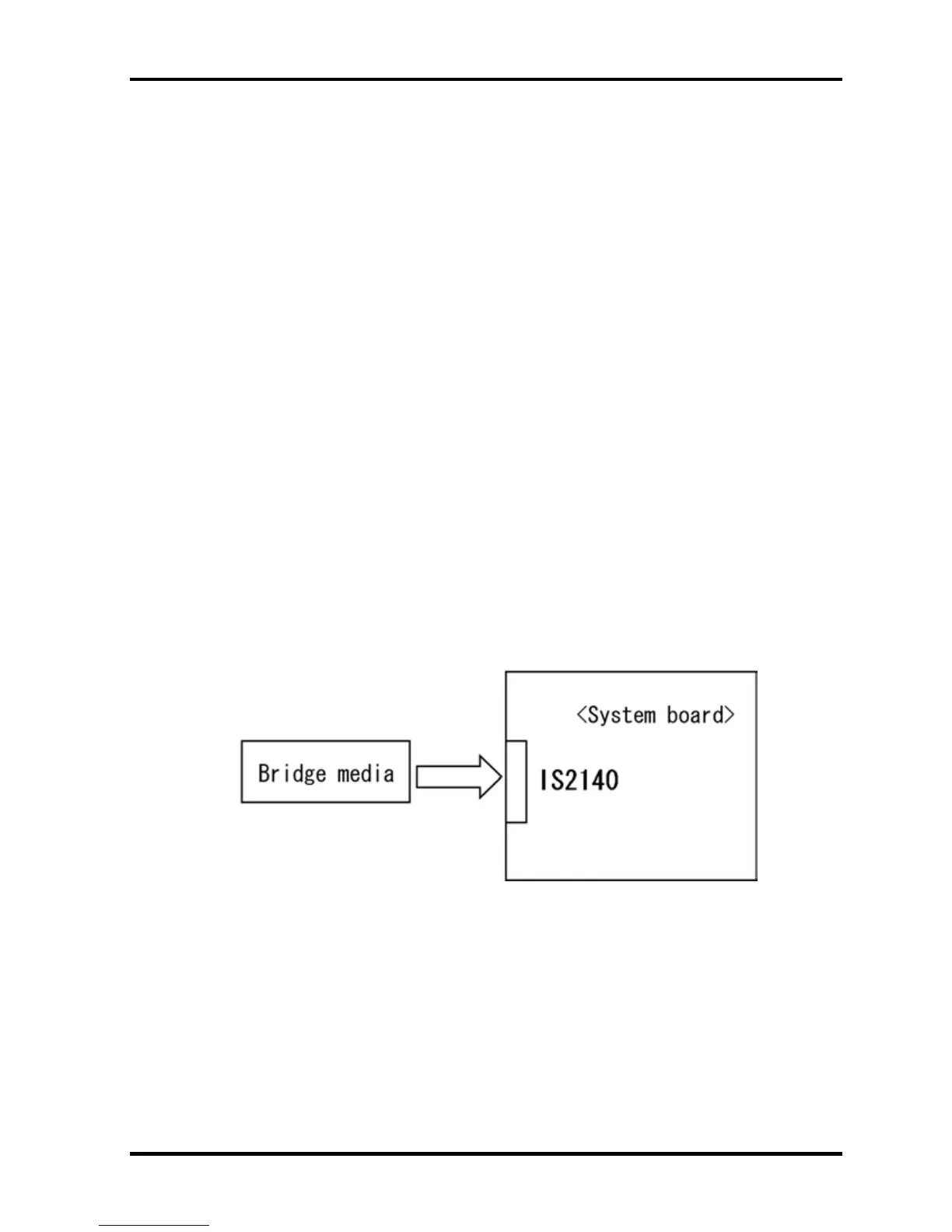

The Bridge media is connected to IS2140 on the system board.
Bridge media supports SD memory card/SDIO card/Memory stick/Memory stick Pro/
xD Picture card/Multimedia card.
Check 1 Bridge media and system board may be disconnected. Make sure the Bridge media
is firmly inserted to IS2140 on the system board. If not, insert it firmly. If the
Bridge media is still not functioning properly, perform Check 2.
Check 2 Bridge media may be faulty. Replace it with a new one following the step in
Chapter 4 Replacement Procedures. If the problem continues, perform Check 3.
Check 3 System board may be faulty. Replace it with a new one following the step in
Chapter 4 Replacement Procedures.
TECRA M10 Maintenance Manual (960-685) [CONFIDENTIAL] 2-61

Toshiba Tecra M10 Specifications

General

Tjunction	100 °C
Processor cache	2 MB
Processor cores	2
Processor model	T6570
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor socket	Socket 478
Processor codename	Penryn
Processing Die size	107 mm²
Processor frequency	2.1 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	35 W
Number of Processing Die Transistors	410 M
Motherboard chipset	Intel® GM45 Express
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	320 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD
Display diagonal	14.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Discrete graphics card model	Intel® GMA 4500MHD
Maximum graphics card memory	- GB
Type	PC
Modem speed	56 Kbit/s
Power supply type	AC
Power requirements	100-240V, 50/60Hz
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
DVD+R read speed	8 x
DVD-RAM read speed	5 x
DVD+R Double Layer read speed	6 x
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Operating system installed	Windows Vista Business
Sustainability certificates	ENERGY STAR
Battery capacity	5100 mAh
Number of battery cells	6
Charging port type	DC-in jack
USB 2.0 ports quantity	4
Parallel ports quantity	0
Product color	Silver
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
AC adapter power	75 W
AC adapter output current	5 A
AC adapter output voltage	15 V
Pointing device	Touchpad
Processor ARK ID	42841

Weight and Dimensions

Depth	245 mm
Width	336.8 mm
Weight	2440 g
Height (rear)	38.4 mm
Height (front)	36.4 mm
