Toshiba Tecra M10 User Manual

3 Tests and Diagnostics 3.9 Display Test
3.9 Display Test
To execute the Display Test, select 4 from the DIAGNOSTIC TEST MENU, press Enter
and follow the directions on the screen. Move the highlight bar to the subtest you want to
execute and press Enter.
Subtest 01 VRAM read/write for VGA
This subtest writes the constant data (AAAAh and 5555h) to the video RAM.
The data is read and compared to the original data.
Subtest 02 Gradation for VGA

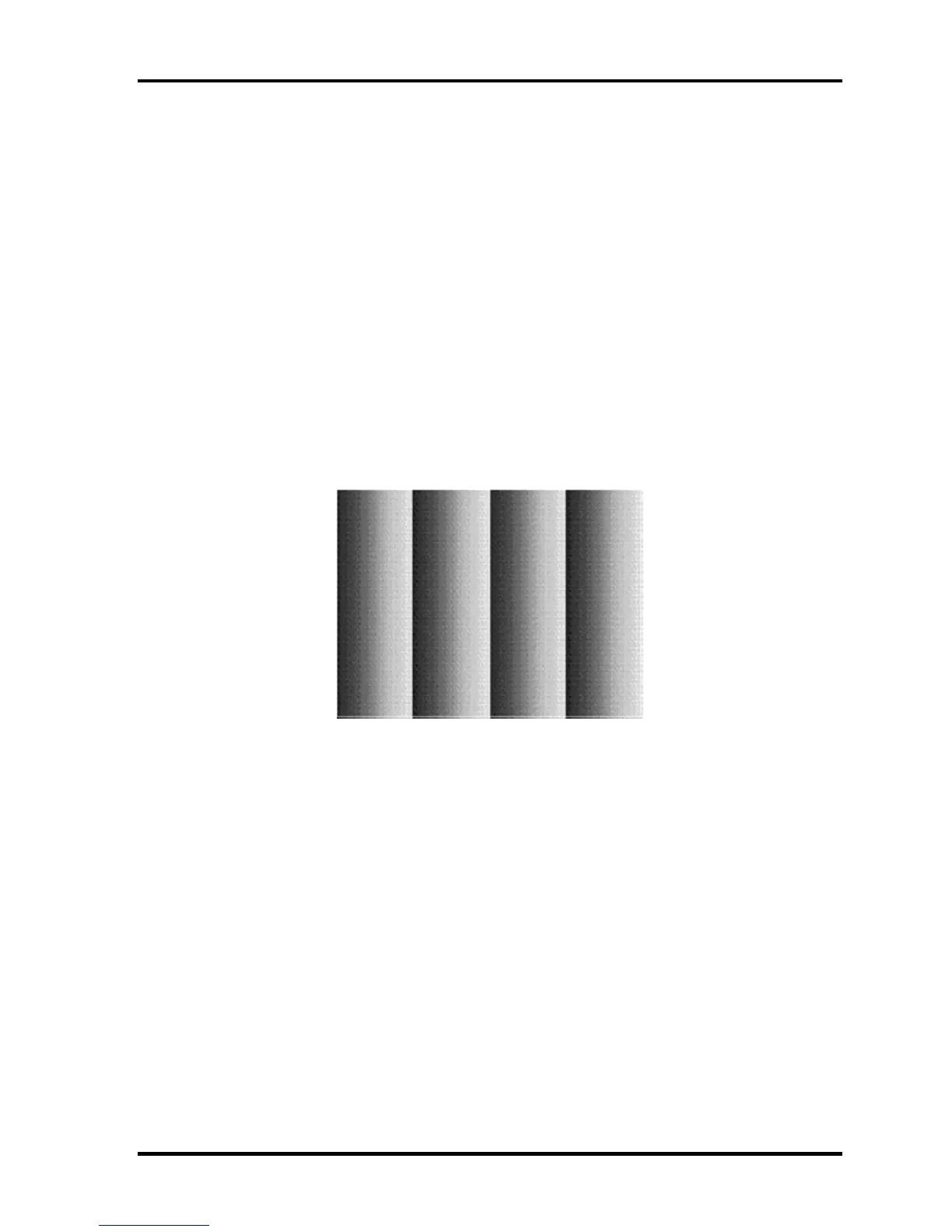

This subtest displays four colors: red, green, blue and white from left to right
across the screen from black to maximum brightness. The display below
appears on the screen, when this subtest is executed.
To exit this subtest and return to the DISPLAY TEST menu, press Enter.
Subtest 03 Gradation for LCD
This subtest displays bands of gradations for mixed colors, then for red, green,
and blue. Next, it displays eight solid colors full screen: red, semi-red, green,
semi-green, blue, semi-blue, white, and semi-white. Each color displays for
three seconds.
3-18 [CONFIDENTIAL] TECRA M10 Maintenance Manual (960-685)

Toshiba Tecra M10 Specifications

General

Tjunction	100 °C
Processor cache	2 MB
Processor cores	2
Processor model	T6570
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor socket	Socket 478
Processor codename	Penryn
Processing Die size	107 mm²
Processor frequency	2.1 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	35 W
Number of Processing Die Transistors	410 M
Motherboard chipset	Intel® GM45 Express
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	320 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD
Display diagonal	14.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Discrete graphics card model	Intel® GMA 4500MHD
Maximum graphics card memory	- GB
Type	PC
Modem speed	56 Kbit/s
Power supply type	AC
Power requirements	100-240V, 50/60Hz
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
DVD+R read speed	8 x
DVD-RAM read speed	5 x
DVD+R Double Layer read speed	6 x
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Operating system installed	Windows Vista Business
Sustainability certificates	ENERGY STAR
Battery capacity	5100 mAh
Number of battery cells	6
Charging port type	DC-in jack
USB 2.0 ports quantity	4
Parallel ports quantity	0
Product color	Silver
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
AC adapter power	75 W
AC adapter output current	5 A
AC adapter output voltage	15 V
Pointing device	Touchpad
Processor ARK ID	42841

Weight and Dimensions

Depth	245 mm
Width	336.8 mm
Weight	2440 g
Height (rear)	38.4 mm
Height (front)	36.4 mm
