EM-70
ENGINE MECHANICAL - Cylinck.r Block
CYLINDER BLOCK
COMPONENTS
r--- - -- - -- - -- - --Pi -ston R.ing
-
_ _ _____ -1'\ O >-- -- - - --'--- -- -op.;~io n Pin
Snap Ring
&--- - -- - - - - - Connecti ng Rod
Connecting Rod Bearing,-- -- - - ~
OIi Pump
Rear Oil
Seal
Retai ner
nnecting ~ c-- - - - - Oil Nozzle
od Bearing r Main Bearing Ii
GP" pper Thrust Washer
@
Connecting Rod Ca
Main Bearing Cap
e• ~~
• ~e
er Ma in Beanng ....
lower Thrust Washer-- --- -- -- -
U A2~S
ENGINE MECHANICAL Cylinder Block
EM-71

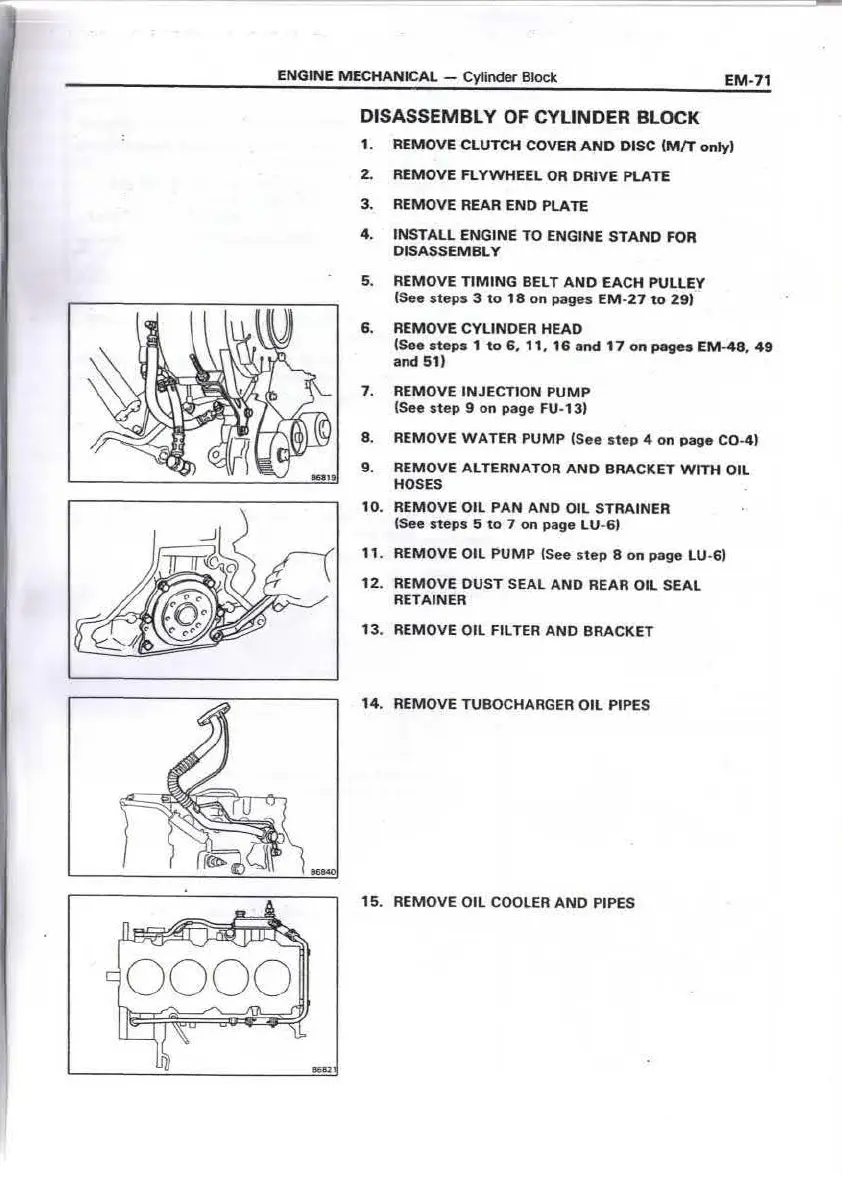

DISASSEMBLY OF CYLINDER BLOCK
1. REMOVE CLUTCH COVER AND DISC (M/T only)
2. REMOVE FLYWHEEL OR DRIVE PLATE
3. REMOVE REAR END PLATE
4. INSTAU ENGINE TO ENGINE STAND FOR
DISASSEMBLY
5. REMOVE TIMING BELT AND EACH PULLEY
(See steps 3 to 18 on pages EM -27 to 29f
6. REMOVE CYLINDER HEAD
(See steps 1 to 6, 11, 16 and 17 on pages EM-48 , 49
and 5 1)
7. REMOVE INJE CTI ON PUMP
(See st ep 9 on page FU-13)
8. REMOVE WATER PUMP (See step 4 on page C0 -4)
9. REMOVE ALTERNATOR AND BRACKET WITH OIL
HOSES
10. REMOVE OIL PAN AND OIL STRAINER
(See steps 5 to 7 on page LU -6I
11 . REMOVE OIL PUMP (See step 8 o n page LU-6)
12. REMOVE DUST SEAL AND REAR OIL SEAL
RETAINER
13 . REMOVE OIL FILTER AND BRACKET
14. REMOVE TUBOCHARGER OIL PIPES
15. REMOVE OIL COOLER A ND PIPES
To Next Page
