36
2007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS12031b

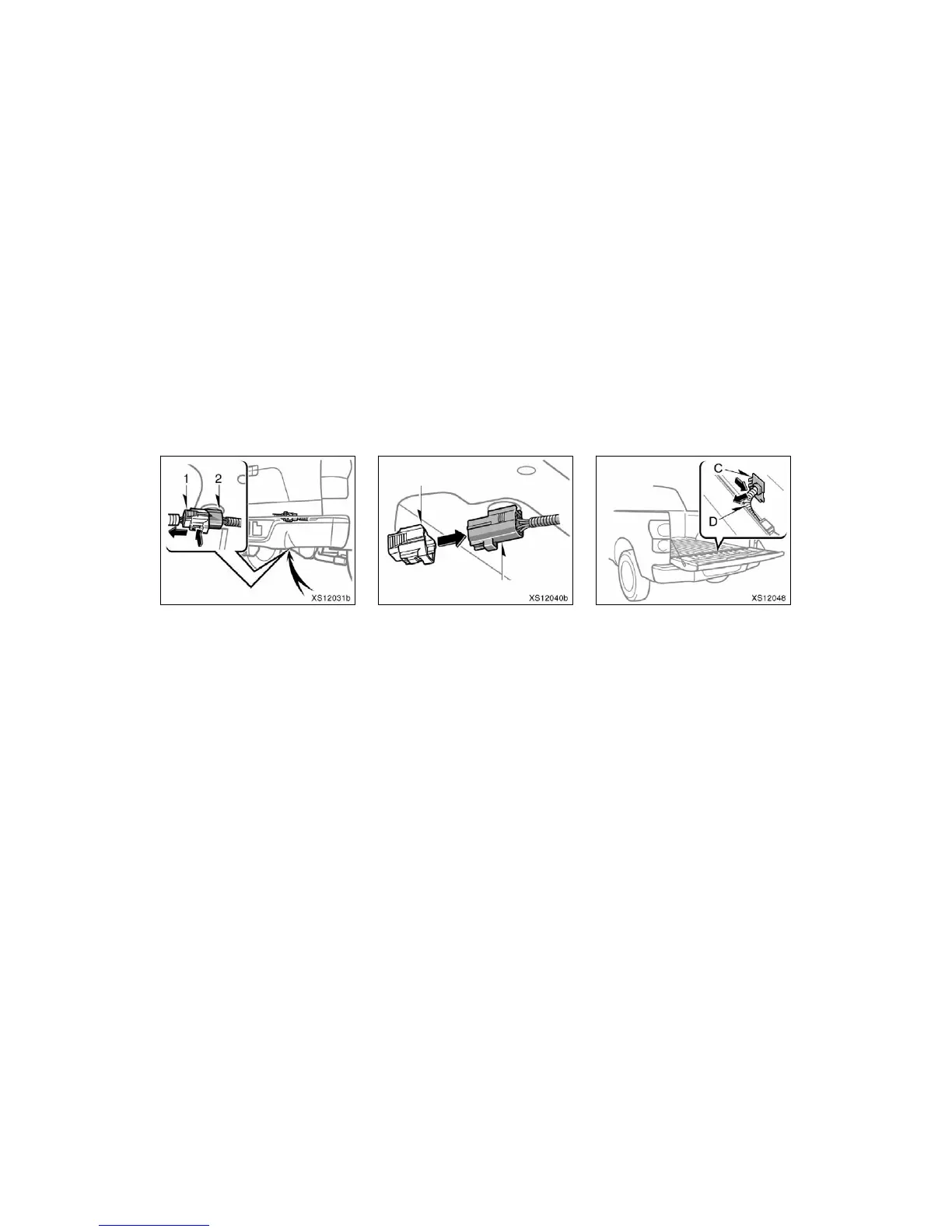

1. To disconnect the wire harness connec-
tors, press and hold the lock of the
connector 1 and pull apart. The con-
nectors are located on the vehicle body
frame, behind the bumper.
Connector 1—Rear view monitor
system camera wire
harness connector
(white)
Connector 2—Vehicle wire harness
connector (gray)
XS12040b
Connector cover B
Connector 2
2. Attach the connector cover B (white) to
the connector 2.
XS12048
3. Lower the tailgate. Remove the protec-
tor C located in the vehicle bed by
pressing the tabs and pulling the pro-
tector. Pull the wire harness D through
the hole.
C: Plastic wire protector
D: Rear view monitor system camera
wire harness
07 04.26
To Next Page
