Toyota 8FGCU25 User Manual

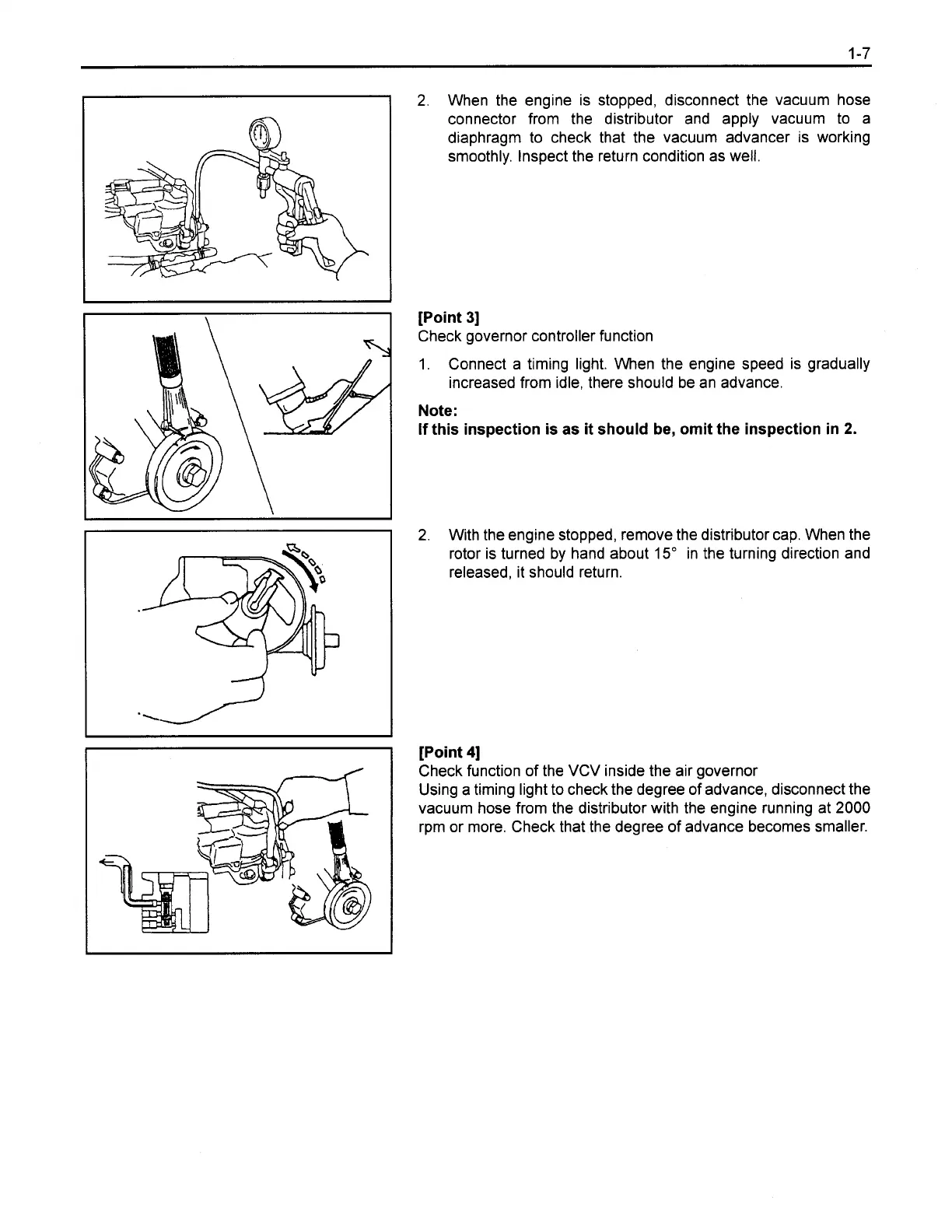

2.
When the engine is stopped, disconnect the vacuum hose
connector from the distributor and apply vacuum to a
diaphragm to check that the vacuum advancer is working
smoothly, Inspect the return condition as well.
[Point 31
Check governor controller function
1. Connect a timing light. When the engine speed is gradually
increased from idle, there should be an advance.
Note:
If this inspection is as it should be, omit the inspection in 2.
2.
With the engine stopped, remove the distributor cap. When the
rotor is turned by hand about
15" in the turning direction and
released, it should return.
[Point 41
Check function of the VCV inside the air governor
Using a timing light to check the degree of advance, disconnect the
vacuum hose from the distributor with the engine running at 2000
rpm or more. Check that the degree of advance becomes smaller.
4Y-E Repair
Section 1.1.1

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
