Toyota 8FGCU25 User Manual

Gear side
SST(1) Case side

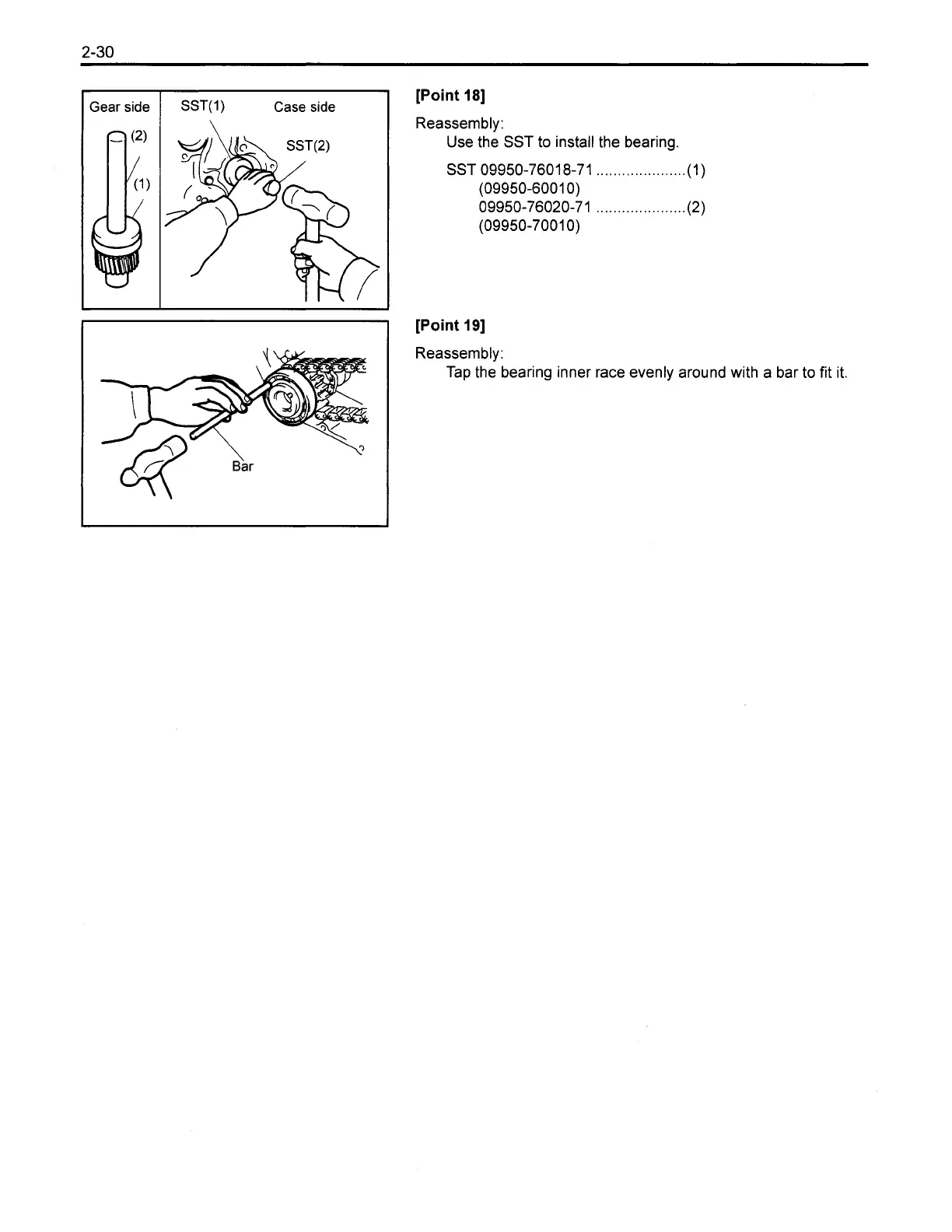

[Point 181
Reassembly:
Use the SST to install the bearing.
SST 09950-7601 8-71 ..................... (1)
(09950-6001 0)
09950-76020-71
..................... (2)
(09950-7001 0)
[Point 191
Reassembly:
Tap the bearing inner race evenly around with a bar to fit it.
4Y-E Repair
Section 1.1.2

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
