Toyota 8FGCU25 User Manual

1 [Point 131

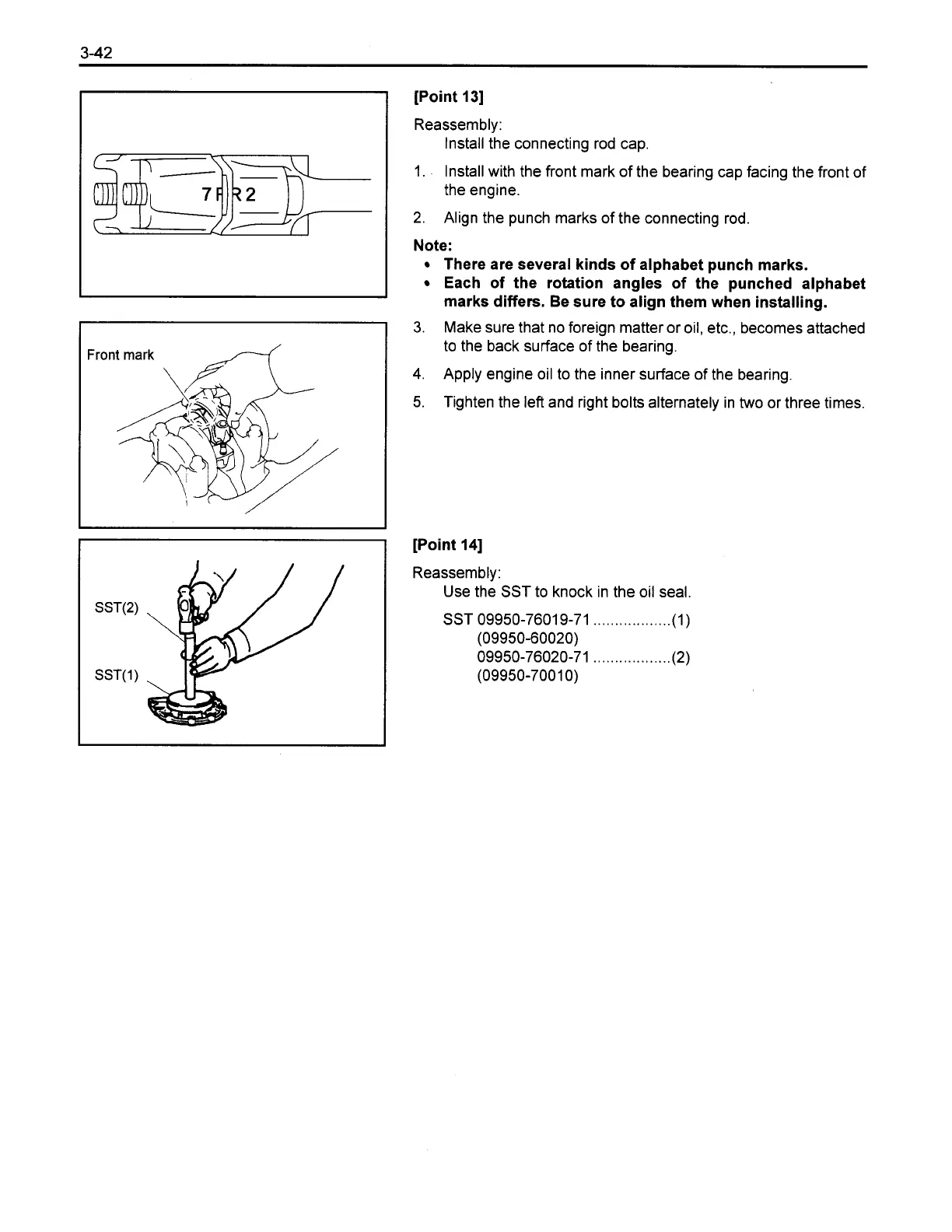

Reassembly:
Install the connecting rod cap
1.
Install with the front mark of the bearing cap facing the front of
the engine.
2.
Align the punch marks of the connecting rod.
Note:
There are several kinds of alphabet punch marks.
Each of the rotation angles of the punched alphabet
marks differs. Be sure to align them when installing.
3.
Make sure that no foreign matter or oil, etc., becomes attached
to the back surface of the bearing.
4. Apply engine oil to the inner surface of the bearing.
5. Tighten the left and right bolts alternately in two or three times.
[Point 141
Reassembly:
Use the SST to knock in the oil seal.
SST
09950-7601 9-71 . . . . . . . . . .. .......( 1 )
(09950-60020)
09950-76020-71
. . . .. .. . . .. .. . .. . . (2)
(09950-7001 0)
4Y-E Repair
Section 1.1.3

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
