Toyota 8FGCU25 User Manual

solenoid valve
Wrench
Idle adjusting screw

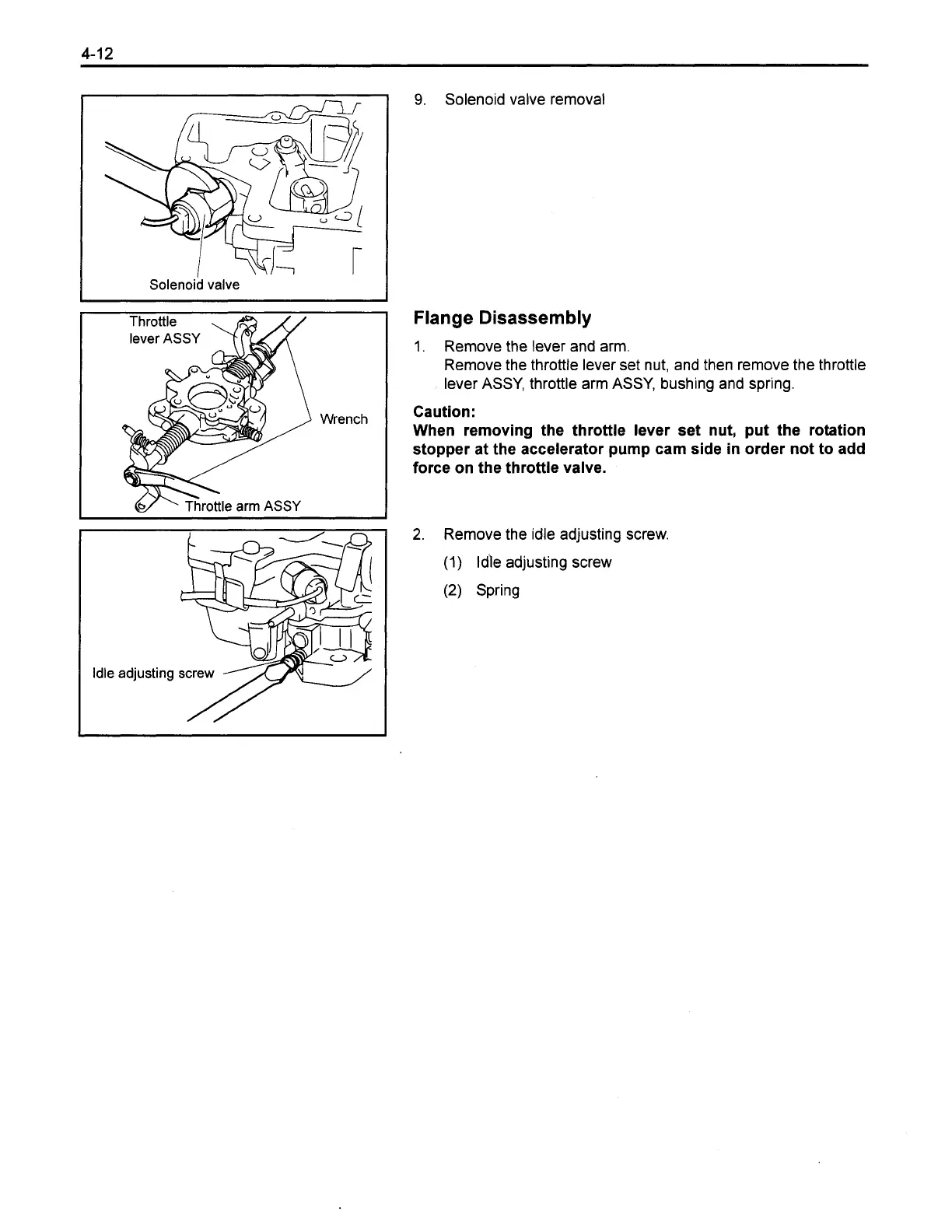

9. Solenoid valve removal
Flange Disassembly
1. Remove the lever and arm.
Remove the throttle lever set nut, and then remove the throttle
lever ASSY, throttle arm ASSY, bushing and spring.
Caution:
When removing the throttle lever set nut, put the rotation
stopper at the accelerator pump cam side in order not to add
force on the throttle valve.
2. Remove the idle adjusting screw.
(1) Idle adjusting screw
(2) Spring
4Y-E Repair
Section 1.1.4

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
