Toyota 8FGCU25 User Manual

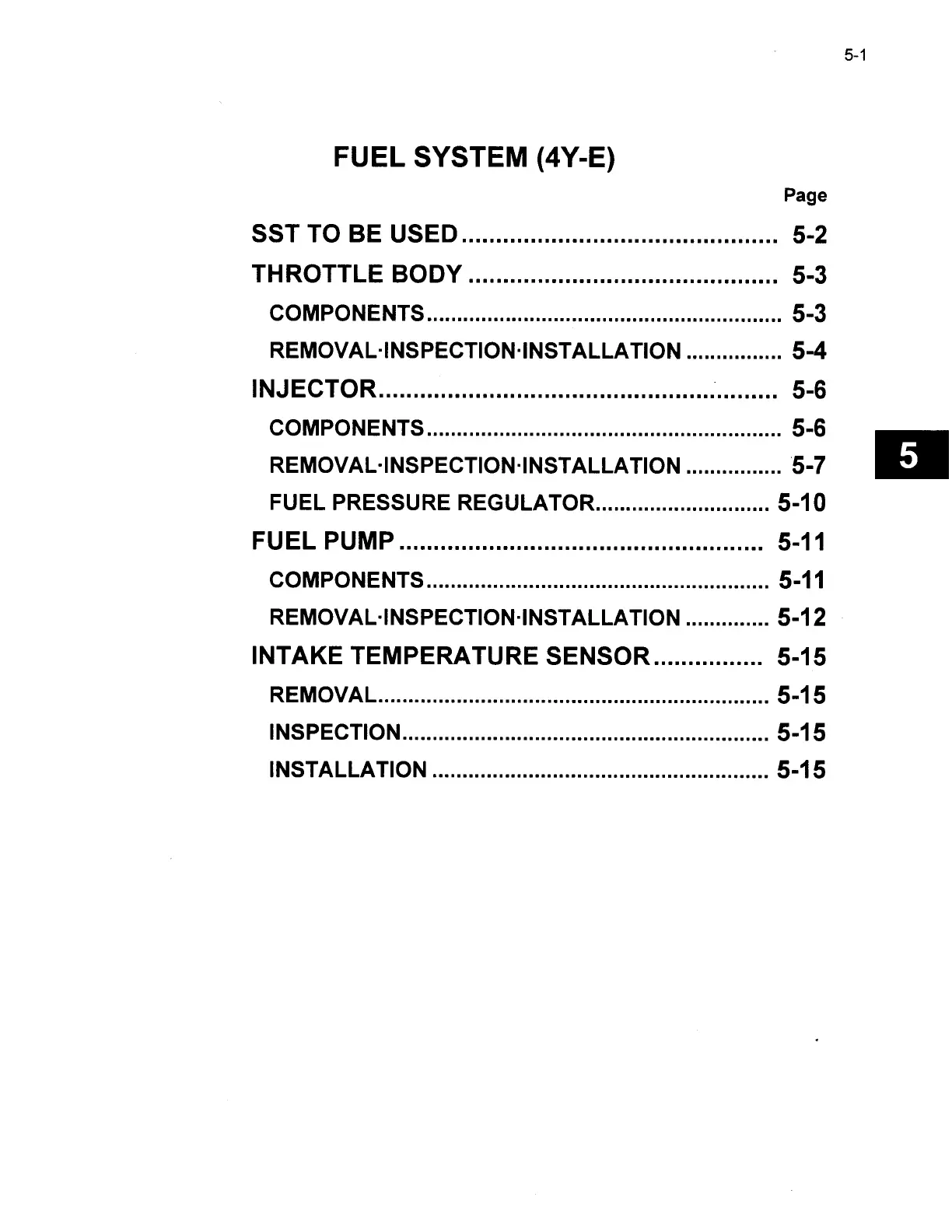

FUEL SYSTEM (4Y-E)
Page
SST TO BE USED .............................................. 5-2
THROTTLE BODY ............................................. 5-3
...........................................................
COMPONENTS 5-3
................
REMOVAL.INSPECTION~INSTALLATlON 5-4
..........................................................
INJECTOR 5-6
COMPONENTS
...........................................................
REMOVAL-INSPECTION-INSTALLATION ................ '5-7
.............................
FUEL PRESSURE REGULATOR 5-10
.....................................................
FUEL PUMP 5-11
COMPONENTS ......................................................... 5-11
REMOVAL.INSPECTION.INSTALLATlON .............. 5-12
................
INTAKE TEMPERATURE SENSOR 5-15
................................................................. REMOVAL 5-15
.............................................................
INSPECTION 5-15
........................................................
INSTALLATION 5-1 5
4Y-E Repair
Section 1.1.5

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
