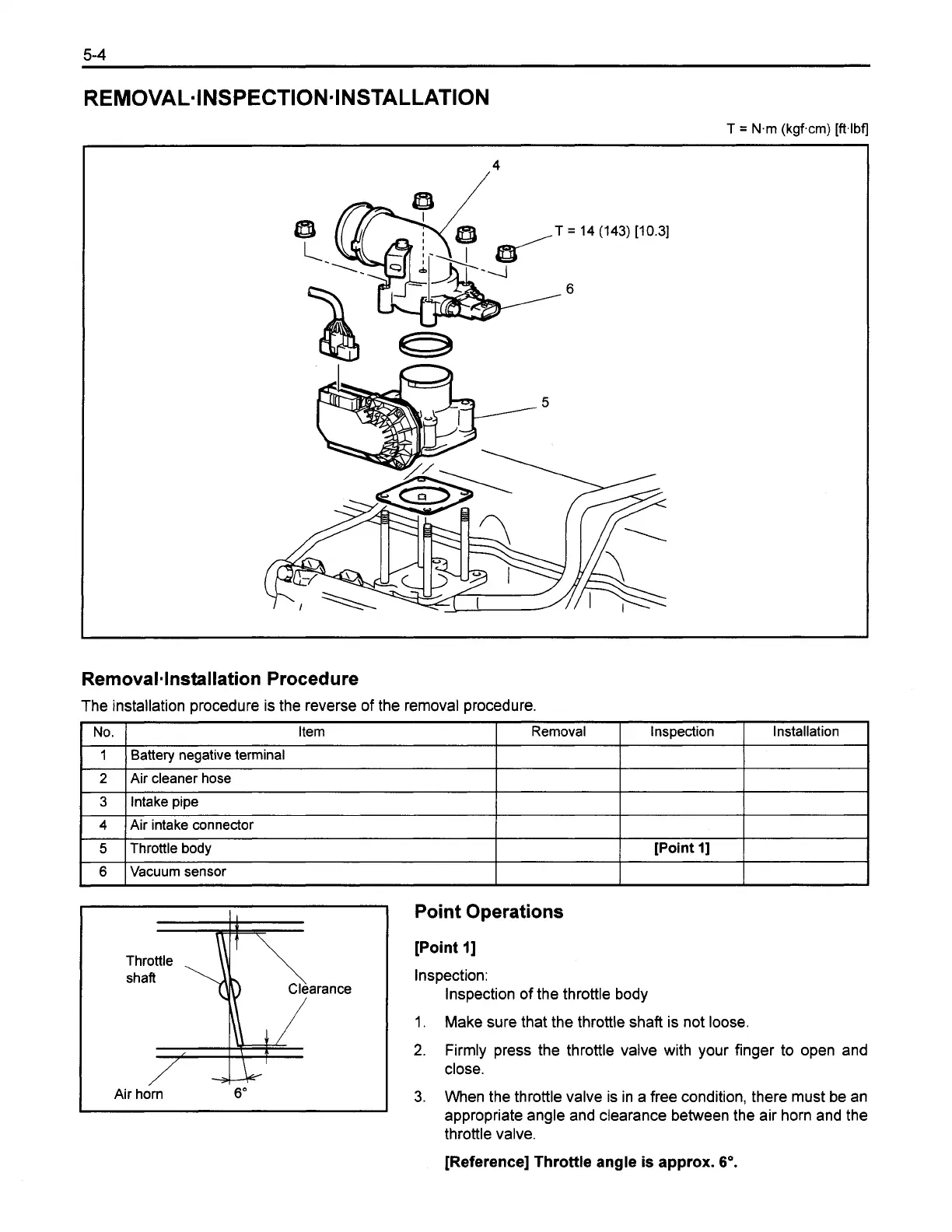

Removal~lnstallation Procedure
The installation procedure is the reverse of the removal procedure.
6 I Vacuum sensor
I
*
Air horn 6"
Installation
Point Operations
No.
1
2
3
4
5
[Point I]
Removal Item
Battery negative terminal
Air cleaner hose
Intake pipe
Air intake connector
Throttle body
Inspection:
lnspection of the throttle body
Inspection
[Point
I]
1. Make sure that the throttle shaft is not loose
2.
Firmly press the throttle valve with your finger to open and
close.
3. When the throttle valve is in a free condition, there must be an
appropriate angle and clearance between the air horn and the
throttle valve.
[Reference] Throttle angle is approx. 6".
4Y-E Repair
Section 1.1.5
