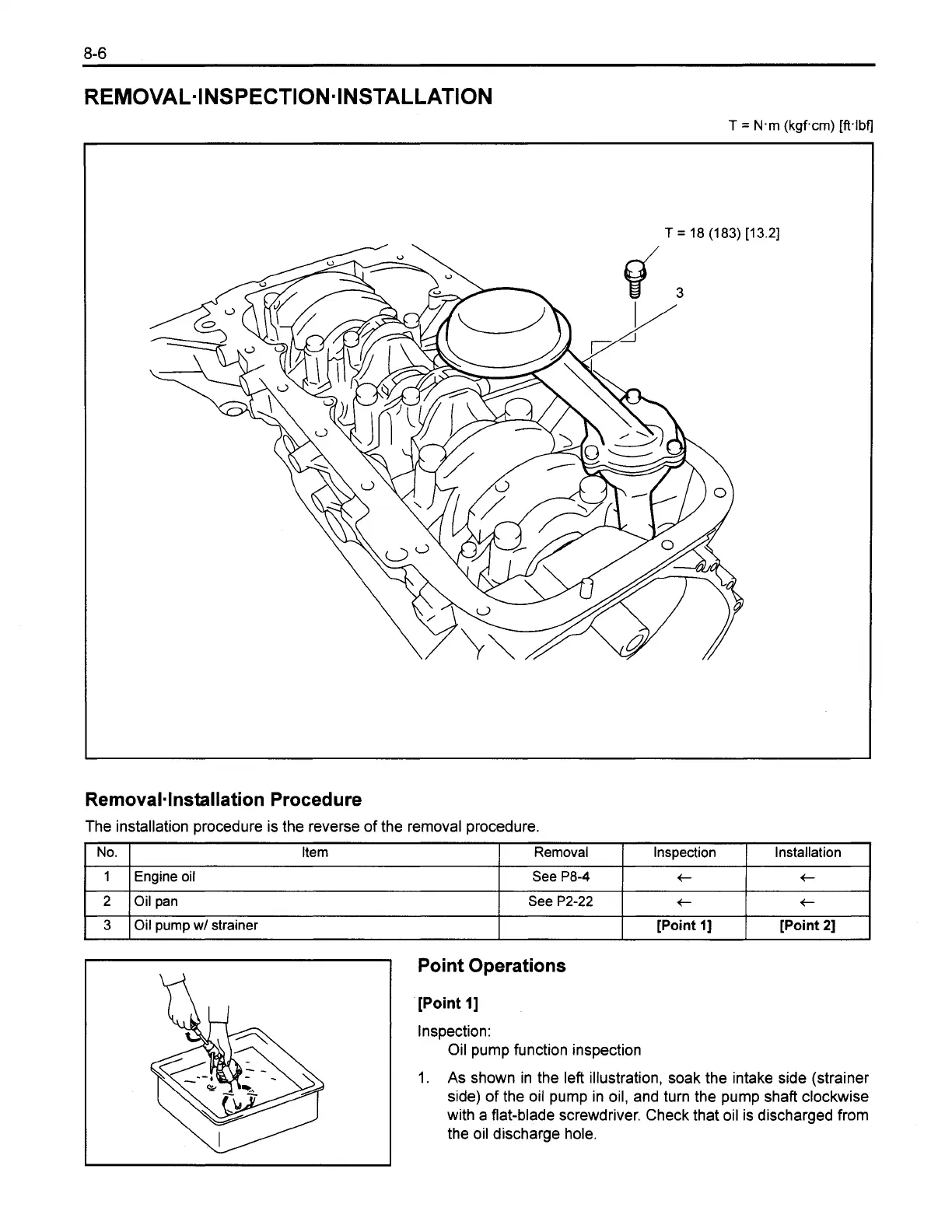

Removal.lnstallation Procedure
The installation procedure is the reverse of the removal procedure.
Point Operations
[Point I]
Inspection:
Oil pump function inspection
1.
As shown in the left illustration, soak the intake side (strainer
side) of the oil pump in oil, and turn the pump shaft clockwise
with a flat-blade screwdriver. Check that oil is discharged from
the oil discharge hole.
No.
1
2
3
Item
Engine oil
Oil pan
Oil pump
w/ strainer
Installation
t
t
[Point 21
Removal
See
P8-4
See P2-22
Inspection
t
t
[Point I]
4Y-E Repair
Section 1.1.8

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
