T
=
N.m
(kgf
cm) [ftdbfj

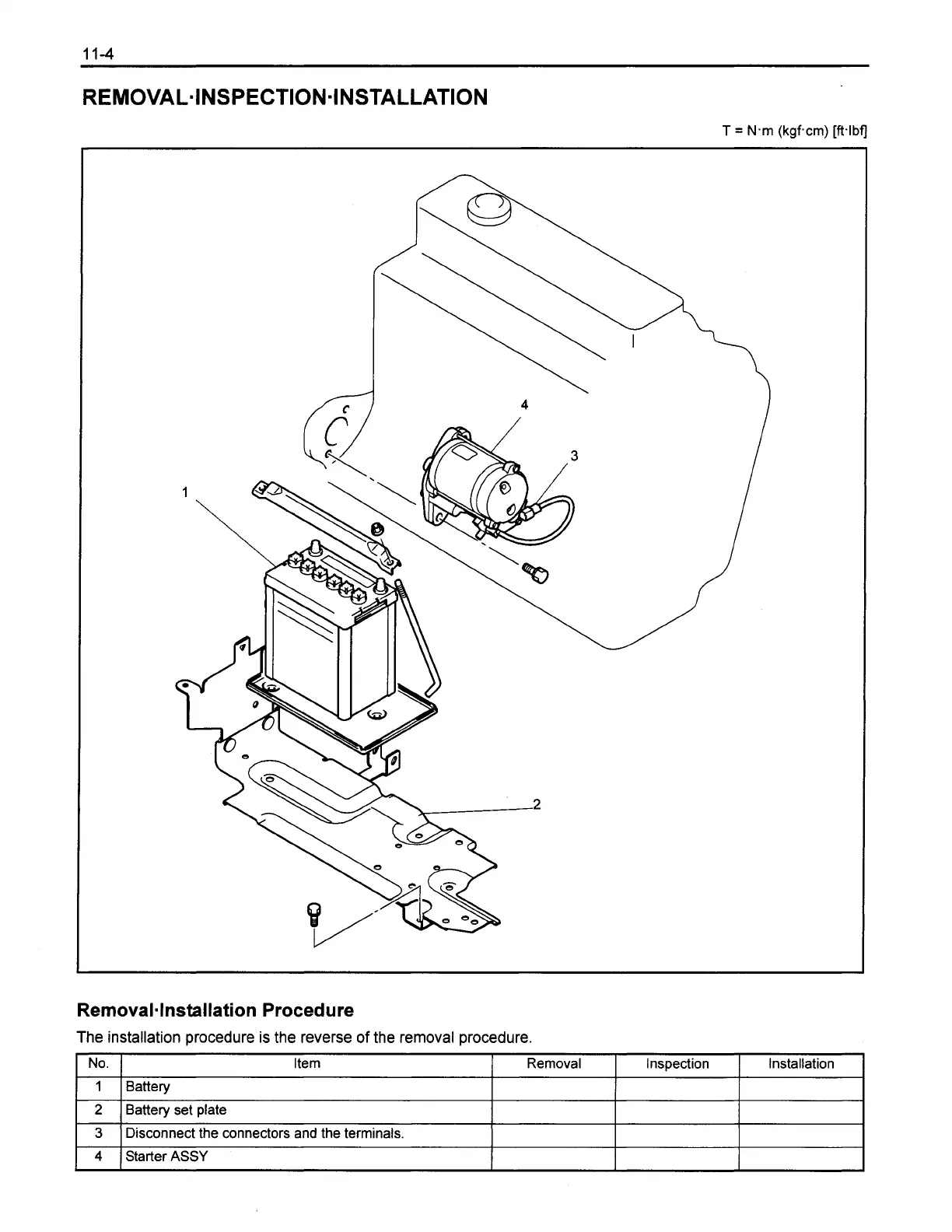

Removal.lnstallation Procedure
The installation procedure is the reverse
of
the removal procedure.
I
No
(
Item Removal Inspection Installation
1
2
3
4
Battery
Battery set plate
Disconnect the connectors and the terminals.
Starter
ASSY
4Y-E Repair
Section 1.1.11
