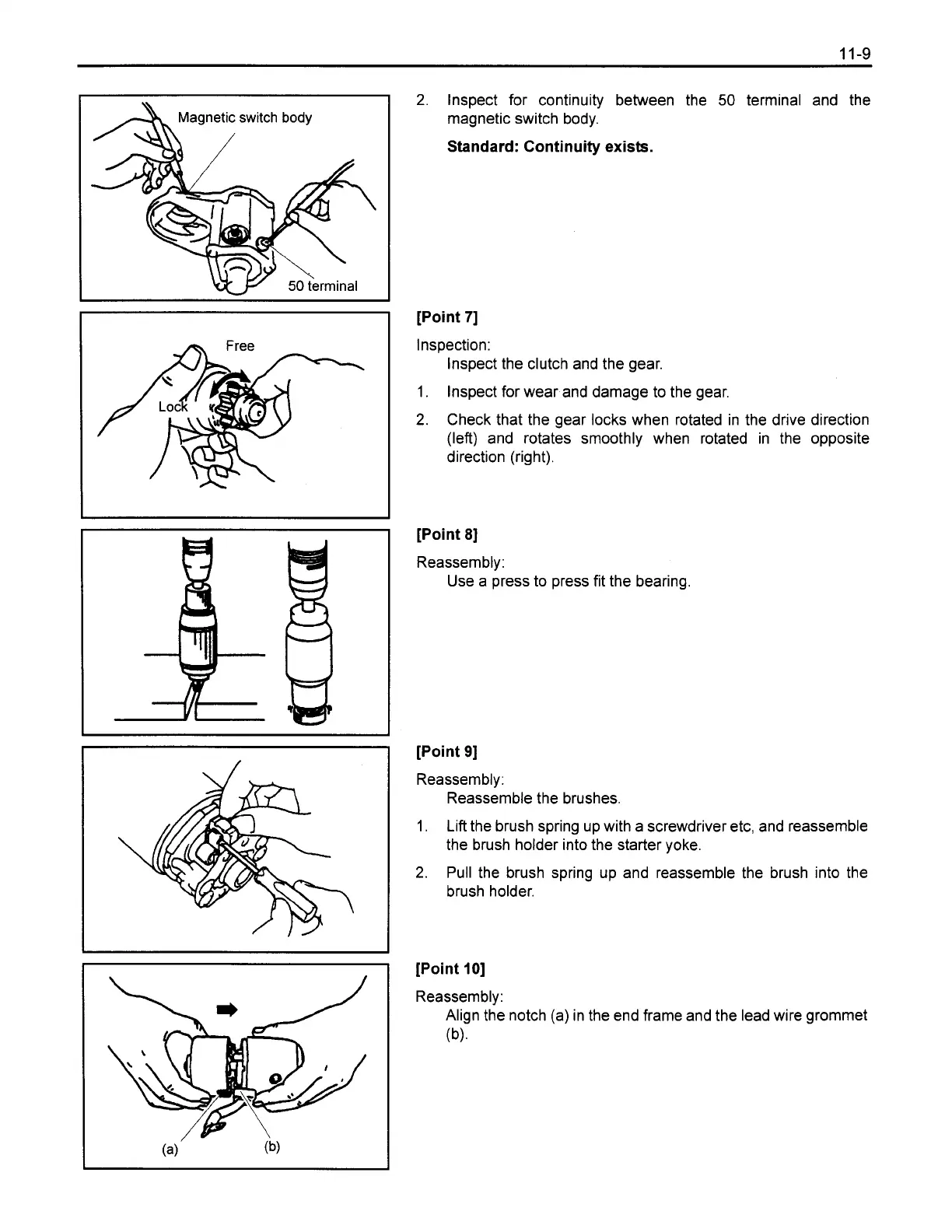

2. lnspect for continuity between the 50 terminal and the
magnetic switch body.
Standard: Continuity exists.
[Point
71
Inspection:
lnspect the clutch and the gear.
1.
lnspect for wear and damage to the gear.
2. Check that the gear locks when rotated in the drive direction
(left) and rotates smoothly when rotated in the opposite
direction (right).
[Point 81
Reassembly:
Use a press to press fit the bearing.
[Point 91
Reassembly:
Reassemble the brushes.
1. Lift the brush spring up with a screwdriver etc, and reassemble
the brush holder into the starter yoke.
2. Pull the brush spring up and reassemble the brush into the
brush holder.
[Point 101
Reassembly:
Align the notch (a) in the end frame and the lead wire grommet
(b).
4Y-E Repair
Section 1.1.11

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
