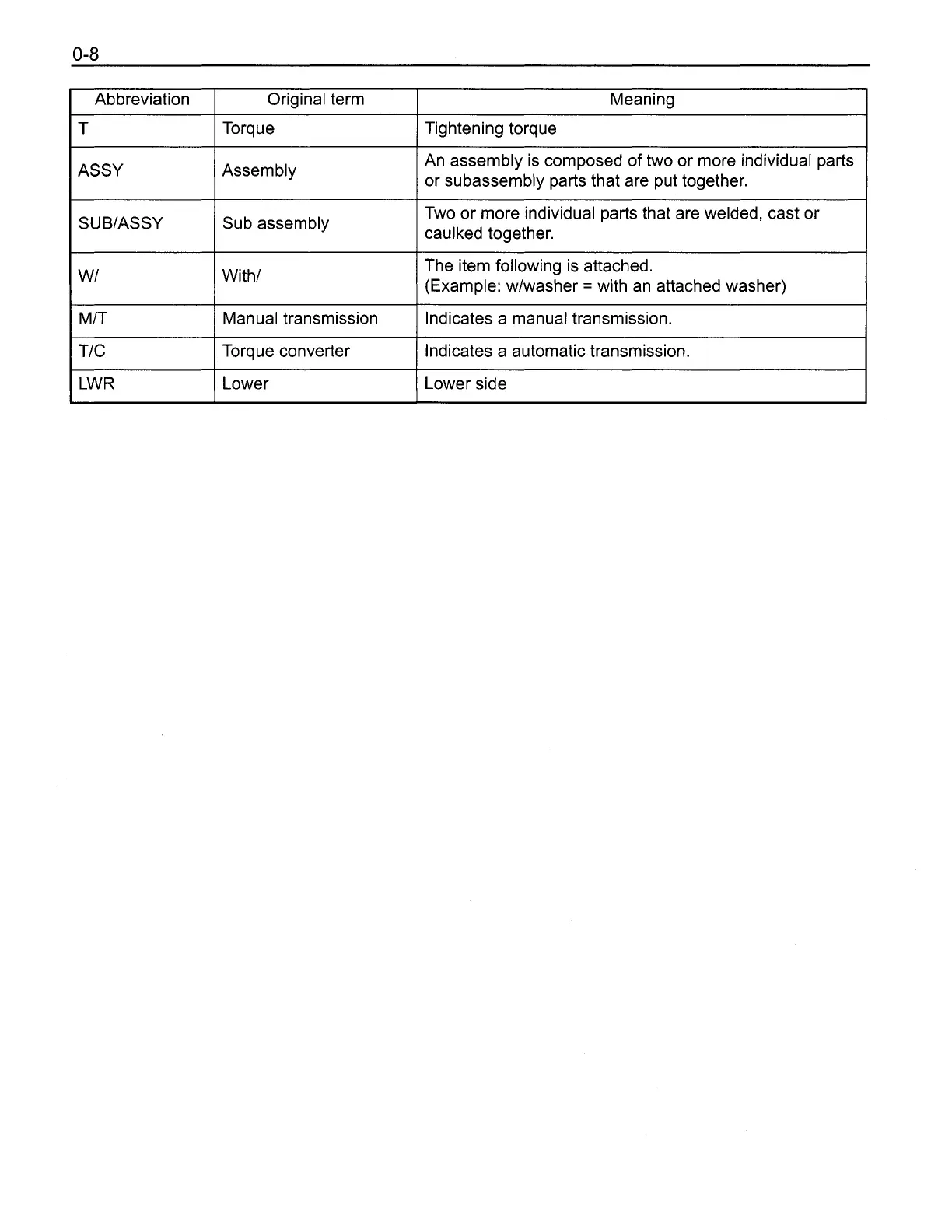

I Abbreviation / Original term Meaning
1 Torque
I Tightening torque
1 ASSY
Assembly
An assembly is composed of two or more individual parts
or subassembly parts that are put together.
I SUBIASSY Sub assembly
Two or more individual parts that are welded, cast or
caulked together.
The item following is attached.
(Example: wlwasher
= with an attached washer)
1 MIT I Manual transmission
1 lndicates a manual transmission.
I Torque converter I lndicates a automatic transmission.
1 LWR / Lower / Lower side
1DZ-II Repair
Section 1.2.0

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
