r
9
1
valve spring, valve
Procedure
I
I
I
I
I
[Point 81
/
[Point 91
/
[Point 121
Disassembly Item
r
10
I
valve stem oil seal
[Point 131
8
I I
/
[point 111
Inspection
Cylinder head gasket
I
11
I
valve guide bushing
/
[point 101
1
t
1
t
Reassembly

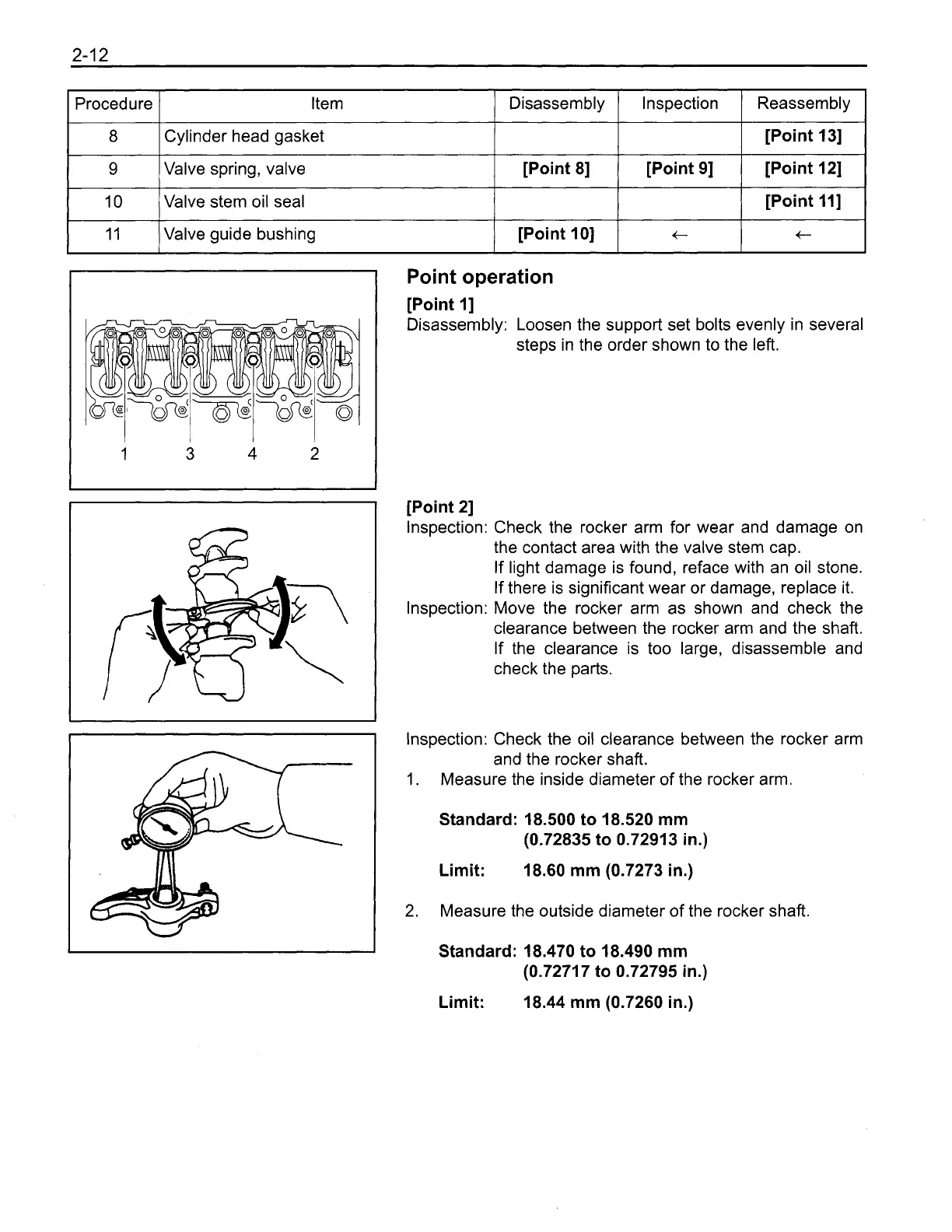

Point operation
[Point I]
Disassembly: Loosen the support set bolts evenly in several
steps in the order shown to the left.
[Point 21
Inspection: Check the rocker arm for wear and damage on
the contact area with the valve stem cap.
If light damage is found, reface with an oil stone.
If there is significant wear or damage, replace it.
Inspection: Move the rocker arm as shown and check the
clearance between the rocker arm and the shaft.
If the clearance is too large, disassemble and
check the parts.
Inspection: Check the oil clearance between the rocker arm
and the rocker shaft.
Measure the inside diameter of the rocker arm.
Standard: 18.500 to 18.520 mm
(0.72835 to 0.72913 in.)
Limit: 18.60 mm (0.7273 in.)
Measure the outside diameter of the rocker shaft.
Standard: 18.470 to 18.490 mm
(0.7271 7 to 0.72795 in.)
Limit: 18.44 mm (0.7260 in.)
To Next Page
