Toyota 8FGCU25 User Manual

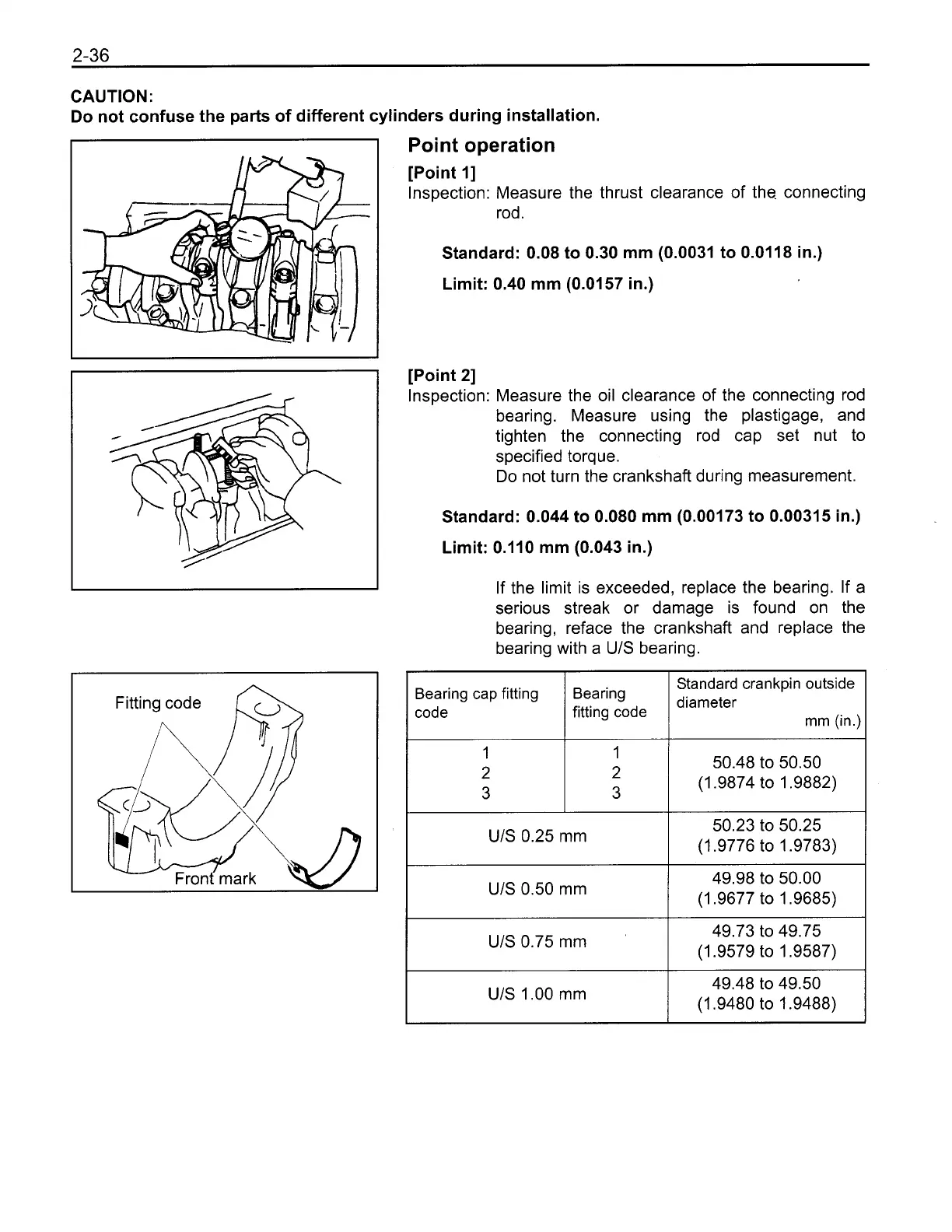

CAUTION:
Do not confuse the parts of different cylinders during installation.
Fittina code f?
Point operation
[Point I]
Inspection: Measure the thrust clearance of the connecting
rod.
Standard: 0.08 to 0.30 mm (0.0031 to 0.0118 in.)
Limit: 0.40 mm (0.0157 in.)
[Point
21
Inspection: Measure the oil clearance of the connecting rod
bearing. Measure using the plastigage, and
tighten the connecting rod cap set nut to
specified torque.
Do not turn the crankshaft during measurement.
Standard: 0.044 to 0.080 mm (0.00173 to 0.00315 in.)
Limit: 0.110 mm (0.043 in.)
If the limit is exceeded, replace the bearing. If a
serious streak or damage is found on the
bearing, reface the crankshaft and replace the
bearing with a
UIS bearing.
Bearing cap fitting
code
Bearing
fitting code
Standard crankpin outside
diameter
mm (in.)
1DZ-II Repair
Section 1.2.2

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
