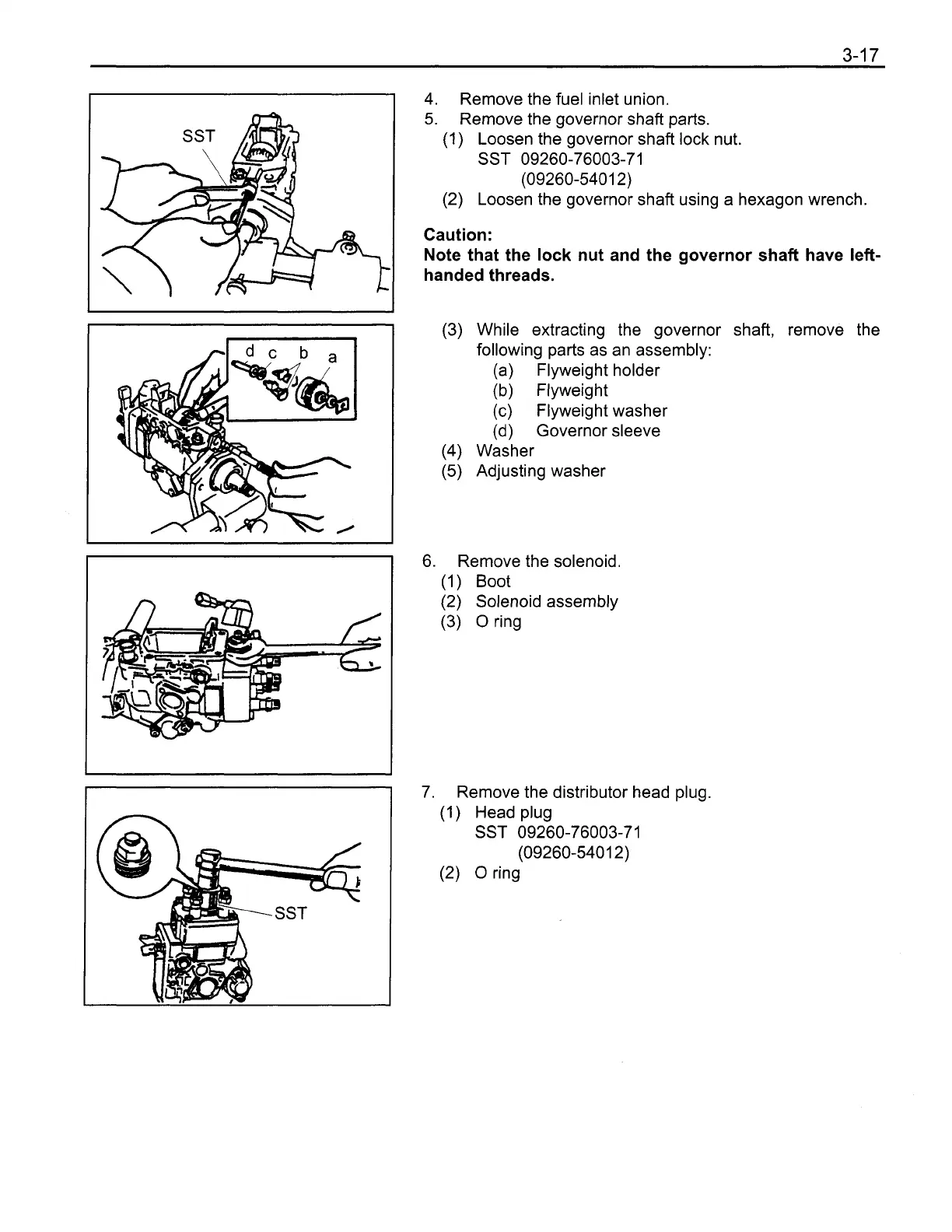

4. Remove the fuel inlet union.
5.
Remove the governor shaft parts.
(1) Loosen the governor shaft lock nut.
SST 09260-76003-71
(09260-5401 2)
(2) Loosen the governor shaft using a hexagon wrench.
Caution:
Note that the lock nut and the governor shaft have left-
handed threads.
(3) While extracting the governor shaft, remove the
following parts as an assembly:
(a) Flyweight holder
(b) Flyweight
(c) Flyweight washer
(d) Governor sleeve
(4) Washer
(5) Adjusting washer
6. Remove the solenoid.
(1) Boot
(2) Solenoid assembly
(3)
0 ring
7.
Remove the distributor head plug.
(1) Head plug
SST 09260-76003-71
(09260-5401 2)
(2)
0 ring
1DZ-II Repair
Section 1.2.3

Toyota 8FGCU25 Specifications

General

Load Capacity	5000 lbs
Lift Height	189 inches
Power Source	Internal Combustion
Fuel Type	Gasoline/LPG
Operator Type	Seated
Lift Speed (loaded/unloaded)	122 fpm
Lowering Speed (loaded/unloaded)	98 fpm / 98 fpm
Mast Height (lowered/raised)	83 inches
Weight	3, 500 kg
