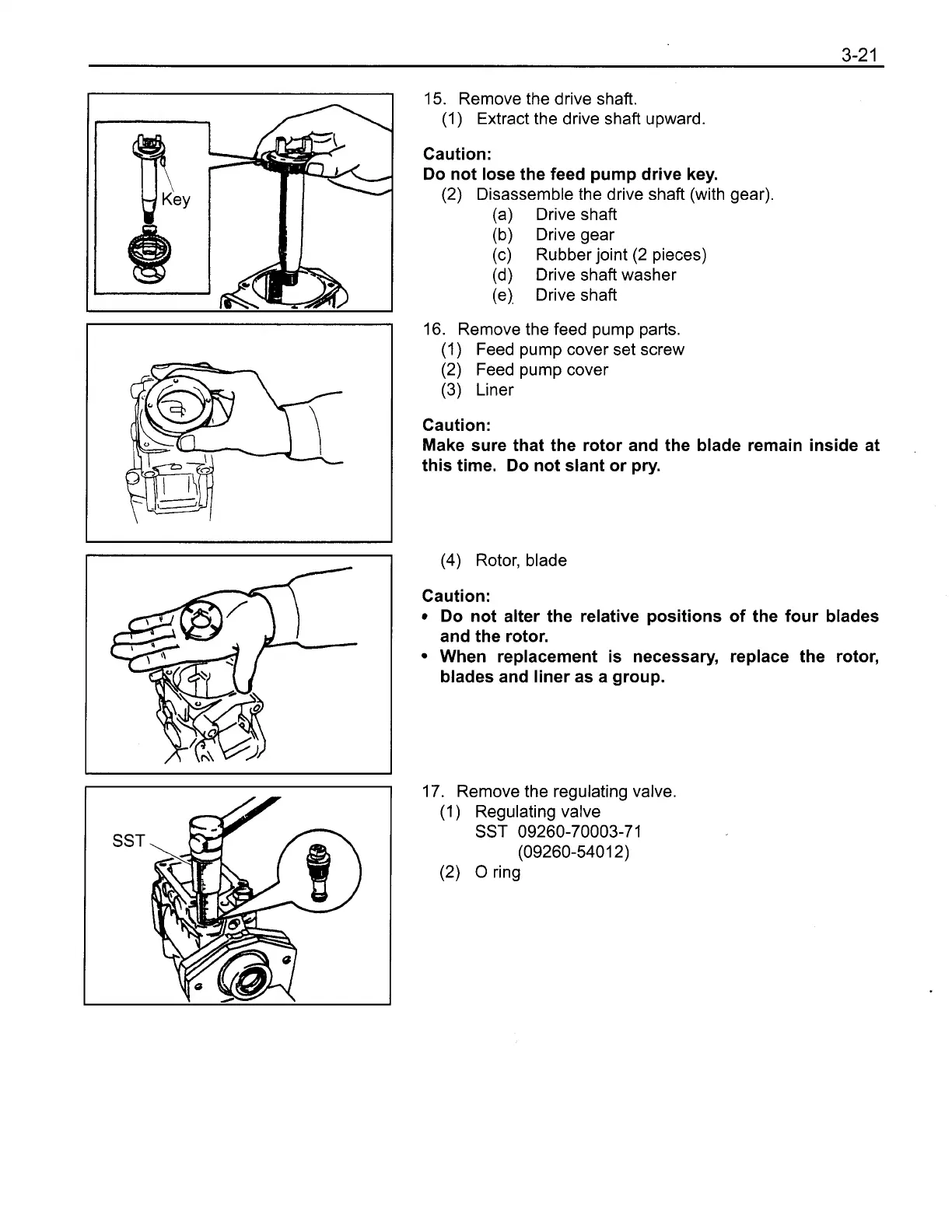

15. Remove the drive shaft.
(1) Extract the drive shaft upward.
Caution:
Do not lose the feed pump drive key.
(2) Disassemble the drive shaft (with gear).
(a) Drive shaft
(b) Drive gear
(c) Rubber joint (2 pieces)
(d) Drive shaft washer
(e), Drive shaft
16. Remove the feed pump parts.
(1) Feed pump cover set screw
(2) Feed pump cover
(3) Liner
Caution:
Make sure that the rotor and the blade remain inside at
this time. Do not slant or pry.
(4) Rotor, blade
Caution:
Do not alter the relative positions of the four blades
and the rotor.
When replacement is necessary, replace the rotor,
blades and liner as a group.
17. Remove the regulating valve.
(1) Regulating valve
SST 09260-70003-71
(09260-5401 2)
(2)
0 ring
1DZ-II Repair
Section 1.2.3
