Pay attention to
attention
the blade
to the hole direction
position (Reversed
assembly is no1
possible)
Liner
Rotor
Screw
'
WJ
4.

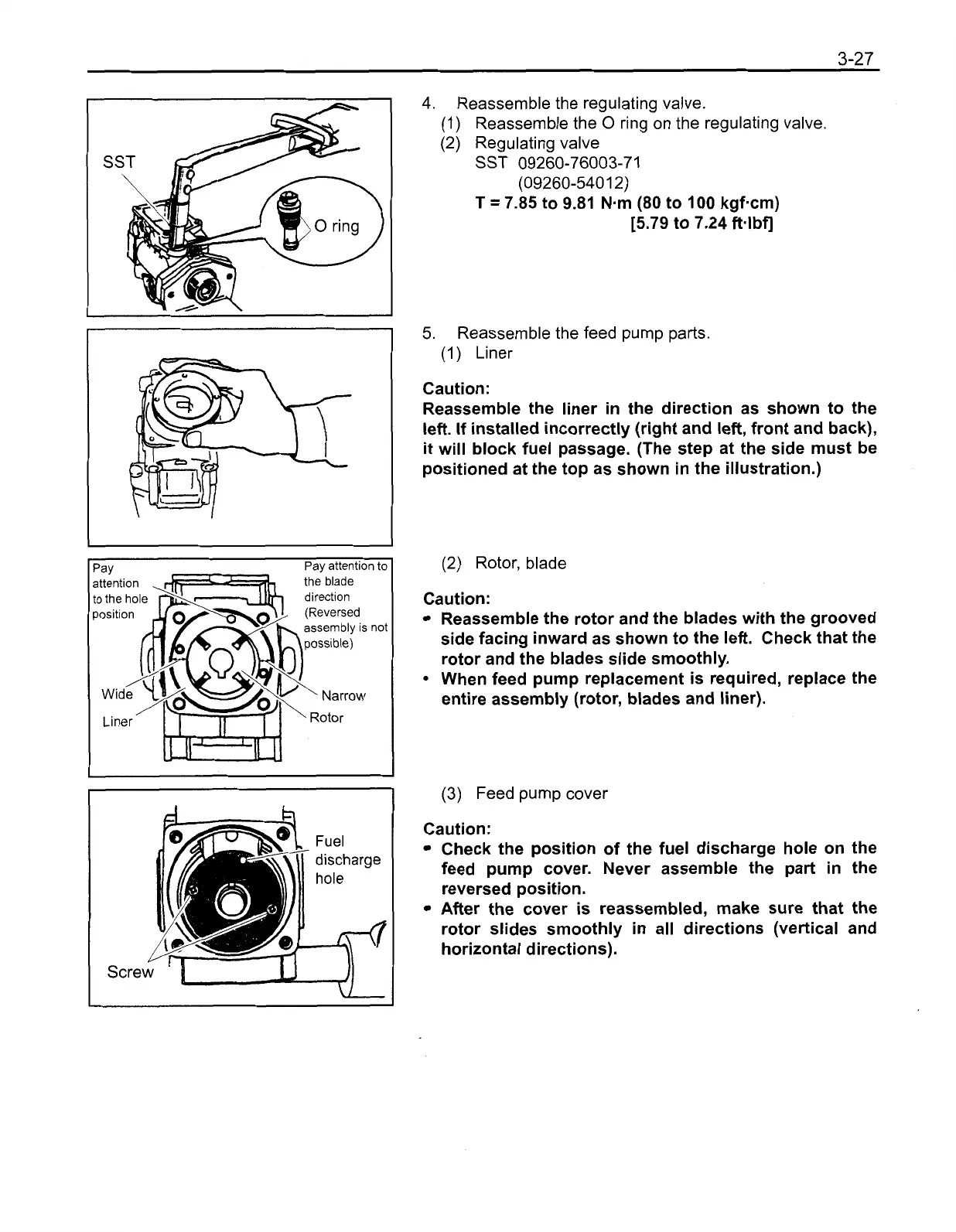

Reassemble the regulating valve.
(1)
Reassemble the
0
ring on the regulating valve.
(2) Regulating valve
SST
09260-76003-71
(09260-540 1
2)
T
=
7.85 to 9.81 N-m (80 to 100 kgfmcm)
t5.79 to 7.24 ft-lbfl
5.
Reassemble the feed pump parts.
(1) Liner
Caution:
Reassemble the liner in the direction as shown to the
left. If installed incorrectly (right and left, front and back),
it will block fuel passage. (The step at the side must be
positioned at the top as shown in the illustration.)
(2) Rotor, blade
Caution:
Reassemble the rotor and the blades with the grooved
side facing inward as shown to the left. Check that the
rotor and the blades slide smoothly.
When feed pump replacement is required, replace the
entire assembly (rotor, blades and liner).
(3)
Feed pump cover
Caution:
Check the position of the fuel discharge hole on the
feed pump cover. Never assemble the part in the
reversed position.
After the cover is reassembled, make sure that the
rotor slides smoothly in all directions (vertical and
horizontal directions).
To Next Page
