TP-Link Archer C50 User Manual

Archer C50 AC1200 Wireless Dual Band Router
- 94 -

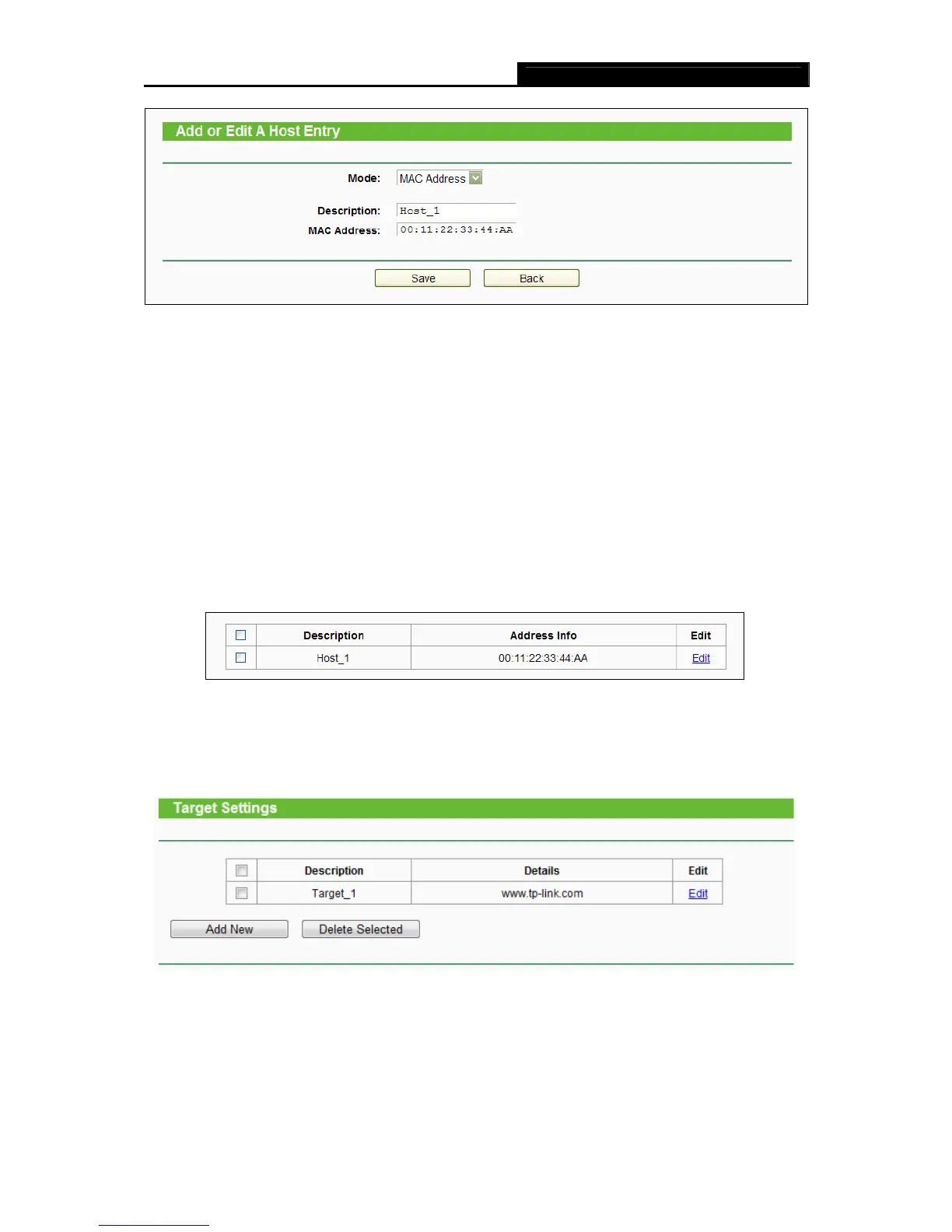

Figure 4-80 Add or Modify a Host Entry
For example: If you desire to restrict the internet activities of host with MAC address
00:11:22:33:44:AA, you should first follow the settings below:
1. Click Add New button in Figure 4-78 to enter the Add or Modify a Host Entry page.
2. In Mode field
, select MAC Address from the drop-down list.
3. In Description field, create a unique description for the host (e.g. Host_1).
4. In MAC Address field, enter 00:11:22:33:44:AA.
5. Click Save to complete the settings.
Then you will go back to the Host Settings page and see the following list.
4.15.3 Target
Choose menu “Access Control → Target”, and then you can view and set a Target list in the
screen as shown in Figure 4-81. The target list is necessary for the Access Control Rule.
Figure 4-81 Target Settings
 Description - Here displays the description about the target and this description is unique.
 Details - The target can be IP address, port, or domain name.
 Edit- To modify or delete an existing entry.

TP-Link Archer C50 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VPN support	PPTP, L2TP, IPSec
Networking standards	-
Receiver sensitivity	5GHz: 11a 54M: -77dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 5.5M: -94dBm 11g 54M: -78dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Product type	Tabletop router
Product color	Black
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Package depth	240 mm
Package width	290 mm
Package height	76 mm
Package weight	670 g

Weight and Dimensions

Depth	123.5 mm
Width	182.95 mm
Height	32.1 mm
