TP-Link Archer C50 User Manual

Archer C50 AC1200 Wireless Dual Band Router
- 100 -
4. Click the Save button to make the entry take effect.
Other configurations for the entries:
Click the Delete button to delete the entry.
Click the Enable Selected button to enable the selected entries.
Click the Disable Selected button to disable the selected entries.
Click the Delete Selected button to delete the selected entries.
4.16.2 System Routing Table
Choose menu “Advanced Routing → System Routing Table”, and then you can view the
System Routing Table in the next screen (shown in Figure 4-90). System routing table views all of
the valid r
oute entries in use. The Destination IP address, Subnet Mask, Gateway, and Interface
will be displayed for each entry.

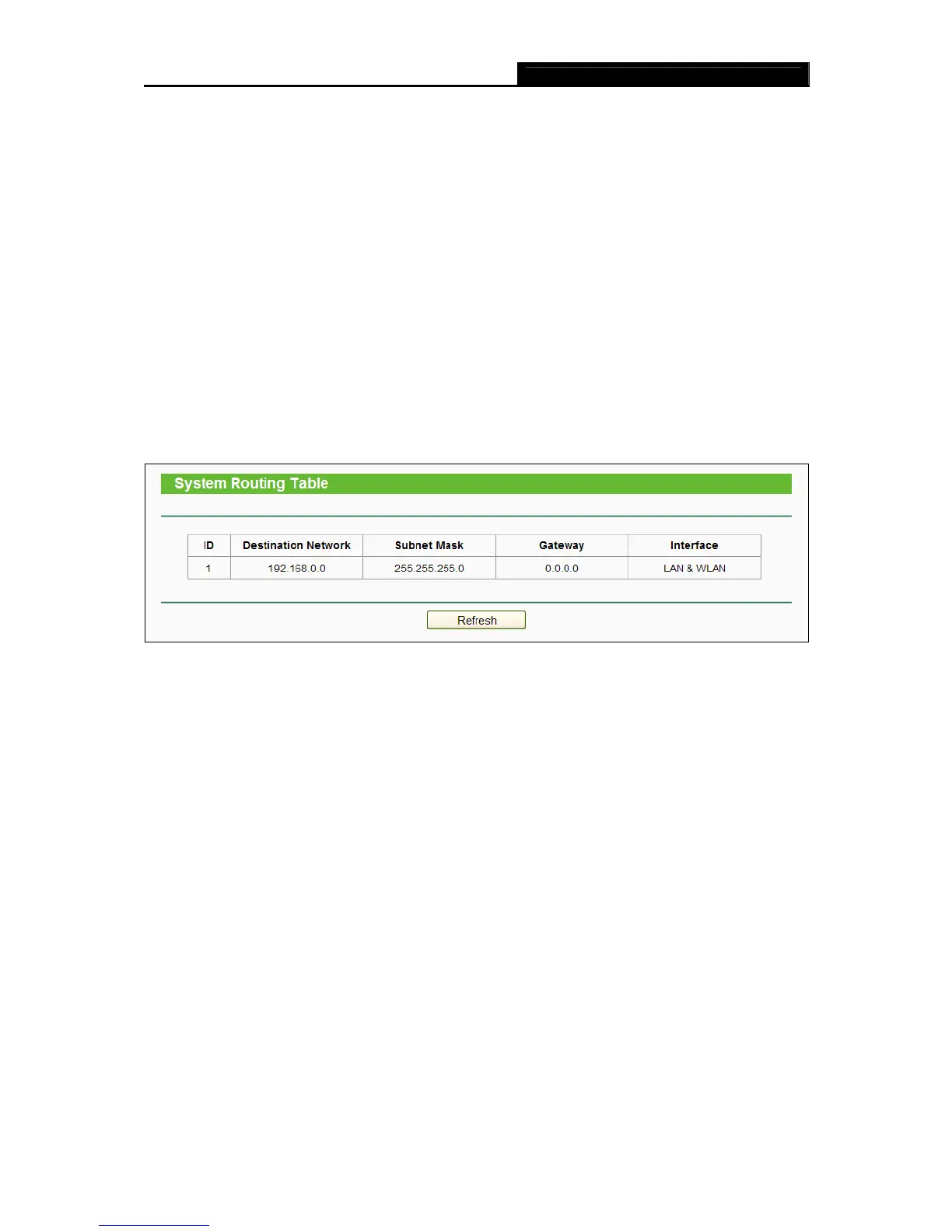

Figure 4-90 System Routing Table
 Destination Network - The Destination Network is the address of the network or host to
which the static route is assigned.
 Subnet Mask - The Subnet Mask determines which portion of an IP address is the network
portion, and which portion is the host portion.
 Gateway - This is the IP address of the gateway device that allows for contact between the
router and the network or host.
 Interface - This interface tells you either the Destination IP Address is on the LAN & WLAN
(internal wired and wireless networks), or on the WAN (Internet).

TP-Link Archer C50 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VPN support	PPTP, L2TP, IPSec
Networking standards	-
Receiver sensitivity	5GHz: 11a 54M: -77dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 5.5M: -94dBm 11g 54M: -78dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Product type	Tabletop router
Product color	Black
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Package depth	240 mm
Package width	290 mm
Package height	76 mm
Package weight	670 g

Weight and Dimensions

Depth	123.5 mm
Width	182.95 mm
Height	32.1 mm
