TP-Link Archer C50 User Manual

Archer C50 AC1200 Wireless Dual Band Router
- 46 -
4.6.4 Wireless MAC Filtering
Choose menu “Wireless 2.4GHz → Wireless MAC Filtering”, you can control the wireless
access by configuring the Wireless MAC Filtering function, shown in
Figure 4-24.

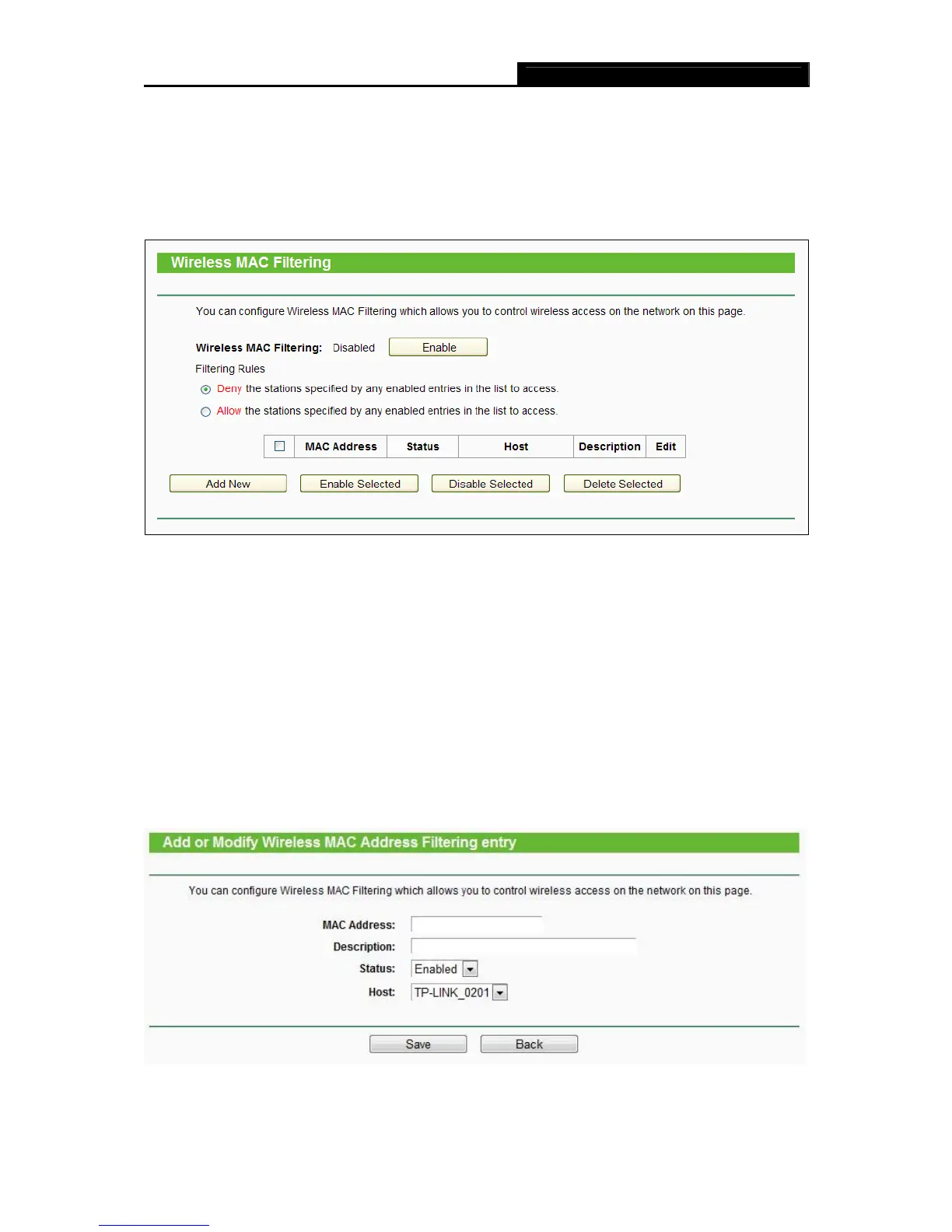

Figure 4-24 Wireless MAC Filtering
To filter wireless users by MAC Address, click Enable. The default setting is Disabled.
 MAC Address - The wireless station's MAC address that you want to filter.
 Status - The status of this entry, either Enabled or Disabled.
 Host - The host network for the filtering rules.
 Description - A simple description of the wireless station.
To Add a Wireless MAC Address filtering entry, click the Add New button. The "Add or Modify
Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-25:
Figure 4-25 Add or Modify Wireless MAC Address Filtering entry

TP-Link Archer C50 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VPN support	PPTP, L2TP, IPSec
Networking standards	-
Receiver sensitivity	5GHz: 11a 54M: -77dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 5.5M: -94dBm 11g 54M: -78dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Product type	Tabletop router
Product color	Black
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Package depth	240 mm
Package width	290 mm
Package height	76 mm
Package weight	670 g

Weight and Dimensions

Depth	123.5 mm
Width	182.95 mm
Height	32.1 mm
