TP-Link Archer C50 User Manual

Archer C50 AC1200 Wireless Dual Band Router
- 114 -
4.21 System Tools

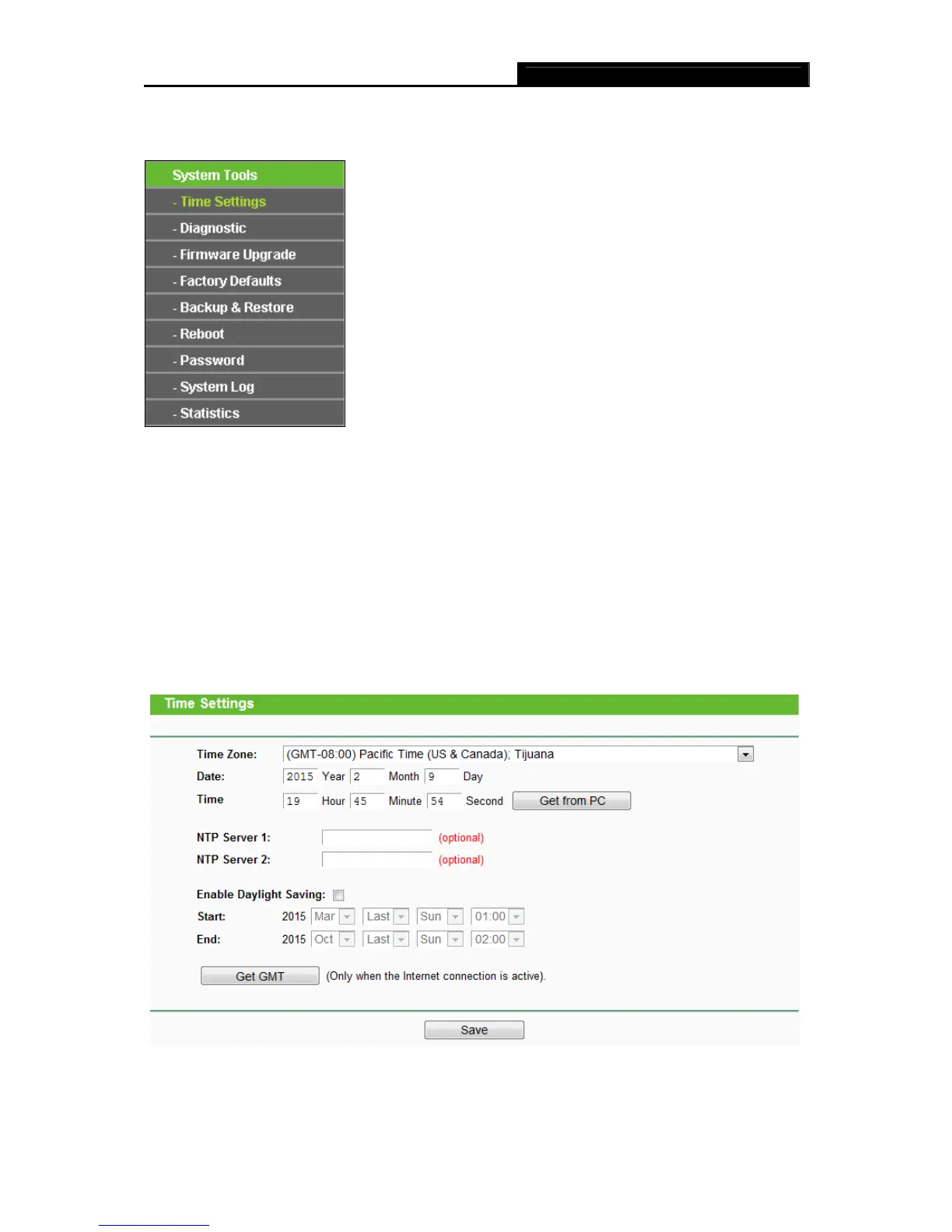

Figure 4-108 The System Tools menu
Choose menu “System Tools”, and you can see the submenus under the main menu: Time
Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot,
Password, System Log and Statistics. Click any of them, and you will be able to configure the
corresponding functions. The detailed explanations for each submenu are provided below.
4.21.1 Time Settings
Choose menu “System Tools→Time Settings”, and then you can configure the time on the
following screen.
Figure 4-109 Time settings
 Time Zone - Select your local time zone from this pull down list.

TP-Link Archer C50 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VPN support	PPTP, L2TP, IPSec
Networking standards	-
Receiver sensitivity	5GHz: 11a 54M: -77dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 5.5M: -94dBm 11g 54M: -78dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Product type	Tabletop router
Product color	Black
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Package depth	240 mm
Package width	290 mm
Package height	76 mm
Package weight	670 g

Weight and Dimensions

Depth	123.5 mm
Width	182.95 mm
Height	32.1 mm
