TP-Link Archer C50 User Manual

Archer C50 AC1200 Wireless Dual Band Router
- 120 -
 To upgrade the router's configuration, follow these instructions.
 Click the Browse button to find the configuration file which you want to restore.
 Click the Restore button to update the configuration with the file whose path is the one
you have input or selected in the blank.
 Note:
The current configuration will be covered with the uploading configuration file. Wrong process will
lead the device unmanaged. The restoring process lasts for 20 seconds and the router will restart
automatically then. Keep the power of the router on during the process, in case of any damage.
4.21.6 Reboot
Choose menu “System Tools → Reboot”, and then you can click the Reboot button to reboot
the router via the next screen.

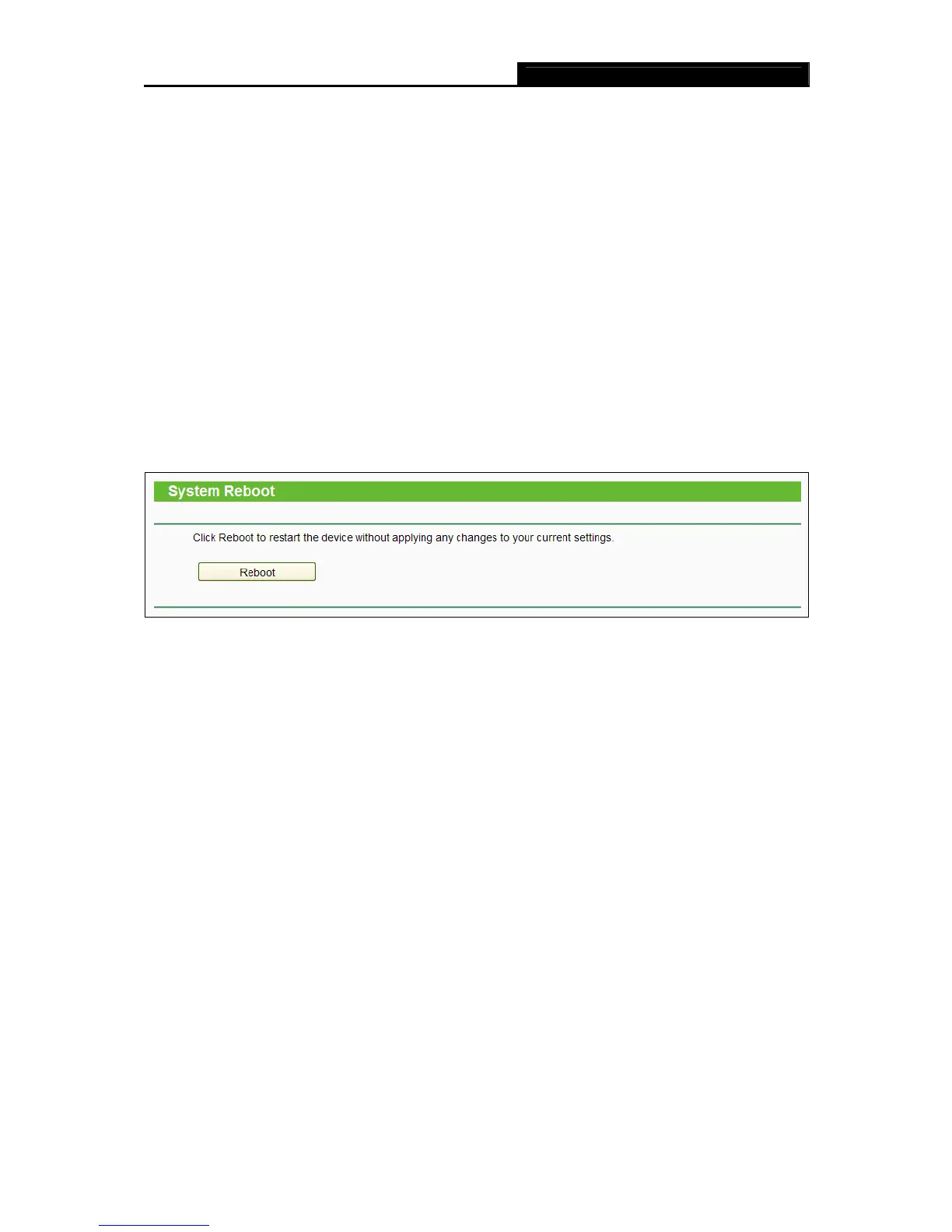

Figure 4-116 Reboot the router
Some settings of the router will take effect only after rebooting, which include
 Change the LAN IP Address (system will reboot automatically).
 Upgrade the firmware of the router (system will reboot automatically).
 Restore the router's settings to factory defaults (system will reboot automatically).
 Update the configuration with the file (system will reboot automatically).
4.21.7 Password
Choose menu “System Tools → Password”, and then you can change the factory default user
name and password of the router in the next screen as shown in Figure 4-117.

TP-Link Archer C50 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VPN support	PPTP, L2TP, IPSec
Networking standards	-
Receiver sensitivity	5GHz: 11a 54M: -77dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 5.5M: -94dBm 11g 54M: -78dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Product type	Tabletop router
Product color	Black
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Package depth	240 mm
Package width	290 mm
Package height	76 mm
Package weight	670 g

Weight and Dimensions

Depth	123.5 mm
Width	182.95 mm
Height	32.1 mm
