TP-Link Archer C50 User Manual

Archer C50 AC1200 Wireless Dual Band Router
- 108 -
There are three submenus under the IPv6 Support menu (shown in Figure 4-100): IPv6 S
tatus,
IPv6 WAN and IPv6 LAN. Click either of them, and you will be able to scan or configure the
corresponding function. The detailed explanations for each submenu are provided below.
4.20.1 IPv6 Status

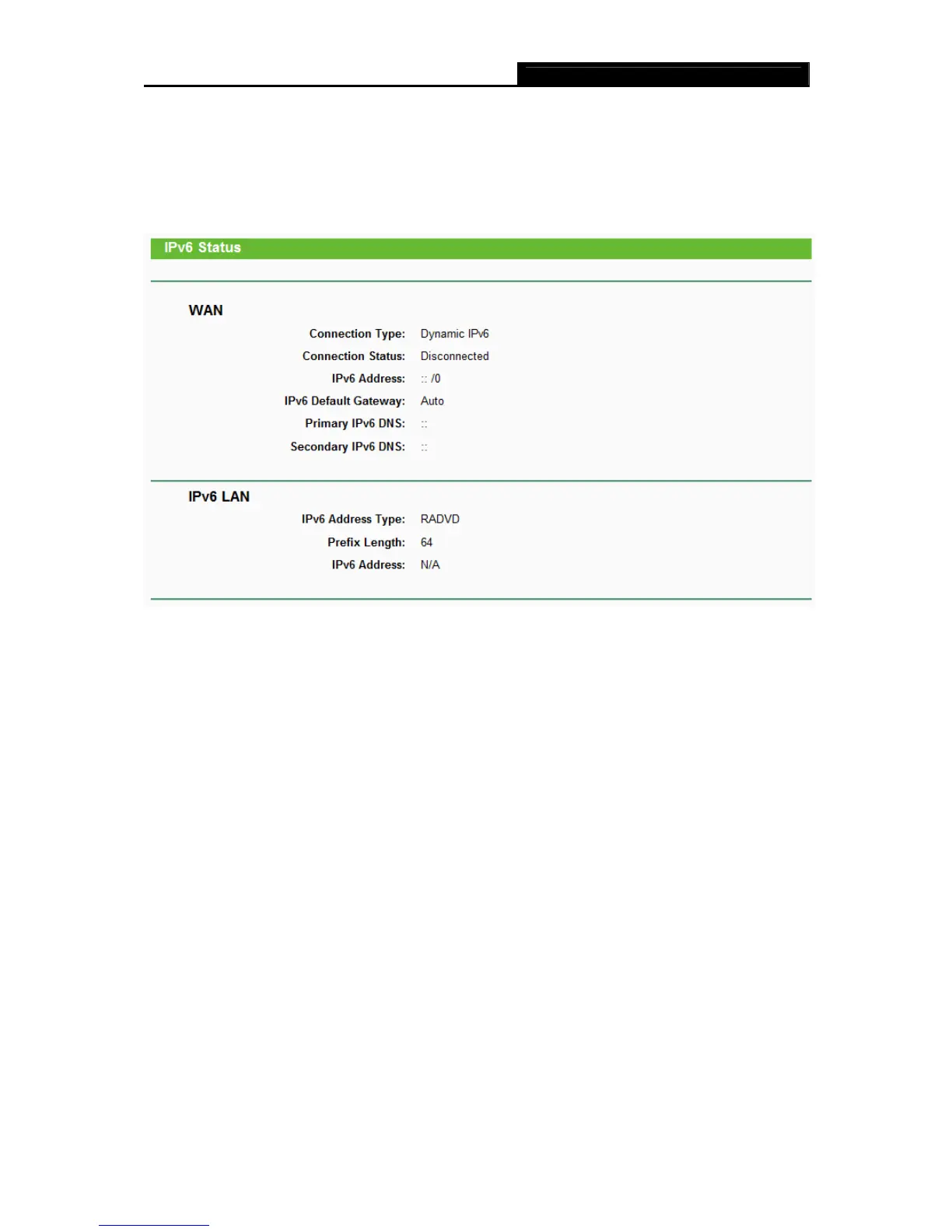

Figure 4-101 IPv6 Status
The IPv6 Status page displays the router's current IPv6 status and configuration. All information
is read-only.
 WAN
 Connection Type - The IPv6 connection way for WAN
 Connection Status - The status of IPv6 connection
 IPv6 Address - The WAN IPv6 address
 IPv6 Default Gateway - The router's default gateway
 Primary IPv6 DNS - The primary IPv6 DNS address
 Secondary IPv6 DNS - The secondary IPv6 DNS address
 LAN
 IPv6 Address Type - There are two types of assignation for IPv6 address: RADVD
(Stateless address auto-configuration) and DHCPv6 (Dynamic Host Configuration
Protocol for IPv6) Server.
 Prefix Length - The prefix length of IPv6 address
 IPv6 Address - The LAN IPv6 address

TP-Link Archer C50 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VPN support	PPTP, L2TP, IPSec
Networking standards	-
Receiver sensitivity	5GHz: 11a 54M: -77dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 5.5M: -94dBm 11g 54M: -78dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Product type	Tabletop router
Product color	Black
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Package depth	240 mm
Package width	290 mm
Package height	76 mm
Package weight	670 g

Weight and Dimensions

Depth	123.5 mm
Width	182.95 mm
Height	32.1 mm
