TP-Link Archer C50 User Manual

Archer C50 AC1200 Wireless Dual Band Router
- 101 -
4.17 Bandwidth Control

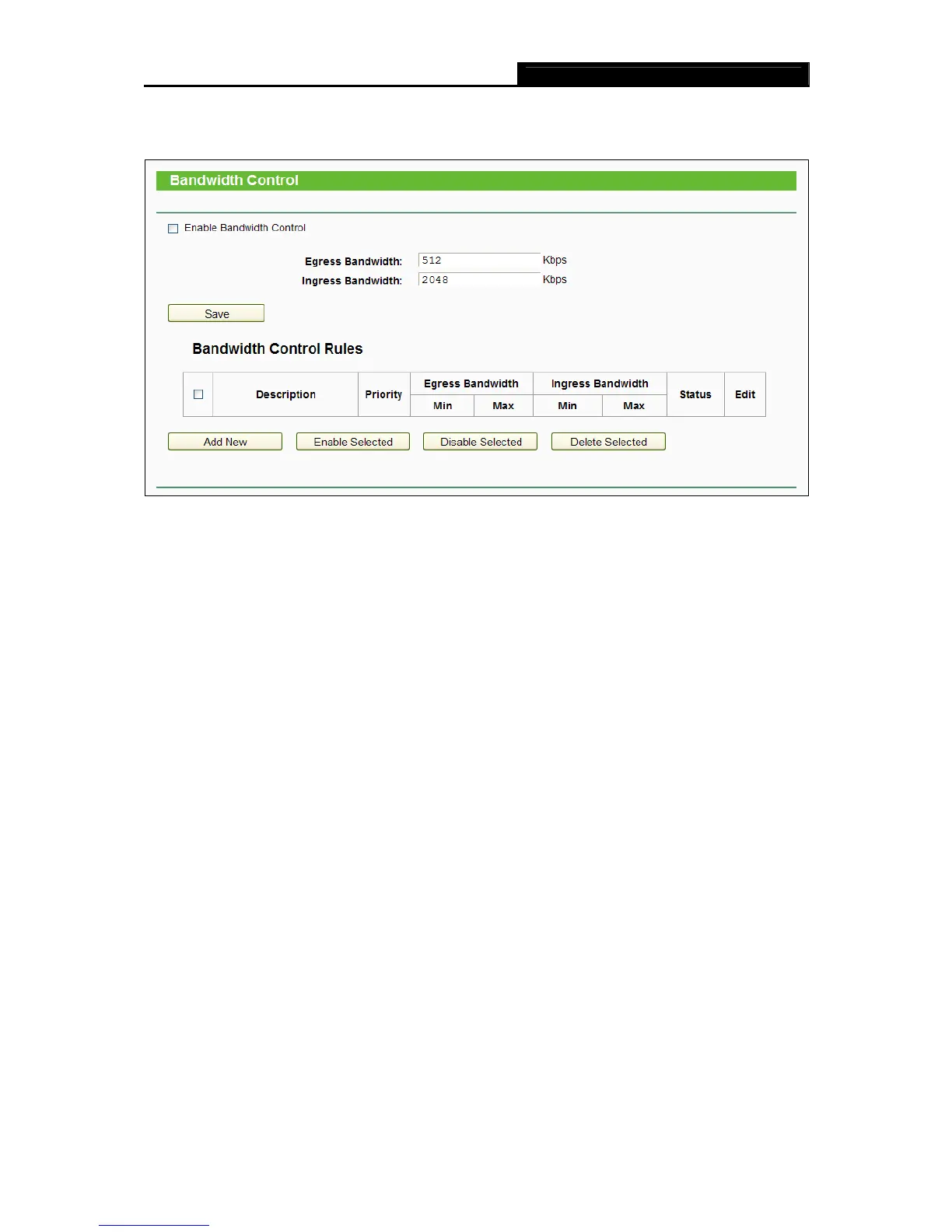

Figure 4-91 Bandwidth Control
Choose menu “Bandwidth Control”, and then you can configure the bandwidth control in the
screen as shown in Figure 4-91 Bandwidth Control.
Y
ou can configure the Egress Bandwidth and Ingress Bandwidth in this page. Their values you
configure should be less than 10000Kbps. You can also view and configure the Bandwidth Control
rules in this page.
 Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can take
effect.
 Egress Bandwidth - The upload speed through the Internet port
.
 Ingress Bandwidth - The download speed through the Internet port.
Click Save to make the settings take effect.
 Description - This is the information about the rules such as address range.

Priority - The priority of the rule, ranging from 1 to 8. 1 stands for the highest priority
 Egress bandwidth - This field displays the max and mix upload bandwidth through the
Internet port, the default is 0.
 Ingress bandwidth - This field displays the max and mix download bandwidth through the
Internet port, the default is 0.
 Status - This displays the status of the rule.
 Edit - Click Edit to edit the rule. Click Delete to delete the rule.
To add/modify a Bandwidth Control rule, follow the steps below.

TP-Link Archer C50 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VPN support	PPTP, L2TP, IPSec
Networking standards	-
Receiver sensitivity	5GHz: 11a 54M: -77dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 5.5M: -94dBm 11g 54M: -78dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Product type	Tabletop router
Product color	Black
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Package depth	240 mm
Package width	290 mm
Package height	76 mm
Package weight	670 g

Weight and Dimensions

Depth	123.5 mm
Width	182.95 mm
Height	32.1 mm
