TP-Link Archer C50 User Manual

Archer C50 AC1200 Wireless Dual Band Router
- 99 -
There are two submenus under the Advanced Routing menu as shown in Figure 4-87: St
atic
Route List and System Routing Table. Click any of them, and you will be able to configure the
corresponding function.
4.16.1 Static Route List
Choose menu “Advanced Routing → Static Route List”, and then you can configure the static
route in the next screen (shown in Figure 4-88). A static route is a pre-d
etermined path that
network information must travel to reach a specific host or network.

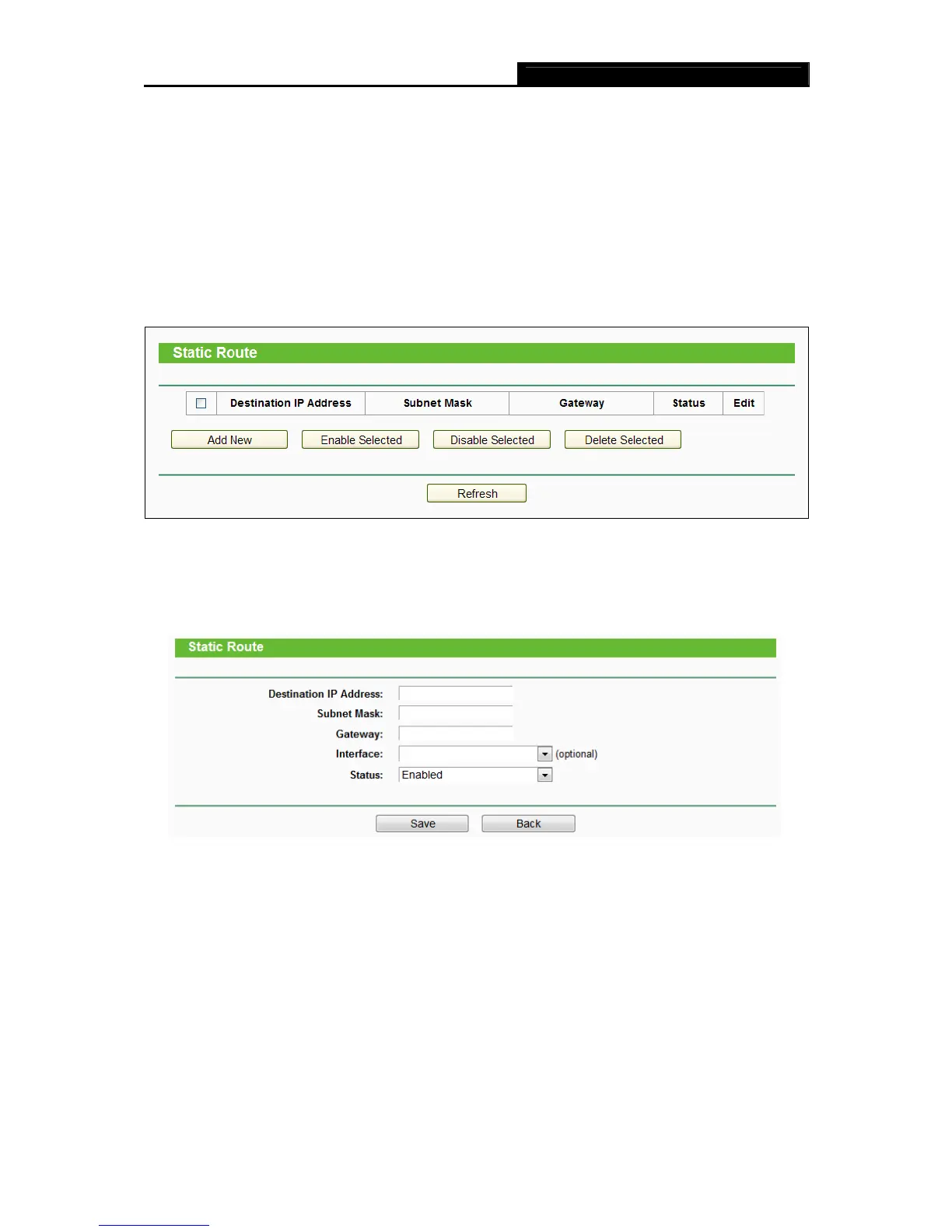

Figure 4-88 Static Route
To add static route entries:
1. Click Add New shown in Figure 4-88, you will see the following screen.
Figure 4-89 Add or Modify a Static Route Entry
2. Enter the following data:
 Destination IP Address - The Destination IP Address is the address of the network or
host that you want to assign to a static route.
 Subnet Mask - The Subnet Mask determines which portion of an IP Address is the
network portion, and which portion is the host portion.
 Gateway - This is the IP Address of the gateway device that allows for contact between
the router and the network or host.
3. Select Enabled or Disabled for this entry on the Status drop-down list.

TP-Link Archer C50 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
VPN support	PPTP, L2TP, IPSec
Networking standards	-
Receiver sensitivity	5GHz: 11a 54M: -77dBm 11ac VHT20 MCS8: -70dBm 11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 5.5M: -94dBm 11g 54M: -78dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Product type	Tabletop router
Product color	Black
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.85 A
Output voltage	9 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Package depth	240 mm
Package width	290 mm
Package height	76 mm
Package weight	670 g

Weight and Dimensions

Depth	123.5 mm
Width	182.95 mm
Height	32.1 mm
