DSCP: Indicates the
priority determined by the DS region of IP datagram.
It ranges from 0 to 63.
Priority: Indicates the 802.1P priority the packets with tag are mapped to.
The priorities are labeled as CoS0 ~ CoS7.
Configuration Procedure:
Step Operation Description
1 Configure the mapping
relation between the DSCP
priority and 802.1P priority
Required. On QoS→DiffServ→DSCP Priority page,
enable DSCP Priority and configure the mapping
relation between the DSCP priority and CoS.
2 Configure the mapping
relation between the CoS and
the TC
Required. On QoS→DiffServ→802.1P/CoS mapping
page, configure the mapping relation between the CoS
and the TC.
3 Select a schedule mode Required. On QoS→DiffServ→Schedule Mode
page, select a schedule mode.
9.1.3 802.1P/CoS mapping
On this page you can configure the mapping relation between the 802.1P priority tag-id/CoS-id and
the TC-id.
802.1P gives the Pri field in 802.1Q tag a recommended definition. This field, ranging from 0-7, is
used to divide packets into 8 priorities. 802.1P Priority is enabled by default, so the packets with
802.1Q tag are mapped to different priority levels based on 802.1P priority mode but the untagged
packets are mapped based on port priority mode. With the same value, the 802.1P priority tag and
the CoS will be mapped to the same TC.
Choose the menu QoS→DiffServ→802.1P/CoS mapping to load the following page.

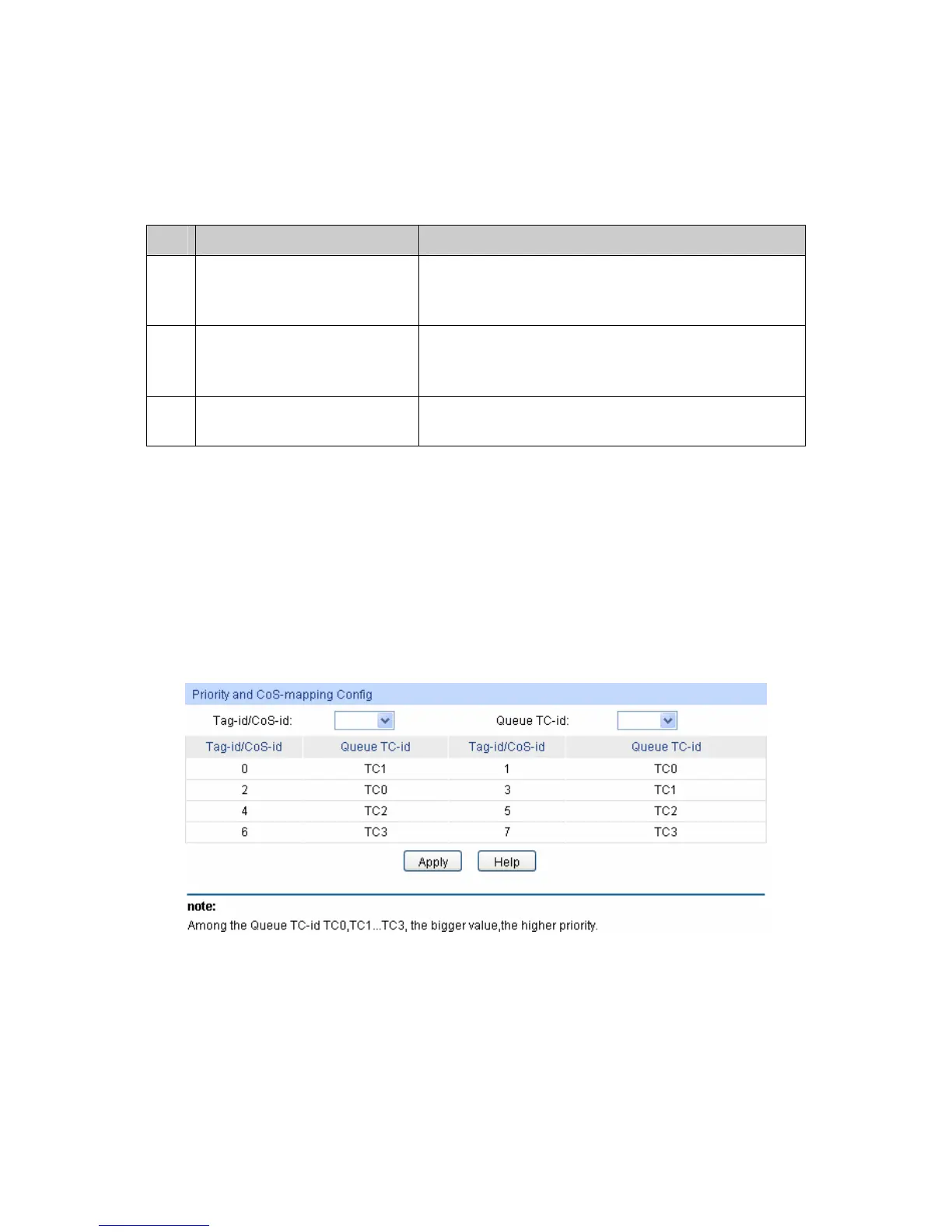

Figure 9-8 802.1P/CoS mapping
The following entries are displayed on this screen
:
 Priority and CoS-mapping Config
Tag-id/Cos-id: Indicates the precedence level defined by IEEE802.1P and the
CoS ID.
103

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
