TP-Link TL-SG2216 User Manual

St
atus: Select Enable/Disable the corresponding sampling entry.
12.3.2 Event Config
On this page, you can configure the RMON events.
Choose the menu SNMP→RMON→Event Config to load the following page.

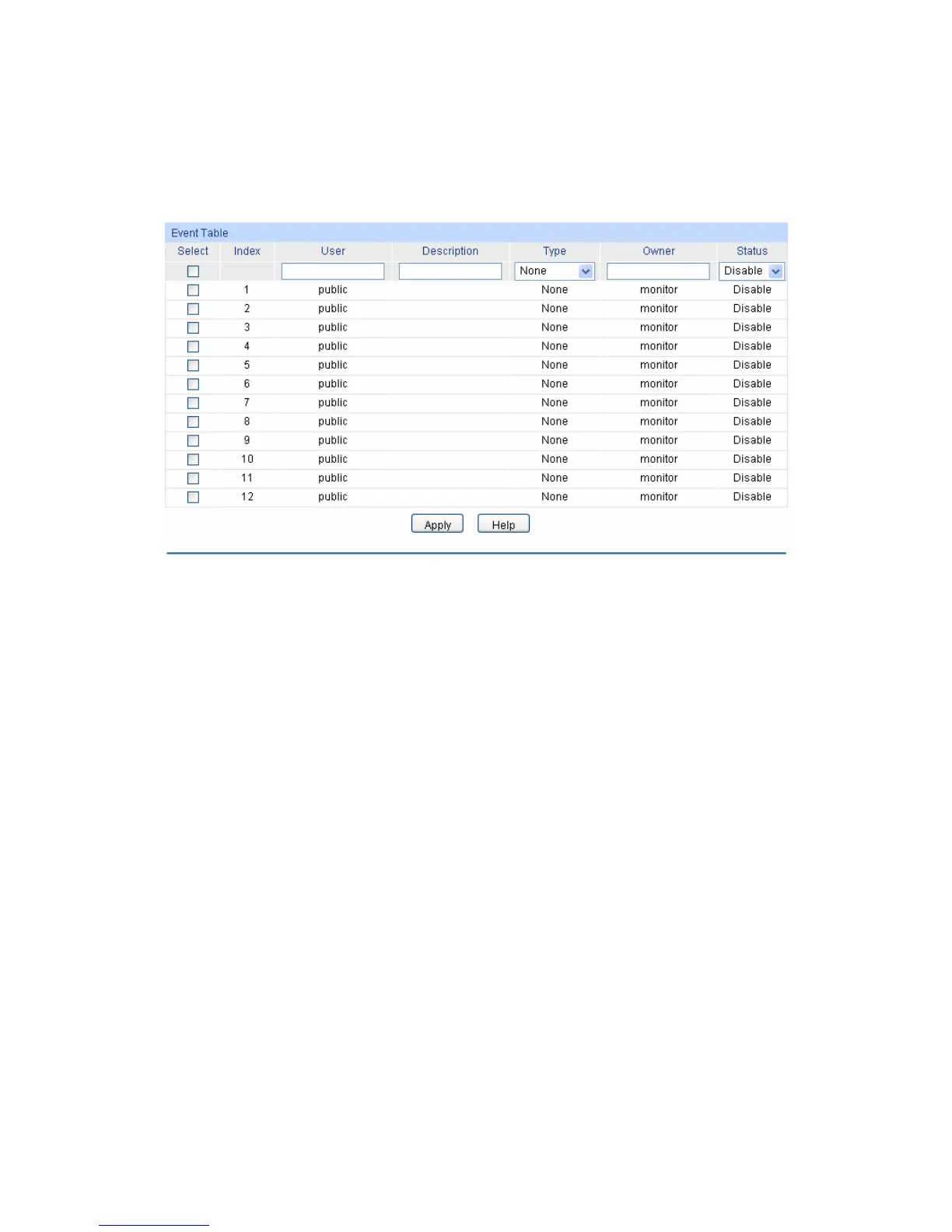

Figure 12-10 Event Config
The following entries are displayed on this screen:
 Event Table
Select: Select the desired entry for configuration.
Index: Displays the index number of the entry.
User: Enter the name of the User or the community to which the
event belongs.
Description: Give a description to the event for identification.
Type: Select the event type, which determines the act way of the
network device in response to an event.
 None: No processing.
 Log: Logging the event.
 Notify: Sending trap messages to the management station.
 Log&Notify: Logging the event and sending trap messages
to the management station.
Owner: Enter the name of the device or user that defined the entry.
Status: Select Enable/Disable the corresponding event entry.
12.3.3 Alarm Config
On this page, you can configure Statistic Group and Alarm Group for RMON.
Choose the menu SNMP→RMON→Alarm Config to load the following page.
142

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
