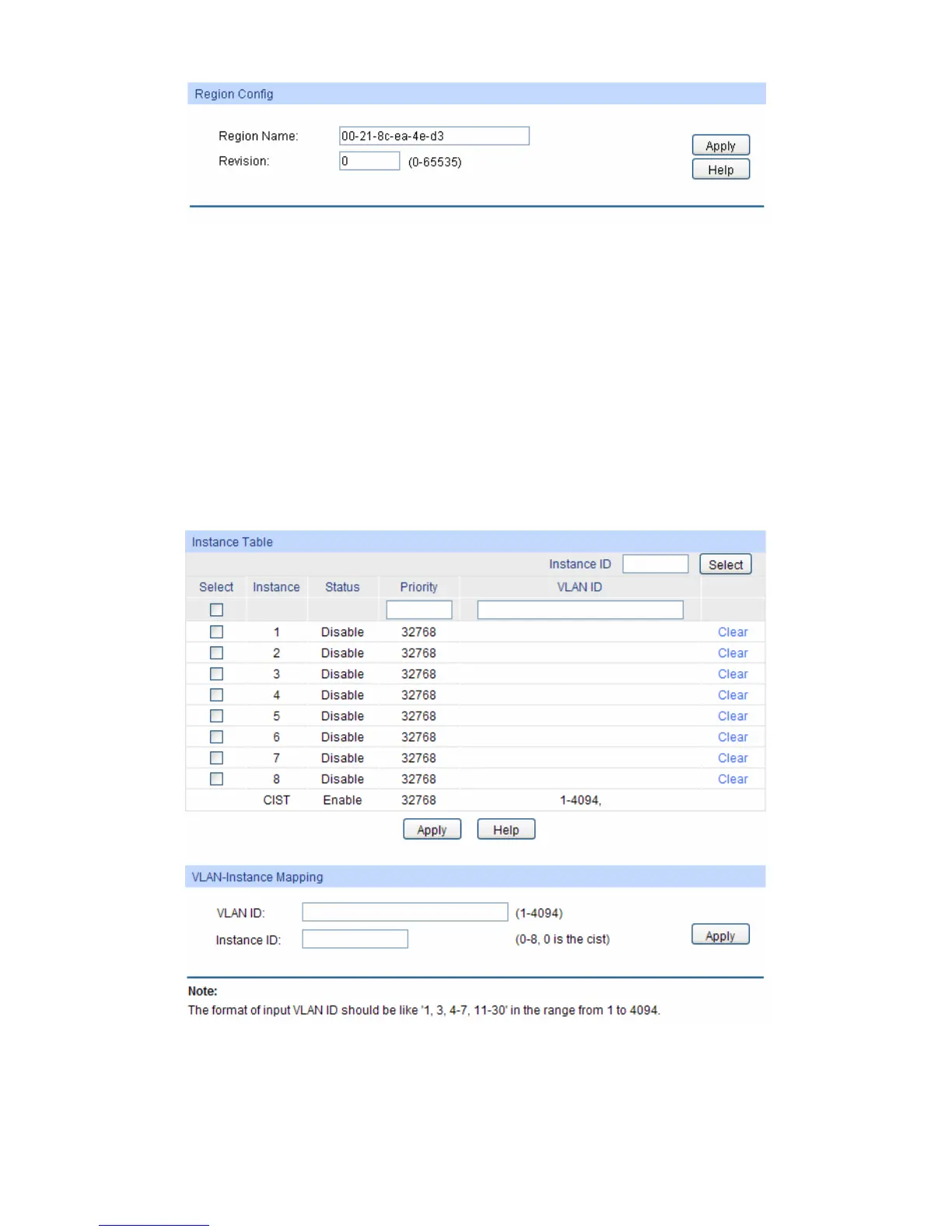

Figure 7-7 Region Config
The following entries are displayed on this screen:
 Region Config
Region Name: Create a name for MST region identification using up to 32 characters.
Revision: Enter the revision from 0 to 65535 for MST region identification.
7.3.2 Instance Config
Instance Configuration, a property of MST region, is used to describe the VLAN to Instance
mapping configuration. You can assign VLAN to different instances appropriate to your needs.
Every instance is a VLAN group independent of other instances and CIST.
Choose the menu Spanning Tree→MSTP Instance→Instance Config to load the following page.
Figure 7-8 Instance Config
71

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
