TP-Link TL-SG2216 User Manual

PoE Pr
iority: The priority levels include High, Middle and Low in descending
order. When the supply power exceeds the system power limit,
the PD linked to the port with lower priority will be disconnected.
Power Limit
(0.1w-30w):
Defines the max power the corresponding port can supply. Class1
represents 4w, Class2 represents 7w, Class3 represents 15.4w
and Class4 represents 30w.
Time Range: Select the time range for the PoE port to supply power. If No limit
is selected, the PoE port will supply power all the time.
PoE Profile: Select the profile you want to apply to the selected port. If a PoE
Profile is selected, the three attributes including PoE Status, PoE
Priority and Power Limit are not available.
Power (W): Displays the port's real time power supply.
Current (mA): Displays the port's real time current.
Voltage (V) Displays the port's real time voltage.
PD Class: Displays the class the linked PD (Powered Device) belongs to.
Power Status: Displays the port's real time power status.
11.1.2 PoE Profile
PoE (Power over Ethernet) Profile is a short cut for the configuration of the PoE port. You can
create some profiles to be applied to the ports. In a profile, the PoE status, PoE priority and Power
limit are configured.
Choose the menu PoE→PoE Config→Profile Profile to load the following page.

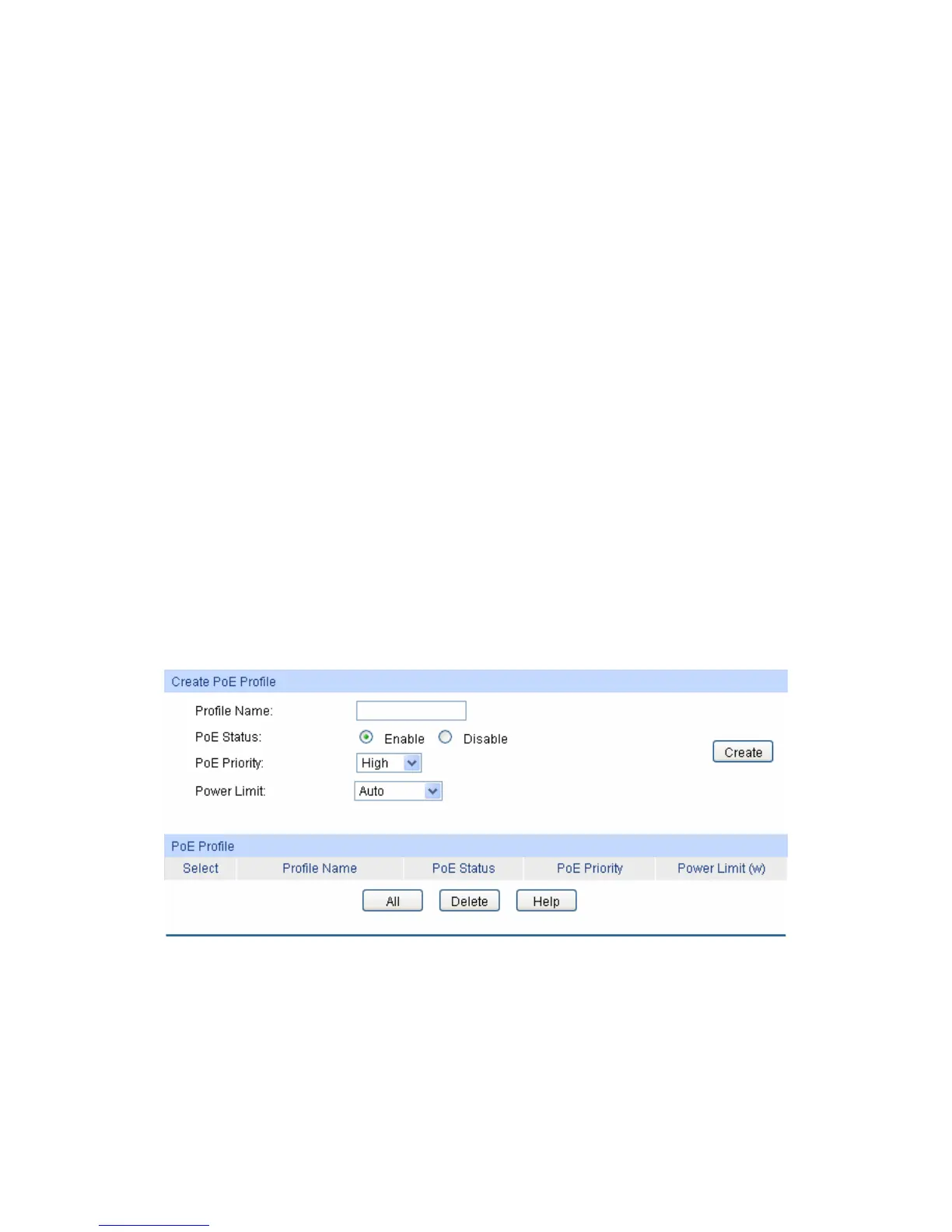

Figure 11-2 Profile Config
The following items are displayed on this screen:
 Create PoE Profile
Profile Name: Enter the name of the profile.
125

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
