Choose the
menu Maintenance→Log→Local Log to load the following page.

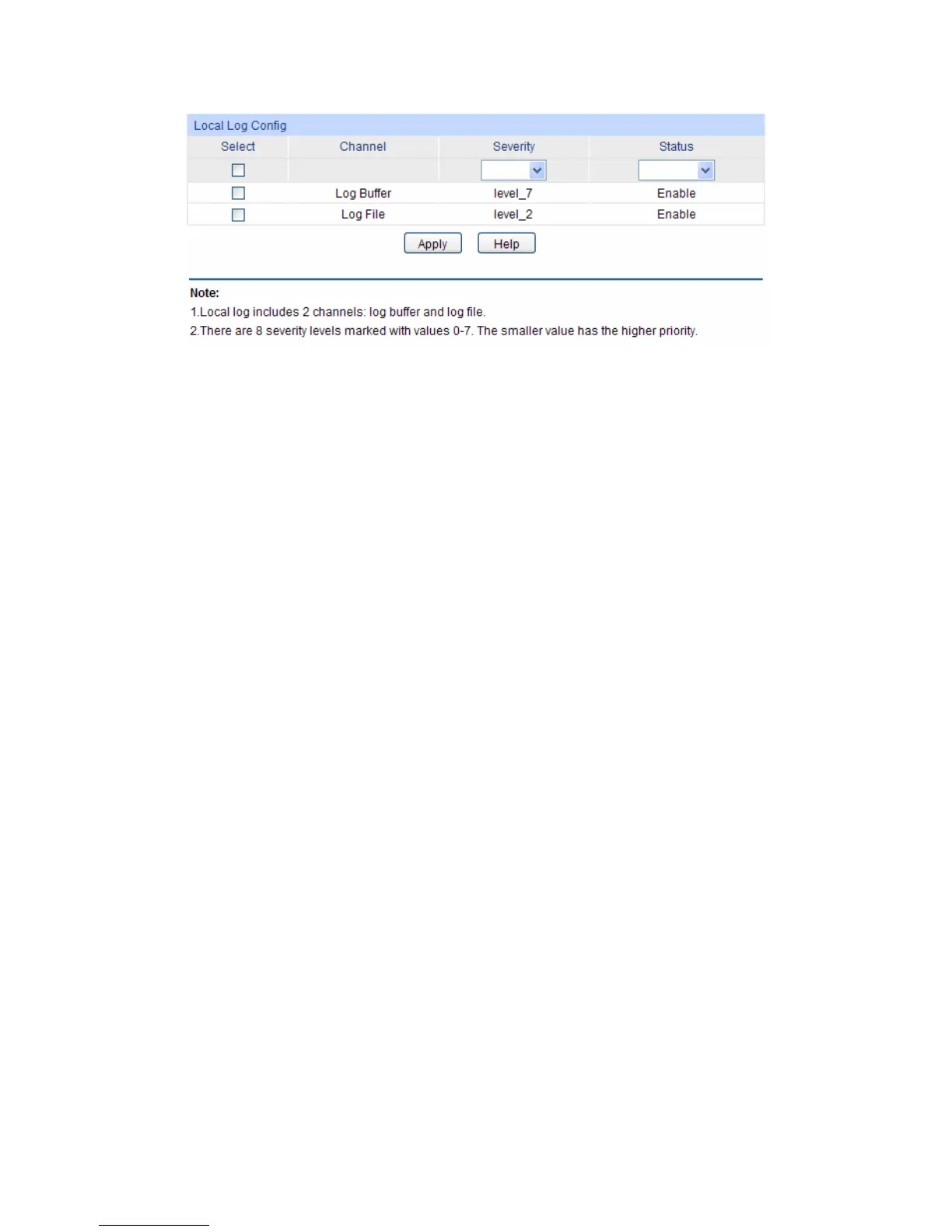

Figure 14-4 Local Log
The following entries are displayed on this screen:
 Local Log Config
Select: Select the desired entry to configure the corresponding local log.
Log Buffer: Indicates the RAM for saving system log. The inforamtion in the
log buffer is displayed on the Log Table page. It will be lost when
the switch is restarted.
Log File: Indicates the flash sector for saving system log. The inforamtion
in the log file will not be lost after the switch is restarted and can
be exported on the Backup Log page.
Severity: Specify the severity level of the log information output to each
channel. Only the log with the same or smaller severity level
value will be output.
Status: Enable/Disable the channel.
14.2.3 Remote Log
Remote log feature enables the switch to send system logs to the Log Server. Log Server is to
centralize the system logs from various devices for the administrator to monitor and manage the
whole network.
Choose the menu Maintenance→Log→Remote Log to load the following page.
163

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm

Summary

Safety and Package Information

Getting Started with Your Smart Switch

About this Guide and Switch Introduction

Overview of the guide, switch features, and appearance.

Logging into the Switch Management Interface

Step-by-step guide to access the switch's web management interface.

System Information and Settings

Configure system properties like description, time, IP address, and network parameters.

Core Switching and Network Features

Port Configuration and Control

Configure basic port settings like speed, duplex, flow control, and status.

VLAN Configuration for Network Segmentation

Segment the network using VLANs for improved traffic management and security.

Spanning Tree Protocol (STP) Configuration

Configure STP to prevent network loops and ensure topology stability.

Network Services and Security

Quality of Service (QoS) and Voice VLANs

Prioritize network traffic to ensure quality for voice and critical applications.

Access Control Lists (ACL) and Policies

Implement security policies to filter traffic and control network access.

Device Maintenance and Diagnostics

System Monitoring and Log Management

Monitor system performance (CPU/Memory) and manage logs for troubleshooting.

Device Diagnostics and Network Testing

Perform cable tests, loopback tests, Ping, and Tracert for diagnostics.
