TP-Link TL-SG2216 User Manual

Choose the
menu Spanning Tree→STP Security→TC Protect to load the following page.

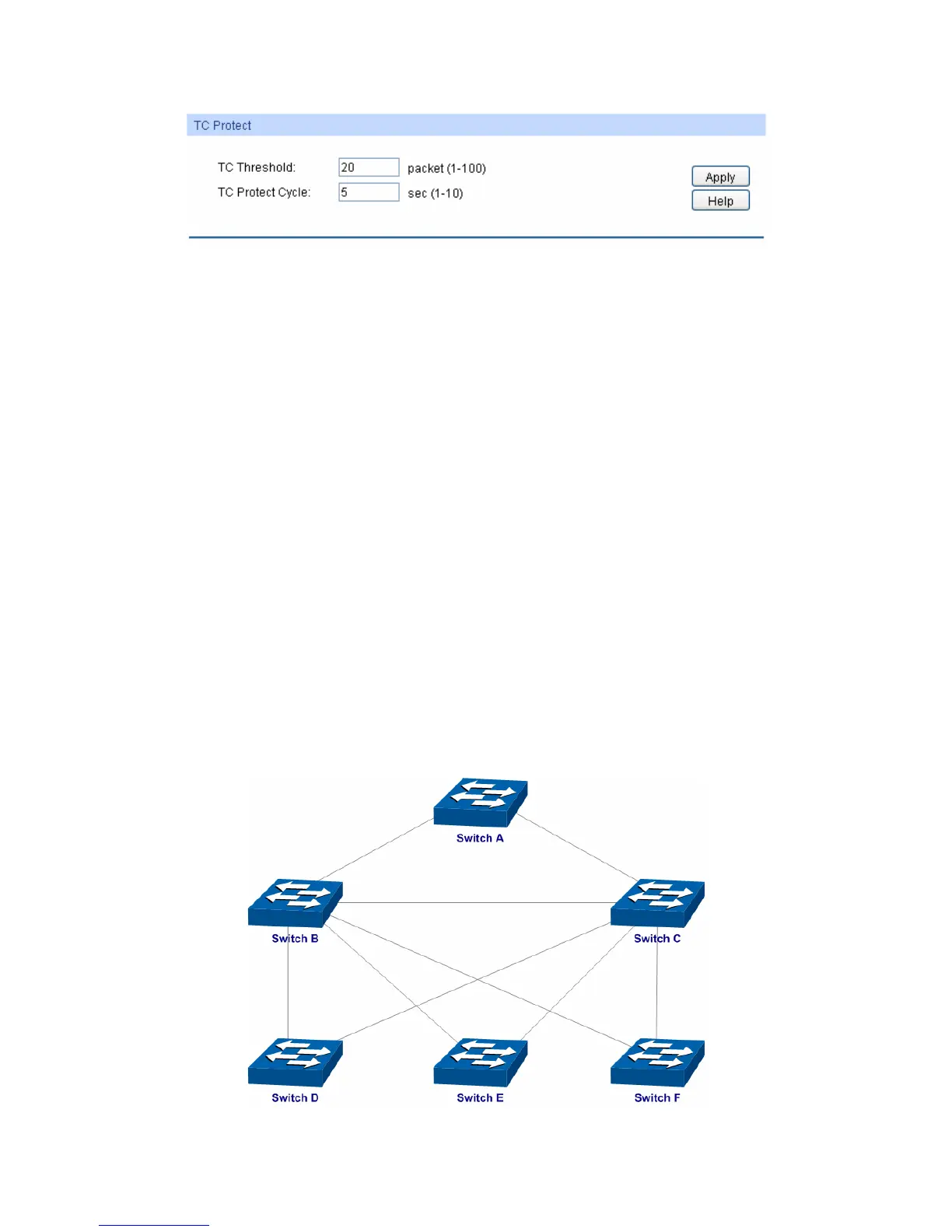

Figure 7-11 TC Protect
The following entries are displayed on this screen:
 TC Protect
TC Threshold: Enter a number from 1 to 100. It is the maximum number of the
TC-BPDUs received by the switch in a TC Protect Cycle. The
default value is 20.
TC Protect Cycle: Enter a value from 1 to 10 to specify the TC Protect Cycle. The
default value is 5.
7.5 Application Example for STP Function
 Network Requirements
 Switch A, B, C, D and E all support MSTP function.
 A is the central switch.
 B and C are switches in the convergence layer. D, E and F are switches in the access layer.
 There are 6 VLANs labeled as VLAN101-VLAN106 in the network.
 All switches run MSTP and belong to the same MST region.
 The data in VLAN101, 103 and 105 are transmitted in the STP with B as the root bridge. The
data in VLAN102, 104 and 106 are transmitted in the STP with C as the root bridge.
 Network Diagram
77

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
