Chapter 13 LLDP
Note:
Only TL-SG2424P supports LLDP function.
LLDP (Link Layer Discovery Protocol) is a Layer 2 protocol that is used for network devices to
advertise their own device information periodically to neighbors on the same IEEE 802 local area
network. The advertised information, including details such as device identification, capabilities
and configuration settings, is represented in TLV (Type/Length/Value) format according to the
IEEE 802.1ab standard, and these TLVs are encapsulated in LLDPDU (Link Layer Discovery
Protocol Data Unit). The LLDPDU distributed via LLDP is stored by its recipients in a standard MIB
(Management Information Base), making it possible for the information to be accessed by a
Network Management System (NMS) using a management protocol such as the Simple Network
Management Protocol (SNMP).
An IETF Standard MIB, as well as a number of vendor specific MIBs, have been created to
describe a network's physical topology and associated systems within that topology. However,
there is no standard protocol for populating these MIBs or communicating this information among
stations on the IEEE 802 LAN. LLDP protocol specifies a set. The device running LLDP can
automatically discover and learn about the neighbors, allowing for interoperability between the
network devices of different vendors. This protocol allows two systems running different network
layer protocols to learn about each other.
LLDP-MED (Link Layer Discovery Protocol for Media Endpoint Devices) is an extension of LLDP
intended for managing endpoint devices such as Voice over IP phones and network switches. The
LLDP-MED TLVs advertise information such as network policy, power via MDI, inventory
management, and device location details.
The LLDP and LLDP-MED information can be used by SNMP applications to simplify
troubleshooting, enhance network management, and maintain an accurate network topology.
LLDPDU Format

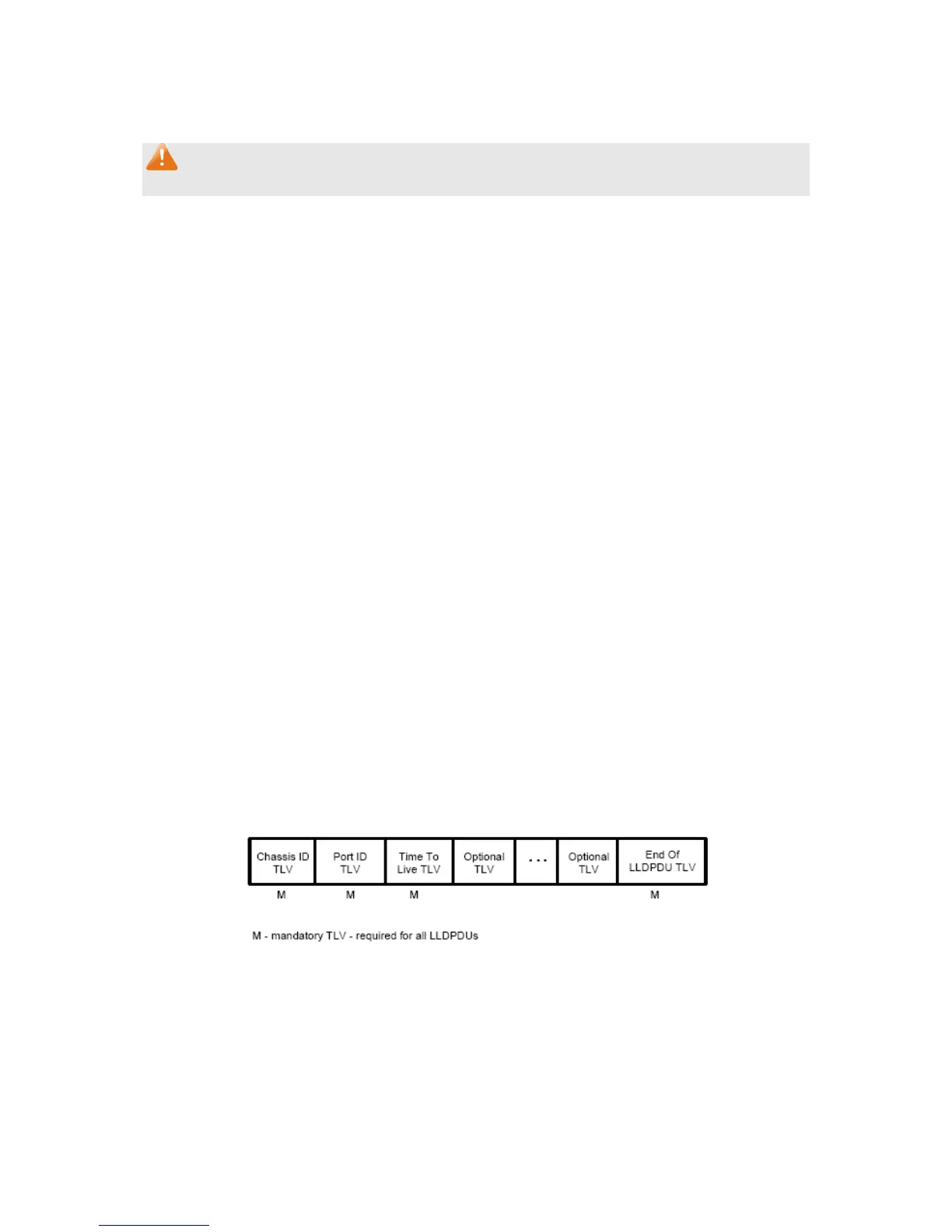

Each LLDPDU includes an ordered sequence of three mandatory TLVs followed by one or more
optional TLVs plus an End of LLDPDU TLV, as shown in the figure below. Chassis ID TLV, Port ID
TLV, TTL TLV and End TLV are the four mandatory TLVs for a LLDPDU. Optional TLVs provide
various details about the LLDP agent advertising them and they are selected by network
management.
The maximum length of the LLDPDU shall be the maximum information field length allowed by the
particular transmission rate and protocol. In IEEE 802.3 MACs, for example, the maximum
LLDPDU length is the maximum data field length for the basic, untagged MAC frame (1500
octets).
LLDP Working Mechanism
1) LLDP Admin Status
The transmission and the reception of LLDPDUs can be separately enabled for every port, making
it possible to configure an implementation to restrict the port either to transmit only or receive only,
145
