TP-Link TL-SG2216 User Manual

PoE Config, mainly for PoE attributes configura
tion, is implemented on PoE Config and PoE
Profile pages.
11.1.1 PoE Config
On this page, you can configure the parameters to implement PoE function.
Choose the menu PoE→PoE Config→PoE Config to load the following page.

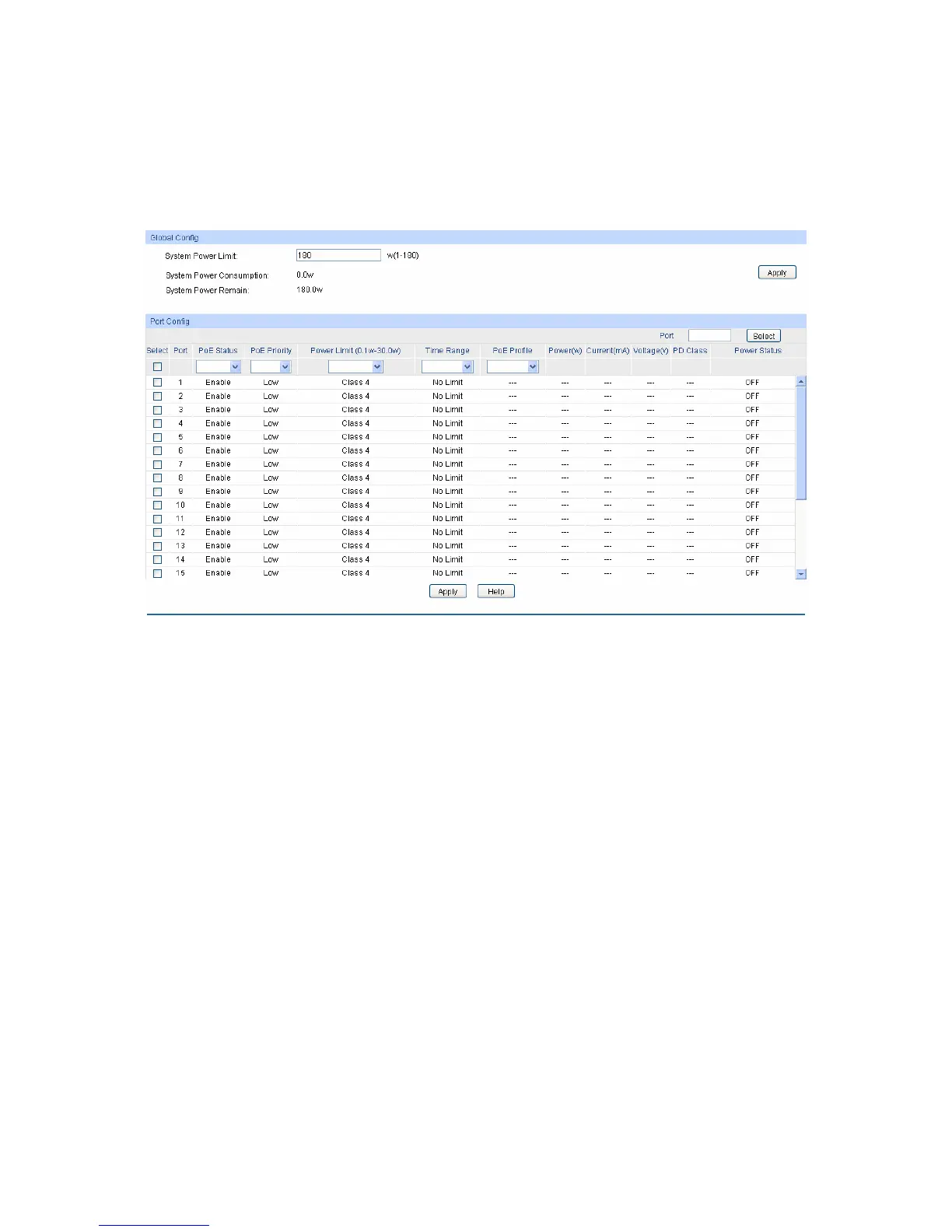

Figure 11-1 PoE Config
The following items are displayed on this screen:
 Global Config
System Power Limit: Specify the max power the PoE switch can supply.
System Power
Consumption:
Displays the PoE switch's real time system power consumption.
System Power
Remain:
Displays the PoE switch's real time remaining system power.
 Port Config
Port Select: Click the Select button to quick-select the corresponding entry
based on the port number you entered.
Select: Select the desired port to configure its parameters.
Port: Displays the port number.
PoE Status: Select to disable/enable the PoE feature for the corresponding
port. If set enable, the corresponding port can supply power to the
linked PD (Powered Device).
124

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
