TP-Link TL-SG2216 User Manual

Chapter 10 ACL
10.1 ACL Config
An ACL may contain a number of rules, and each rule specifies a different package range. Packets
are matched in match order. Once a rule is matched, the switch processes the matched packets
taking the operation specified in the rule without considering the other rules, which can enhance
the performance of the switch.
The ACL Config function can be implemented on ACL Summary, ACL Create, MAC ACL,
Standard-IP ACL and Extend-IP ACL pages.
10.1.1 ACL Summary
On this page, you can view the current ACLs configured in the switch.
Choose the menu ACL→ACL Config→ACL Summary to load the following page.

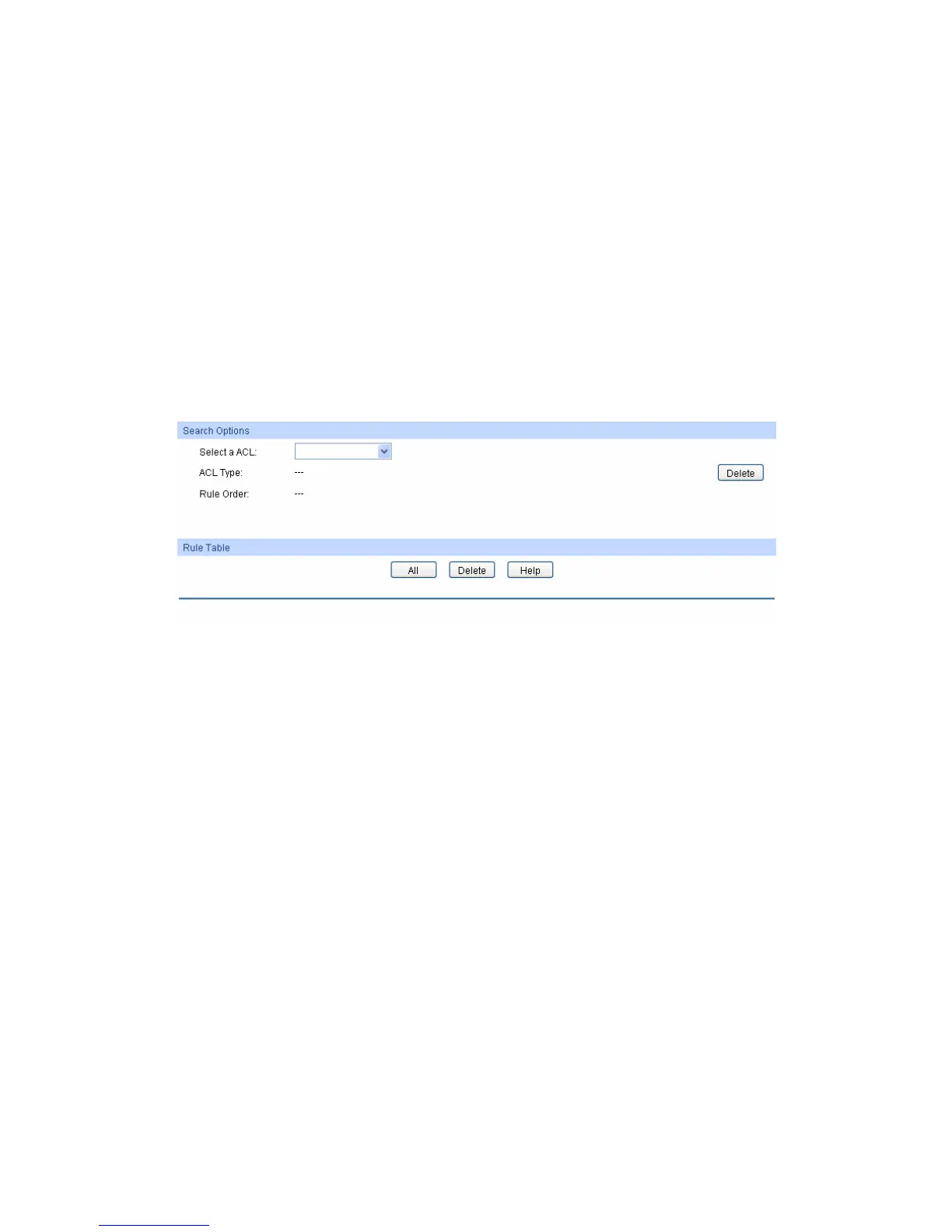

Figure 10-1 ACL Summary
The following entries are displayed on this screen:
 Search Option
Select ACL: Select the ACL you have created
ACL Type: Displays the type of the ACL you select.
Rule Order: Displays the rule order of the ACL you select.
 Rule Table
Display the rule table of the ACL you have selected. Here you can edit the rules, view the details of
them, and move them up and down.
10.1.2 ACL Create
On this page you can create ACLs.
Choose the menu ACL→ACL Config→ACL Create to load the following page.
11
3

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
