TP-Link TL-SG2216 User Manual

Index: Displays the index of the time-rang
e.
Time-Range Name: Displays the name of the time-range.
Slice: Displays the time-slice of the time-range.
Mode: Displays the mode the time-range adopts.
Operation: Click Edit to modify this time-range and click Detail to display the
complete information of this time–range.
11.2.2 PoE Time-Range Create
On this page you can create time-ranges.
Choose the menu PoE→PoE Time-Range→PoE Time-Range Create to load the following page.

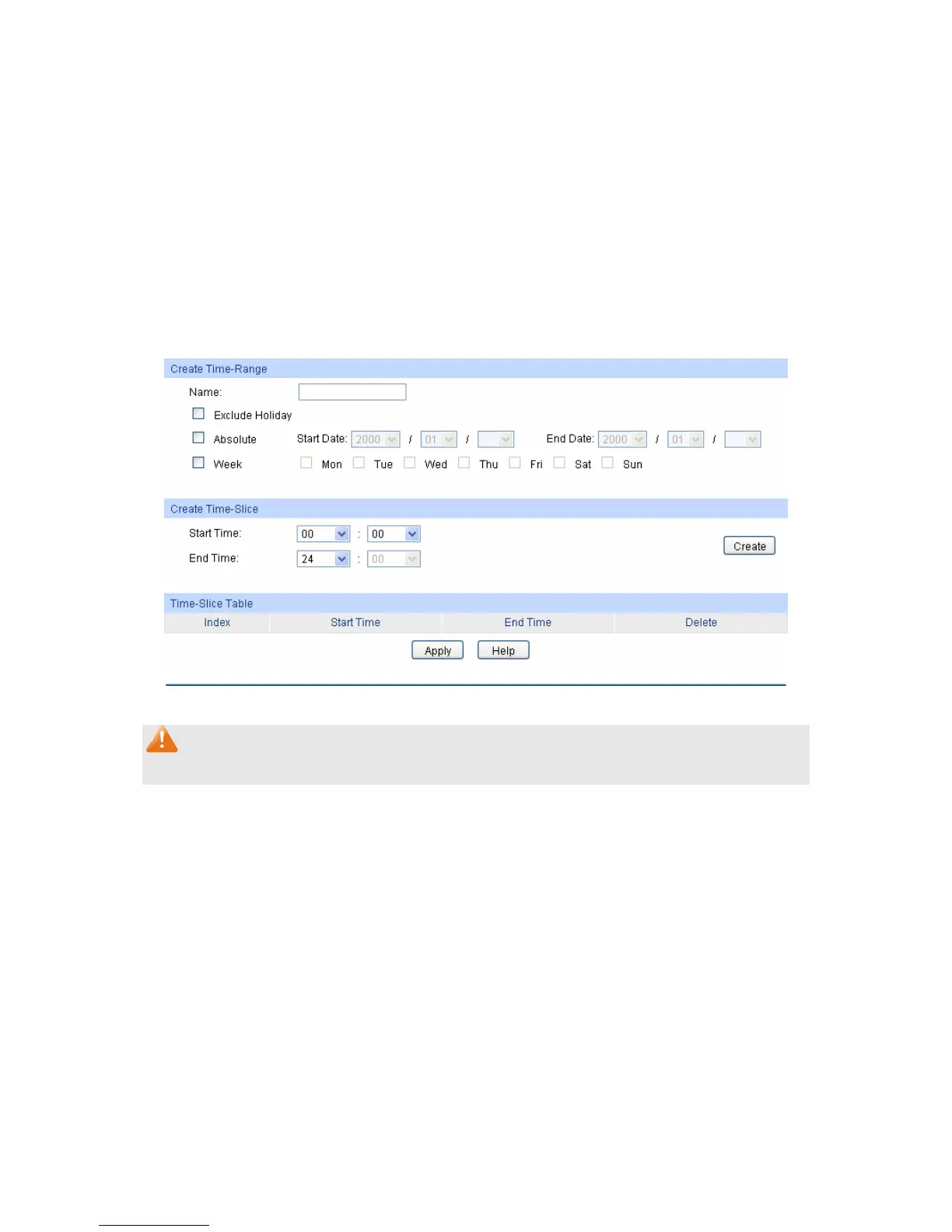

Figure 11-4 Time-Range Create
Note:
To successfully configure time-ranges, please firstly specify time-slices and then time-ranges.
The following items are displayed on this screen:
 Create Time-Range
Name: Enter the name of the time-range for time identification.
Exclude Holiday: Select Exclude Holiday, and the port based on this time-range
may not supply power when the system time is within the holiday
Absolute: Select Absolute to configure absolute time-range. The port based
on this time-range will supply power based on this time-range
when the system time is within the absolute time-range.
Week: Select Week to configure week time-range. The port based on this
time-range will supply power based on this time-range when the
system time is within the week time-range.
 Create Time-Slice
Start Time: Set the start time of the time-slice.
127

TP-Link TL-SG2216 Specifications

General

Jumbo frames	10000
Forwarding rate	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	4 MB
Supported data transfer rates	10/100/1000 Mb/s
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply included	-
Form factor	1U
Certification	CE, FCC, RoHS
Product color	Black
Minimum system requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cabling technology	10BASE-T/100BASE-TX/1000Base-T
Package depth	250 mm
Package width	528 mm
Package height	80 mm
Package weight	2600 g

Weight and Dimensions

Depth	180 mm
Width	440 mm
Height	44 mm
