8
Chapter 2
Set Up Internet Connection
2. 1. Position Your Access Point
• The product should not be located in a place where it will be exposed to moisture or
excessive heat.
• Place the access point in a location where it can be connected to various devices as
well as to a power source.
• Make sure the cables and power cord are safely placed out of the way so they do not
create a tripping hazard.
• The access point can be placed on a shelf or desktop.
• Keep the access point away from devices with strong electromagnetic interference,
such as Bluetooth devices, cordless phones and microwaves.

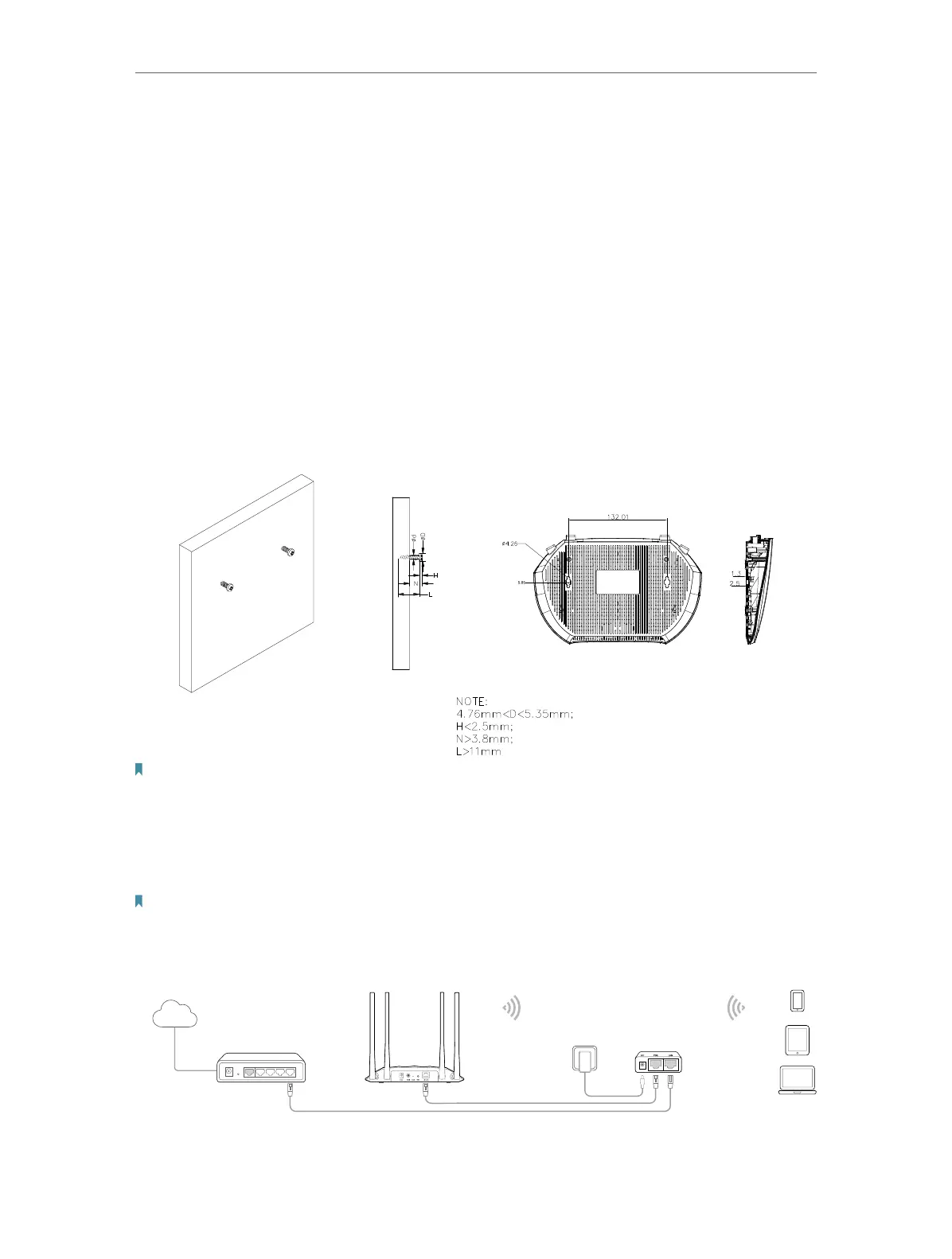

• Generally, the access point is placed on a horizontal surface, such as on a shelf or
desktop. The device also can be mounted on the wall as shown in the following figure.
Note:
The diameter of the screw head, 4.76 mm < D < 5.35 mm, and the distance of two screws is 132 mm. The screw that
project from the wall need around 3.8 mm based, and the length of the screw need to be at least 11 mm to withstand the
weight of the product.
• If the access point is located far from a power outlet, you can power the device with
the provided passive PoE injector.
Note:
The passive PoE injector supports a cable length up to 30 meters, but the value may vary due to the environment.
Power on via Passive PoE Injector
Passive PoE InjectorExisting Router
Access Point
Internet
To Next Page
