TP-Link TL-WA1801 User Manual

24
Chapter 4
Wireless Settings
5. Click SAVE .

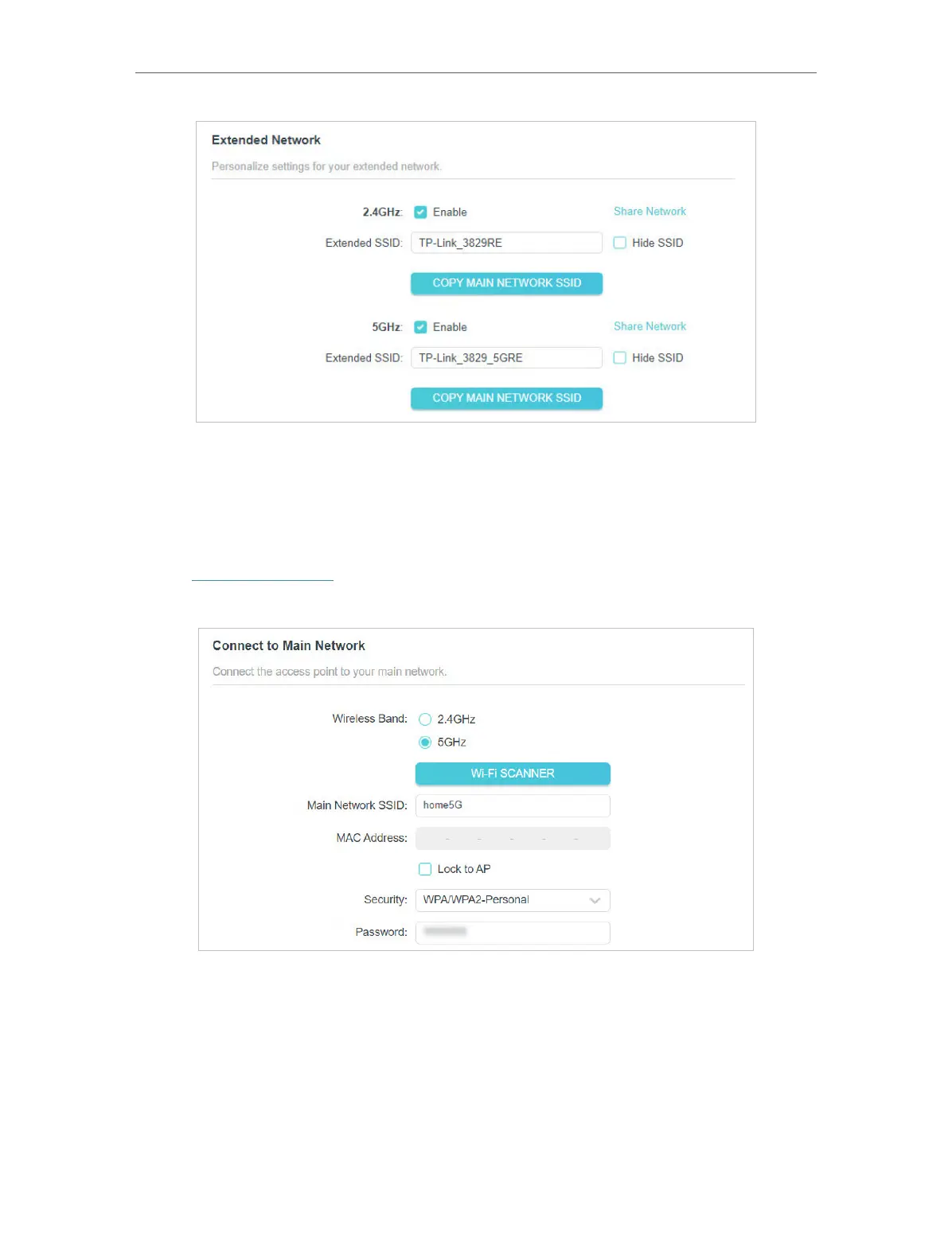

4. 1. 3. Client Mode
When the device works in Client mode, you can connect to another network.
1. Visit http://tplinkap.net, and log in with the password you set for the access point.
2. Go to Wireless > Wireless Settings.
3. Select the 2.4GHz or 5GHz band.
4. Click Wi-Fi SCANNER to find and select the network to connect. Main network SSID
and MAC address will be automatically filled in.
5. (Optional) If you want to lock the connection to the specified AP, enable Lock to AP.
The access point will not switch connection to other APs even if they use the same
network name and password as the specified one.
6. Enter the network password.

TP-Link TL-WA1801 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	1201 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Security algorithms	SNMP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Service Set Identifier (SSID) features	Multiple SSIDs
Supported protocols	IPv4, IPv6
Ethernet LAN (RJ-45) ports	1
Input current	0.375 A
DC voltage range	48 V
Power over Ethernet (PoE) type supported	Passive PoE
Placement	Table
Product color	White
Antenna type	External
Antennas quantity	4
Cables included	LAN (RJ-45)
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	145.5 mm
Width	225 mm
Height	37 mm
