TP-Link TL-WA1801 User Manual

4
Chapter 1
Get to Know About Your Access Point

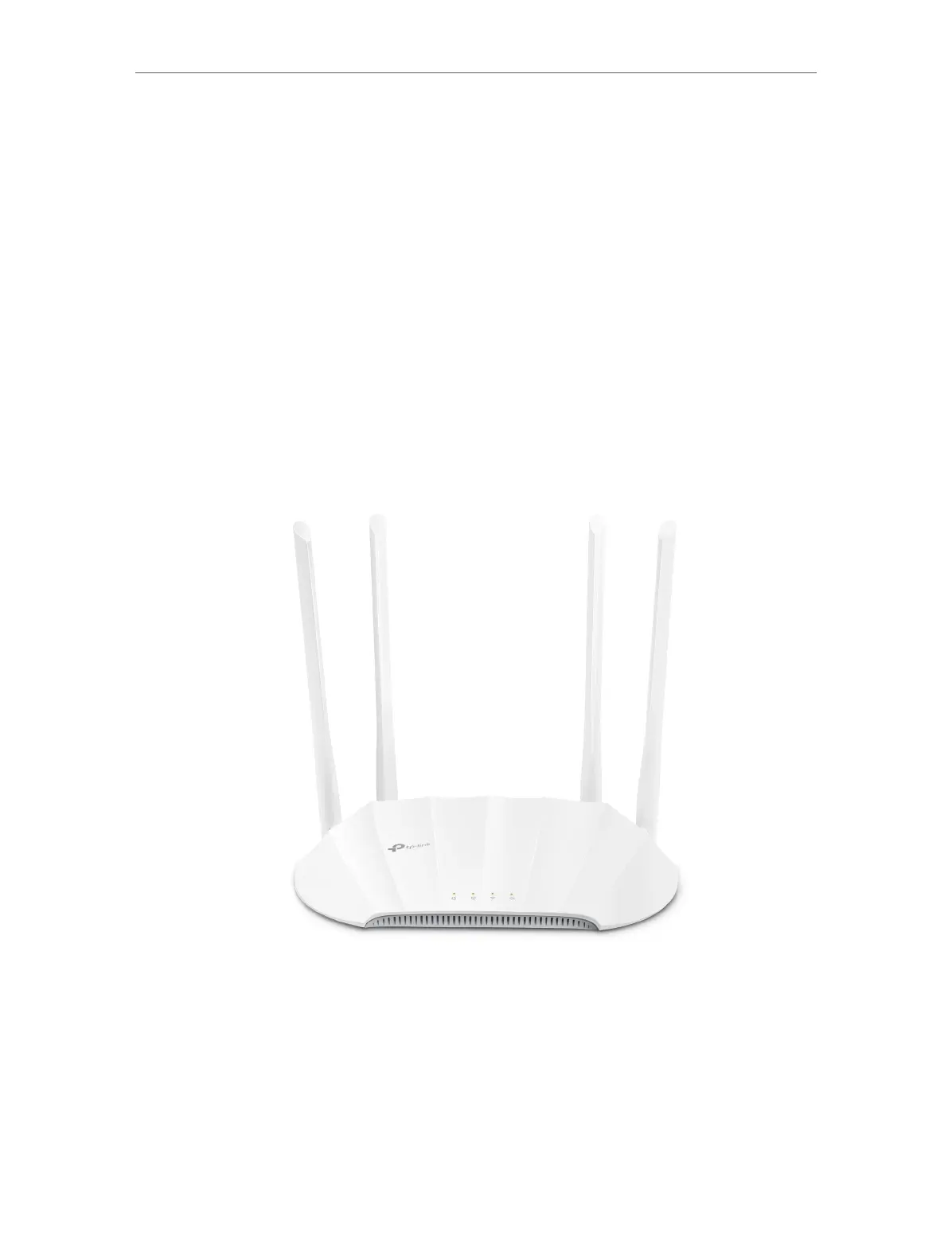

1. 1. Product Overview
The TP-Link access point, with multiple operation modes, is designed to establish or
expand a scalable high-speed wireless network or to connect your Ethernet enabled
device to a wireless network, such as the game console, digital media adapter, printer,
or network attached storage device. The access point supports a host of different
functions that make your wireless networking experience more flexible than ever
before. Now, you can enjoy a better internet experience when downloading, gaming,
video streaming or with any other application that you may wish to use.
1. 2. Panel Layout
1. 2. 1. Top View
The access point’s LEDs (view from left to right) are located on the top panel. You can
check the access point’s working status by following the LED Explanation table.

TP-Link TL-WA1801 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	1201 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Security algorithms	SNMP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Service Set Identifier (SSID) features	Multiple SSIDs
Supported protocols	IPv4, IPv6
Ethernet LAN (RJ-45) ports	1
Input current	0.375 A
DC voltage range	48 V
Power over Ethernet (PoE) type supported	Passive PoE
Placement	Table
Product color	White
Antenna type	External
Antennas quantity	4
Cables included	LAN (RJ-45)
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	145.5 mm
Width	225 mm
Height	37 mm
