Chapter 2. Hardware Installation
2.1. The Front Panel
The front panel of the TL-WA5110G consists of several LED indicators, which is designed to
indicate connections. View from left to right. Table 2-1 describes the LEDs on the front panel of
the router.

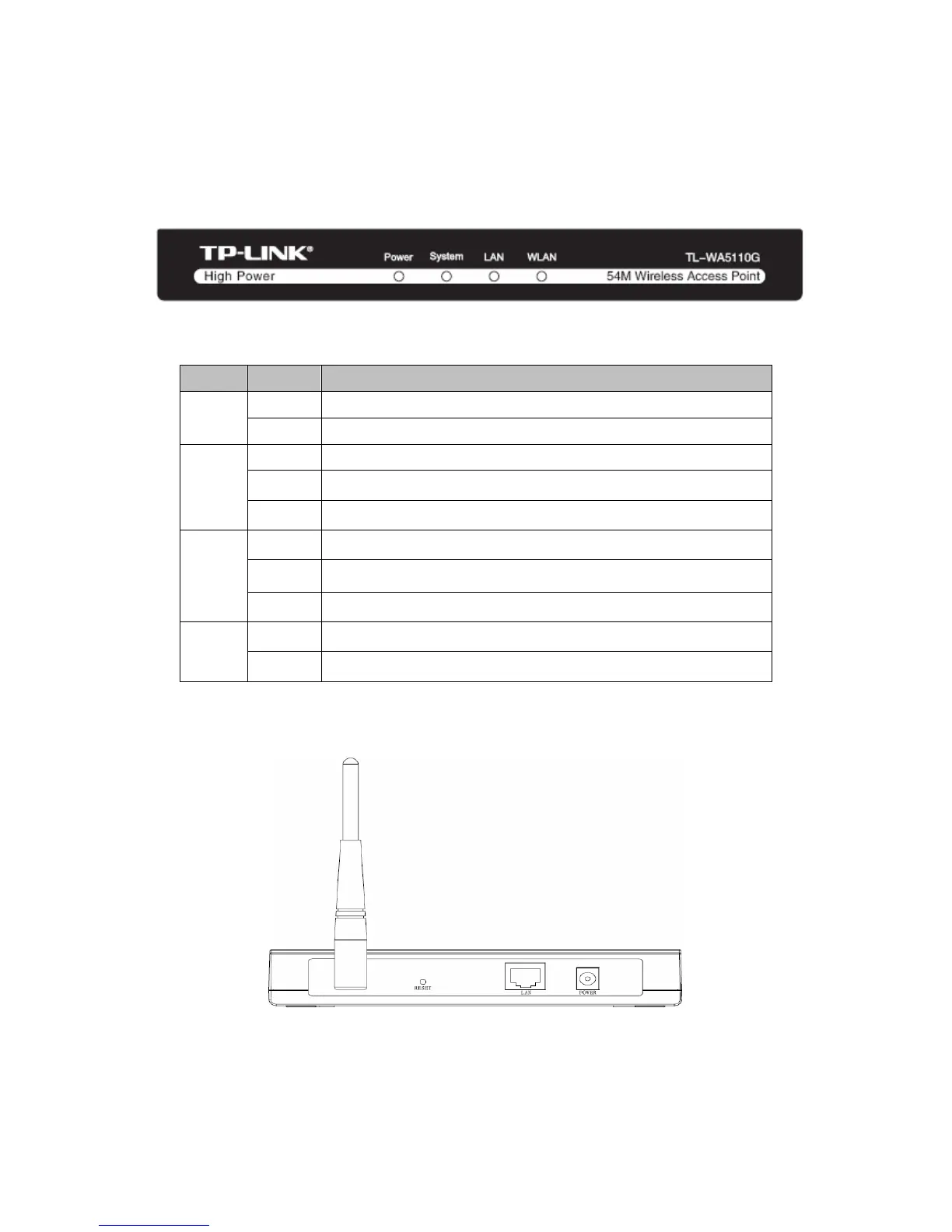

Figure 2-1 Front Panel sketch
LED Explanation：
Name Status Indication
Off No Power
Power
On Power on
Off The AP has a hardware error
On
The AP is initialising
System
Flashing
The AP is working properly
Off
There is no device linked to the corresponding port
On
There is a device linked to the corresponding port but no activity
LAN
Flashing
There is an active device linked to the corresponding port
Off
The Wireless Radio function is disabled
WLAN
Flashing
The Wireless Radio function is enabled
Table 2-1
2.2. The Rear Panel
Figure 2-2 Rear Panel sketch
¾ Wireless antenna
¾ Factory Default Reset button
¾ There are three ways to reset the AP's factory defaults:

TP-Link TL-WA5110G Specifications

General

2.4 GHz	Yes
Modulation	BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Receiver sensitivity	54M: -74dBm 48M: -76dBm 36M: -81dBm 12M: -89dBm 11M:-90dBm 9M:-91dBm 5.5M:-92dBm 1M:-94dBm
Maximum data transfer rate	54 Mbit/s
Frequency range	2400 - 2483.5 MHz
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11b, IEEE 802.11g
Non-operating relative humidity (non-condensing)	5 - 95 %
Antenna gain level (max)	4 dBi
Internal	No
Certification	CE FCC
Supported network protocols	PPPoE, IP
Ethernet LAN (RJ-45) ports	1
Output power description	12 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	165 x 108 x 28 mm
