TP-Link TL-WA5110G User Manual

46
4. Click the Save button to save this entry.
To add additional entries, repeat steps 1-4.
When finished, click the Return button to return to the MAC Address Filtering page.
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled.
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
Click the Next button to go to the next page and click the Previous button to return to the
previous page.

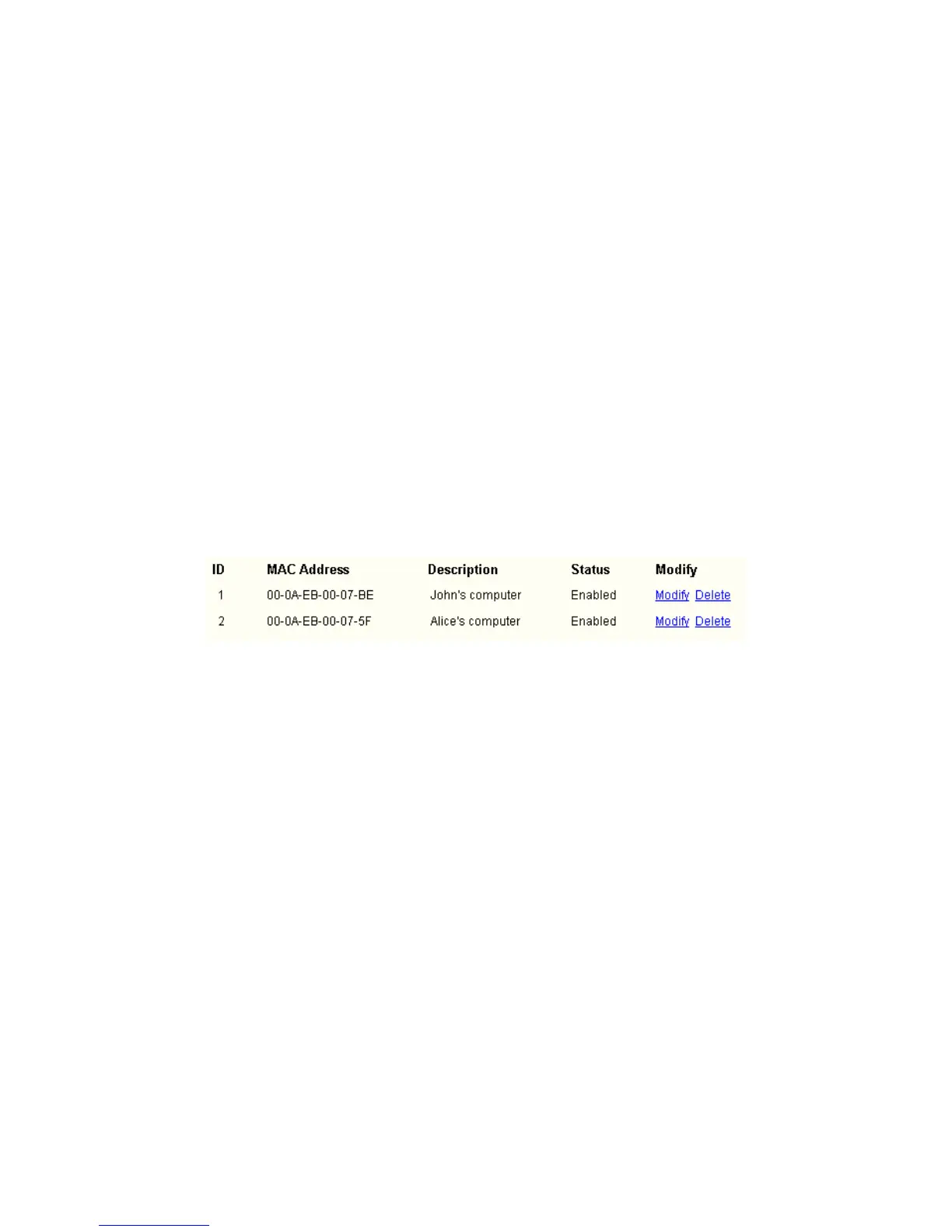

Fox example: If you want to block the PC with MAC addresses 00-0A-EB-00-07-BE and
00-0A-EB-00-07-5F to access the Internet, first, enable the Firewall and MAC Address Filtering
on the Firewall page, then, you should specify the Default MAC Address Filtering Rule "Deny
these PC(s) with effective rules to access the Internet" on the Firewall page and the following
MAC address filtering list on this page:
4.10.5 Advanced Security
Using Advanced Security page (shown in Figure 4-43), you can protect the router from being
attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood from LAN.

TP-Link TL-WA5110G Specifications

General

2.4 GHz	Yes
Modulation	BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Receiver sensitivity	54M: -74dBm 48M: -76dBm 36M: -81dBm 12M: -89dBm 11M:-90dBm 9M:-91dBm 5.5M:-92dBm 1M:-94dBm
Maximum data transfer rate	54 Mbit/s
Frequency range	2400 - 2483.5 MHz
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11b, IEEE 802.11g
Non-operating relative humidity (non-condensing)	5 - 95 %
Antenna gain level (max)	4 dBi
Internal	No
Certification	CE FCC
Supported network protocols	PPPoE, IP
Ethernet LAN (RJ-45) ports	1
Output power description	12 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	165 x 108 x 28 mm
