TP-Link TL-WA5110G User Manual

84
5.9.6 Reboot
This page allows you to reboot the AP on the screen below (Figure 5-30).

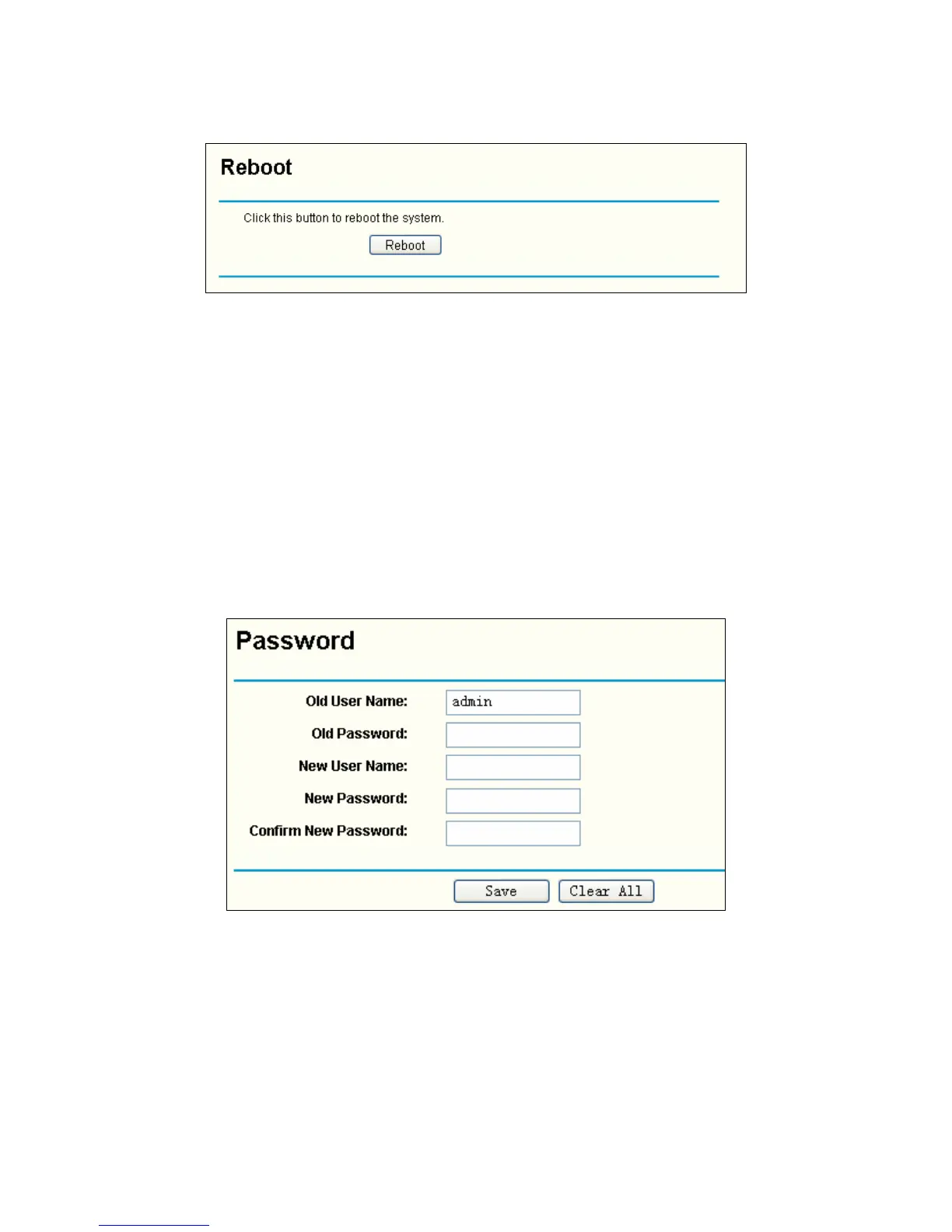

Figure 5-30 Reboot the AP
Click Reboot to reboot the AP.
Some settings of the AP will take effect only after rebooting, which include:
• Change LAN IP Address. (System will reboot automatically)
• Upgrade the firmware of the AP (system will reboot automatically).
• Restore the AP's settings to factory default (system will reboot automatically).
• DHCP service function.
• Static address assignment of DHCP server.
5.9.7 Password
This page allows you to change the factory default user name and password of the AP on the
screen below (Figure 5-31).
Figure 5-31 Password
It is strongly recommended that you change the factory default user name and password of the
AP to more secure ones because they control access to the AP’s web-based utility. All users who
try to access the AP's web-based utility or Quick Setup will be prompted for the AP's user name
and password.
)
Note:
The new user name and password must not exceed 14 characters in length and must not include
any space. Enter the new Password twice to confirm it.

TP-Link TL-WA5110G Specifications

General

2.4 GHz	Yes
Modulation	BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Receiver sensitivity	54M: -74dBm 48M: -76dBm 36M: -81dBm 12M: -89dBm 11M:-90dBm 9M:-91dBm 5.5M:-92dBm 1M:-94dBm
Maximum data transfer rate	54 Mbit/s
Frequency range	2400 - 2483.5 MHz
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11b, IEEE 802.11g
Non-operating relative humidity (non-condensing)	5 - 95 %
Antenna gain level (max)	4 dBi
Internal	No
Certification	CE FCC
Supported network protocols	PPPoE, IP
Ethernet LAN (RJ-45) ports	1
Output power description	12 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	165 x 108 x 28 mm
