54
4.13.3 Factory Defaults
This page (shown in Figure 4-53) allows you to restore the factory default settings for the router.

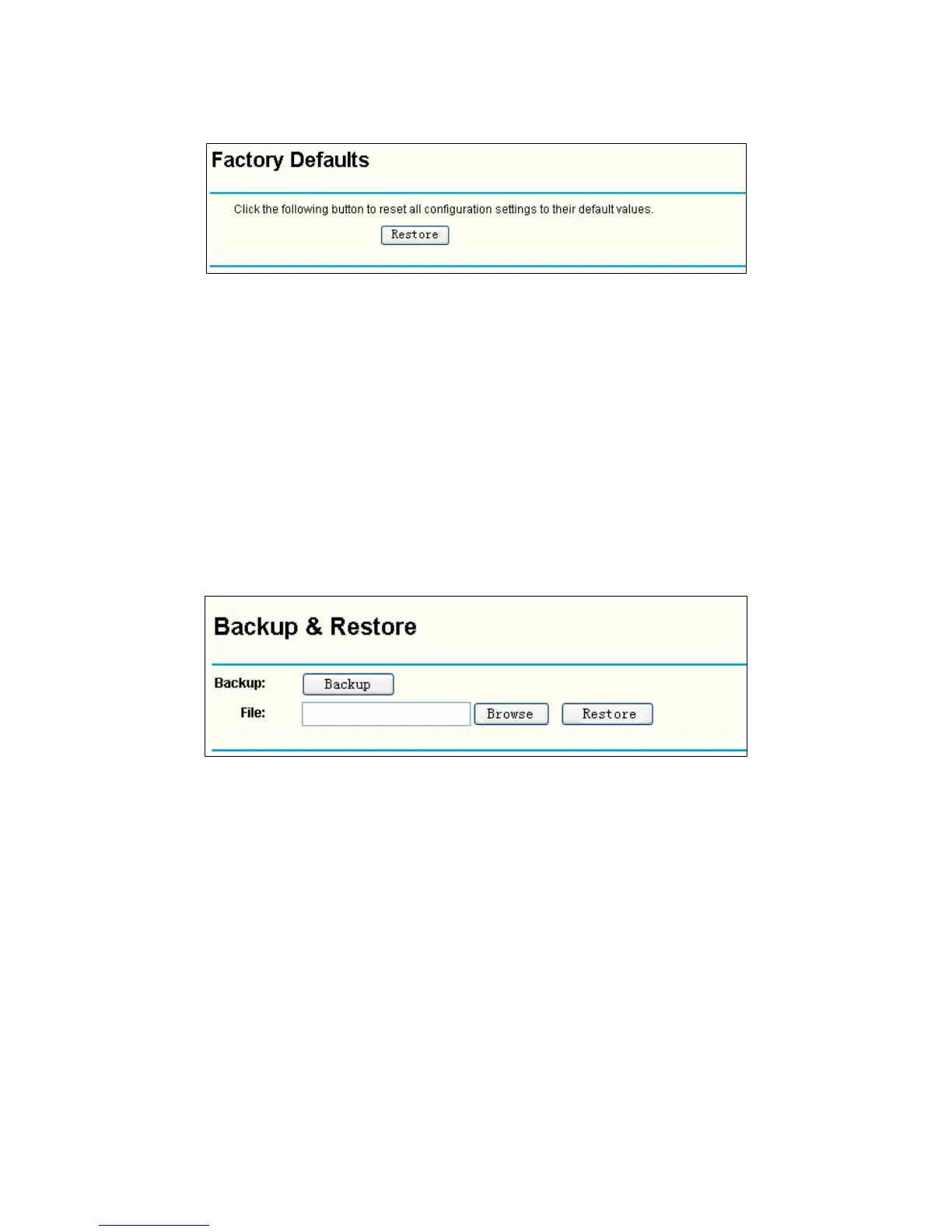

Figure 4-53 Restore Factory Default
Click the Restore button to reset all configuration settings to their default values.
• The default User Name: admin
• The default Password: admin
• The default IP Address: 192.168.1.1
• The default Subnet Mask: 255.255.255.0
)
Note:
All settings you have saved will be lost when the default settings are restored.
4.13.4 Backup & Restore
This page (shown in Figure 4-54) allows you to save current configuration of router as backup or
to restore the configuration file you saved before.
Figure 4-54 Backup & Restore Configuration
¾ Click the Backup button to save all configuration settings as a backup file to your local
computer.
¾ To restore the router's configuration, follow these instructions:
• Click the Browse button to select the backup file which you want to restore.
• Click the Restore button.
)
Note:
The current configuration will be covered by the uploading configuration file. The restoration
process lasts for 20 seconds and the router will restart automatically. Keep the router on during
the restoring process, to prevent any damage.
4.13.5 Ping Watch Dog
The Ping Watch Dog is dedicated for continuous monitoring of the particular connection to
remote host using the Ping tool. It makes this device continuously ping a user defined IP address
( it can be the internet gateway for example ). If it is unable to ping under the user defined
constraints, this device will automatically reboot.
