4. Adjust the direction of the antenna. Normally, upright is a good direction.
5. Connect the Ethernet Broadband Router to the TL-WA5110G AP. Power on the AP.
6. If you are connecting a desktop PC or laptop to your network, install the TP-LINK Wireless
Adapter on the PC.

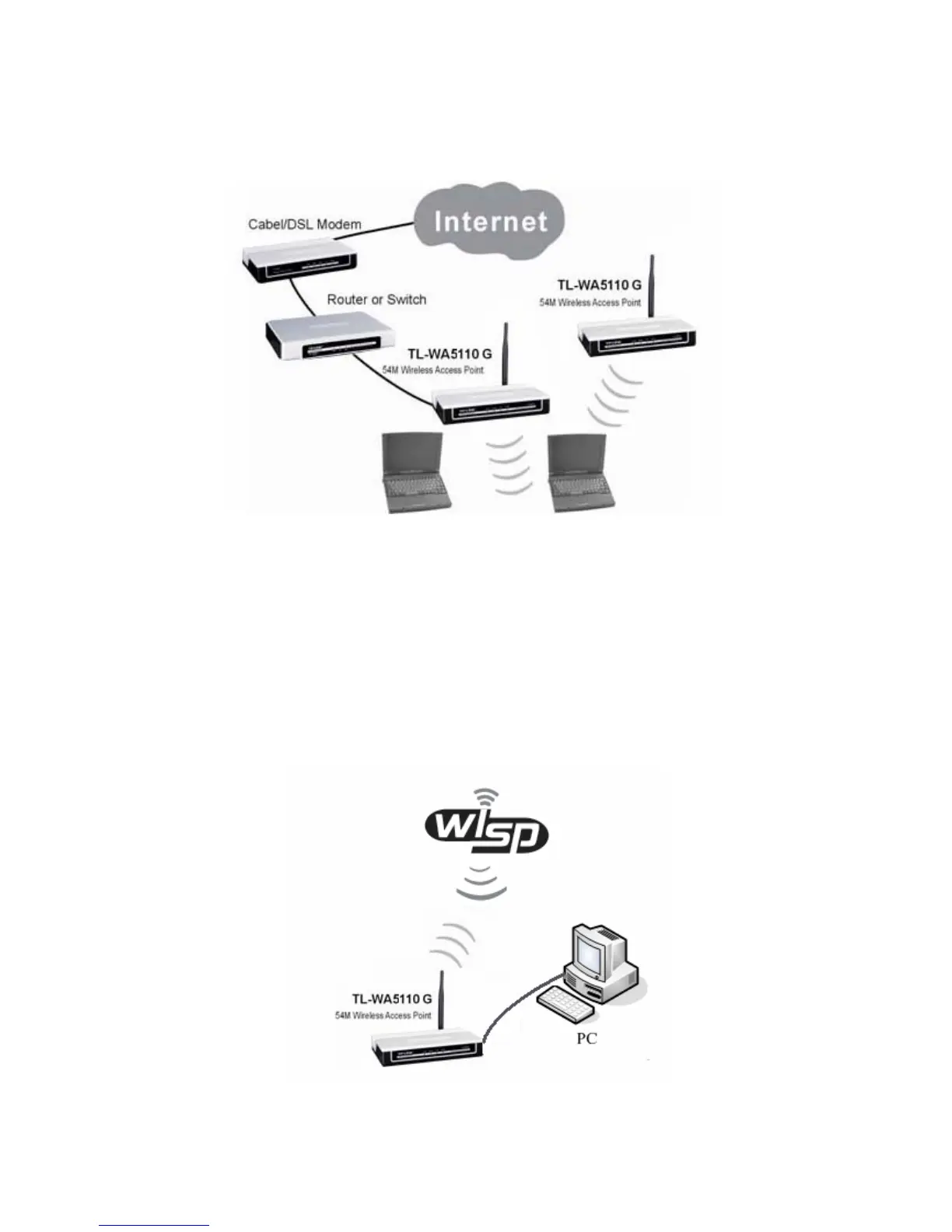

Figure 2-3
To establish an infrastructure network in AP Client Router mode as Figure 2-4, please take the
following steps:
1.
Make sure you are provided with wireless Internet service by your WISP(Wireless Internet
Service Provider).
2. Locate an optimum location for the AP. Try to place your AP in an appropriate position where
it can well receive the signal from WISP.
3. Connect the AP to the desktop PC.
4. Adjust the direction of the antenna. Normally, upright is a good direction.
5. Power on the AP and then you can configure the AP on the web-based page on your
computer.
Figure 2-4

TP-Link TL-WA5110G Specifications

General

2.4 GHz	Yes
Modulation	BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Receiver sensitivity	54M: -74dBm 48M: -76dBm 36M: -81dBm 12M: -89dBm 11M:-90dBm 9M:-91dBm 5.5M:-92dBm 1M:-94dBm
Maximum data transfer rate	54 Mbit/s
Frequency range	2400 - 2483.5 MHz
Maximum operating distance	50000 m
Compliance industry standards	IEEE 802.11b, IEEE 802.11g
Non-operating relative humidity (non-condensing)	5 - 95 %
Antenna gain level (max)	4 dBi
Internal	No
Certification	CE FCC
Supported network protocols	PPPoE, IP
Ethernet LAN (RJ-45) ports	1
Output power description	12 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	165 x 108 x 28 mm
