TP-Link TL-WA801ND User Manual

TL-WA801ND 300Mbps Wireless N Access Point User Guide
Chapter 4 Configure the Device
This Chapter describes how to configure your Access Point via the web-based management page.
The TL-WA801ND 300Mbps Wireless N Access Point is easy to configure and manage with the
Web-based (Internet Explorer, Netscape
®
Navigator, Firefox, Safari, Opera or Chrome)
management page, which can be launched on any windows, Macintosh or UNIX OS with a web
browser.
4.1 Login
Open your web browser. Type in IP address http://192.168.0.254 in the address field of web
browser and press Enter.

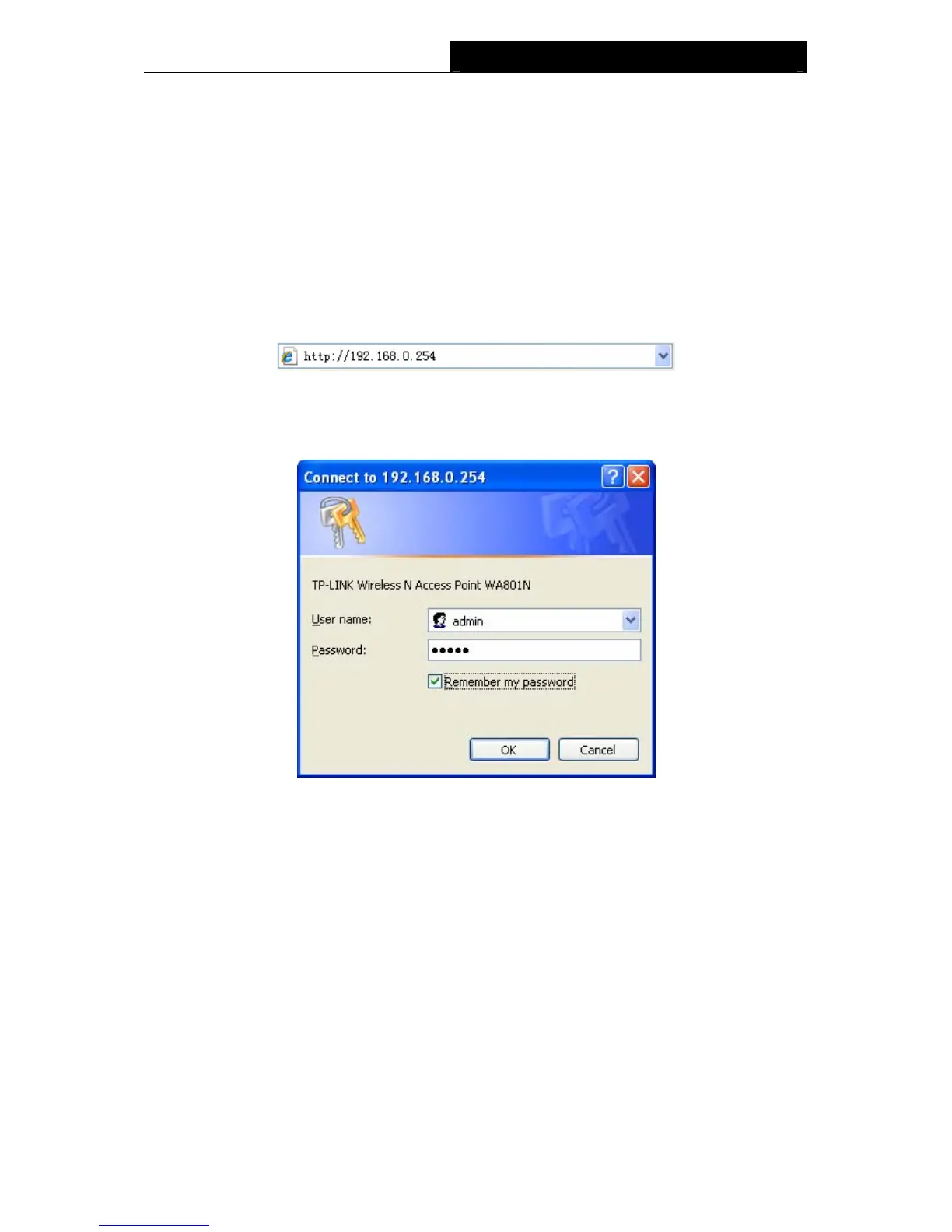

Figure 4-1 Login to the AP
Enter admin for the User Name and Password (both in lower case letters) in Figure 4-2 below.
Then click OK or press Enter.
Figure 4-2 Login Windows
)
Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go
to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
After a successful login, you can configure and manage the device. There are six main menus on
the leftmost column of the web-based management page: Status, WPS, Network, Wireless,
DHCP and System Tools. Submenus will be available after clicking one of the main menus. On
the right of the web-based management page lies the detailed explanations and instructions for
the corresponding page.
14

TP-Link TL-WA801ND Specifications

General

5 GHz	No
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Output current	0.6 A
Output voltage	9 V
Output power description	9VDC / 0.85A
Power over Ethernet (PoE) type supported	Passive PoE
Transmit power range	0 - 20 dBmW
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Placement	Table
Certification	CE, FCC, RoHS
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Package depth	223 mm
Package width	310 mm
Package height	70 mm
Package weight	600 g

Weight and Dimensions

Depth	125 mm
Width	181 mm
Height	36 mm
